ZTH 5221 KAA (968999180) - Husqvarna 52" Zero-Turn Mower (2006-04) EFI Engine Assembly Parts Diagram

52" Zero-Turn Mower

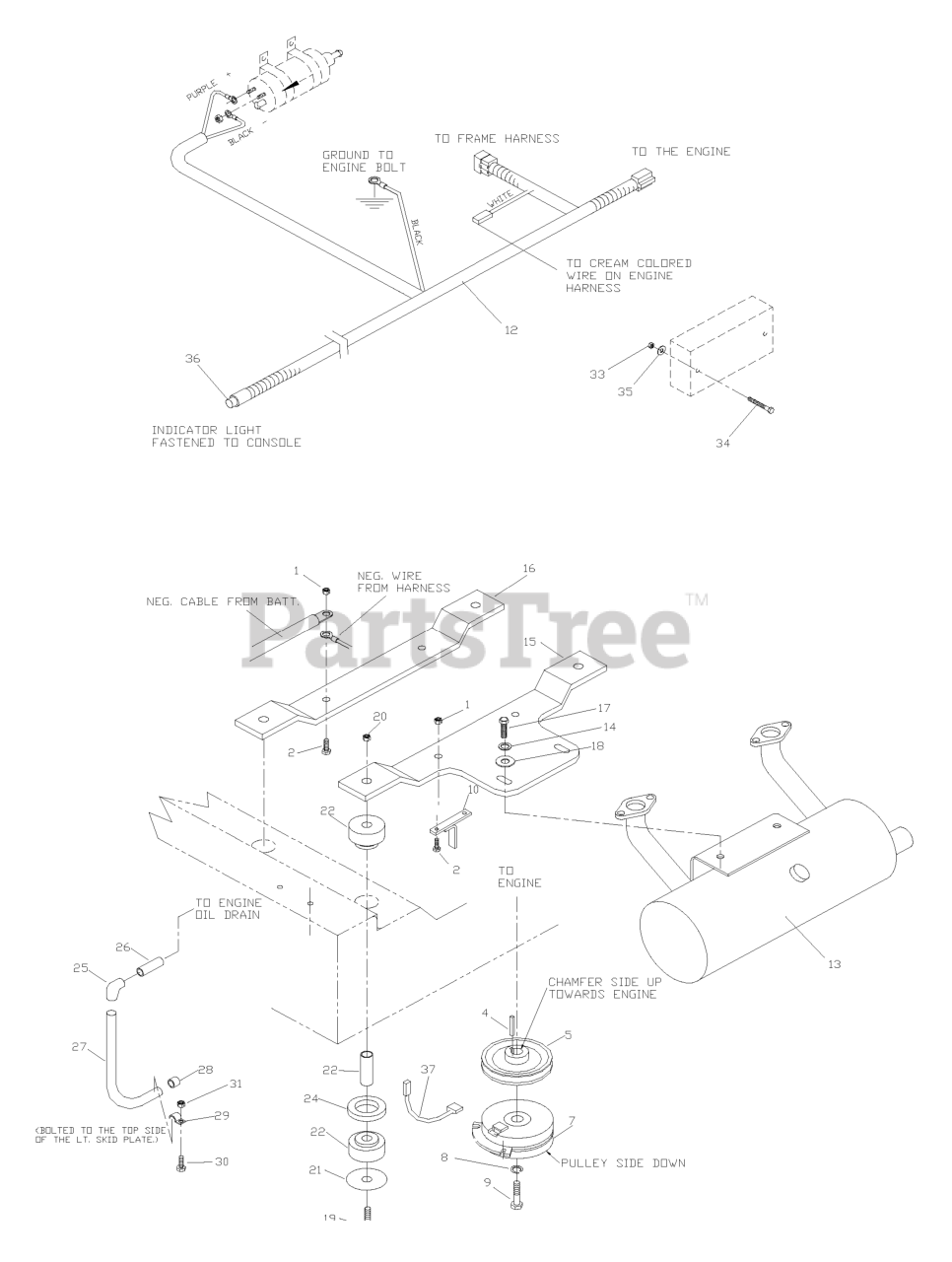

EFI Engine Assembly Parts Diagram

  • Title
1

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

4

Husqvarna 539100152

KEY 1/4" SQ X 1 7/8"

$3.99

$

In Stock, Qty 5

0

$

$

Not available

7

Husqvarna 539105406

ELECTRIC CLUTCH W/CABLE

$

$

Not available

8

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

9

Husqvarna 539991120

BOLT 7/16F X 2 1/2

Note: Torque to 50ft/lbs

$6.99

$

In Stock, Qty 8

0

10

Husqvarna 539106819

CLUTCH TIE DOWN

$

$

Not available

12

Husqvarna 539105333

WIRE HARNESS - EFI

$194.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539105335

MUFFLER EFI KOHLER GEN II

$

$

Not available

14

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

15

Husqvarna 539105410

REAR ENGINE MOUNT

$61.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539105025

ENGINE MOUNT

$18.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

20

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 539104959

ISOLATOR WASHER

$15.99

$

In Stock, only 1 left!

0

22

$

$

Not available

24

Husqvarna 539105034

ISOLATOR SPACER

$

$

Not available

25

Husqvarna 539105072

90 DEG.ELBOW 3/8NPT

$7.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539105073

PIPE 3/8 NPT 1-1/2

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

28

$7.49

$

Usually ships in 3-10 days

0

$3.99

$

In Stock, only 1 left!

0

30

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

32

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

34

Husqvarna 539105407

BOLT 10-24 X 2

$

$

Not available

35

Husqvarna 539105408

WASHER #10

$3.99

$

In Stock, Qty 12

0

36

Husqvarna 539107651

INDICATOR CARTRIDGE LAMP

$15.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539105637

CLUTCH HARNESS

$26.99

$

In Stock, Qty 6

0
