ZTH 5221 KAA (968999180) - Husqvarna 52" Zero-Turn Mower (2001-11) Kawasaki Engine Assembly Parts Diagram

52" Zero-Turn Mower

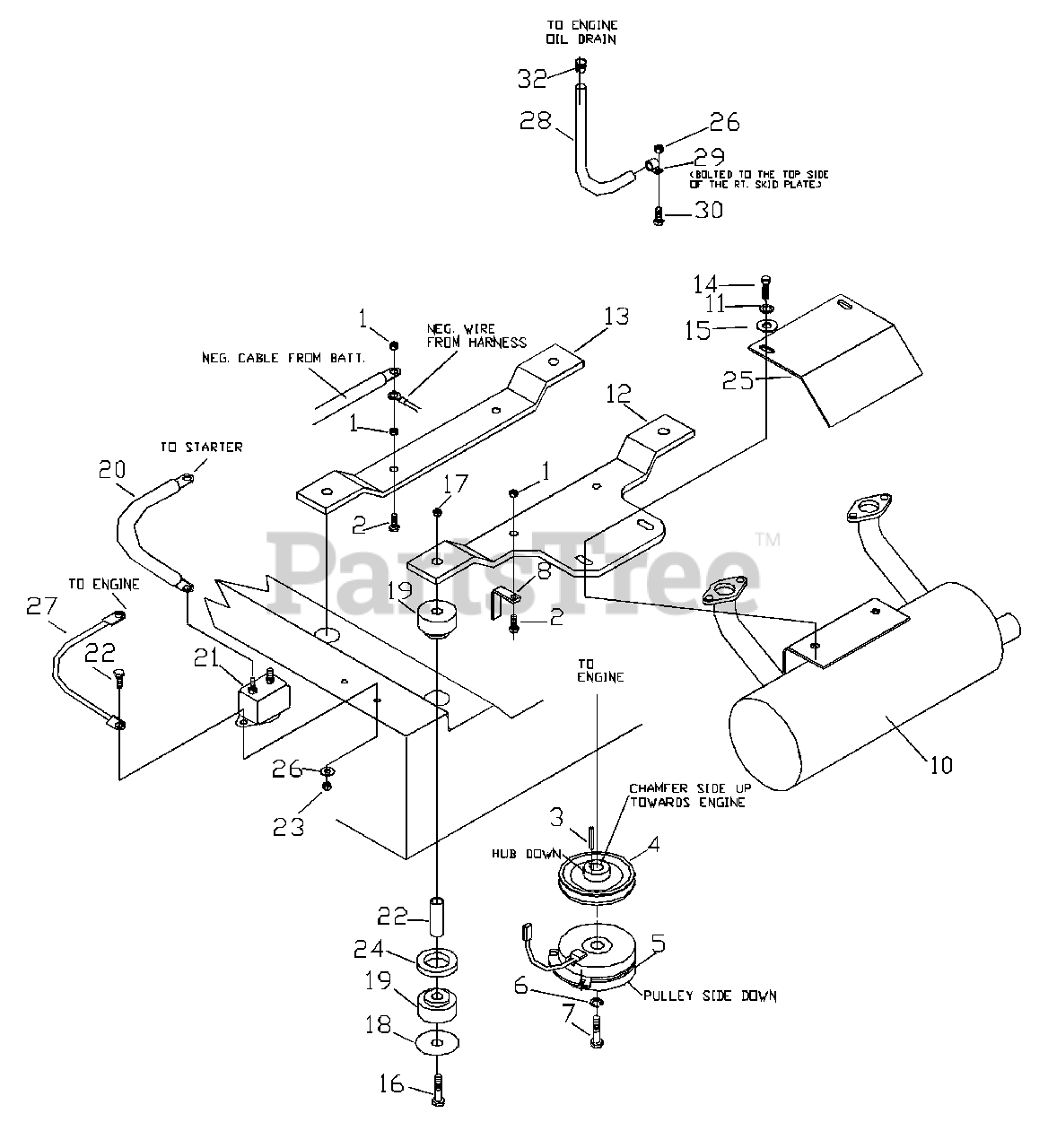

Kawasaki Engine Assembly Parts Diagram

  • Title
1

Husqvarna 539990184

NUT 5/16 LOCK

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539990669

HCS 5/16 X 1.75
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

3

Husqvarna 539100152

KEY 1/4 SQ.

$3.99

$

In Stock, Qty 5

0

$

$

Not available

$

$

Not available

6

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

7

Husqvarna 539991120

HCS 7/16F X 2.5

$6.99

$

In Stock, Qty 8

0

8

Husqvarna 539103251

CLUTCH TIE DOWN

$

$

Not available

9

Husqvarna 539104415

KAWASAKI PIGTAIL

$34.99

$

Usually ships in 3-10 days

0

10

$

$

Not available

11

Husqvarna 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

12

Husqvarna 539105410

ENGINE MOUNT

$61.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539105025

ENGINE MOUNT

$

$

Not available

14

Husqvarna 539976934

HCS 5/16 X .750
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539103433

HCS 1/2 X 3.25

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 539101331

NUT 1/2 NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

$15.99

$

In Stock, only 1 left!

0

19

$

$

Not available

20

Husqvarna 539102757

CABLE, POSITIVE

$15.99

$

Usually ships in 3-10 days

0

21

$26.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990072

HCS 1/4 X .625

$3.99

$

In Stock, only 1 left!

0

23

Husqvarna 539990761

NUT 1/4 CTR. LOCK

$4.99

$

In Stock, only 4 left!

0

$

$

Not available

25

Husqvarna 539105968

MUFFLER GUARD

$66.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539990053

WASHER 1/4 INT. TOOTH

$3.99

$

In Stock, only 3 left!

0

27

Husqvarna 539105409

GROUND WIRE

$8.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539105395

OIL DRAIN HOSE

$

$

Not available

29

$4.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990580

HCS 1/4 X .750

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539102733

CHOKE CONTROL

Note: (NOT SHOWN)

$56.99

$

In Stock, Qty 5

0

$

$

Not available

33

$4.99

$

In Stock, only 2 left!

0
