ZTH 4819 A (968999152) - Husqvarna 48" Zero-Turn Mower (2001-09) HANDLE & CONTROLS Parts Diagram

48" Zero-Turn Mower

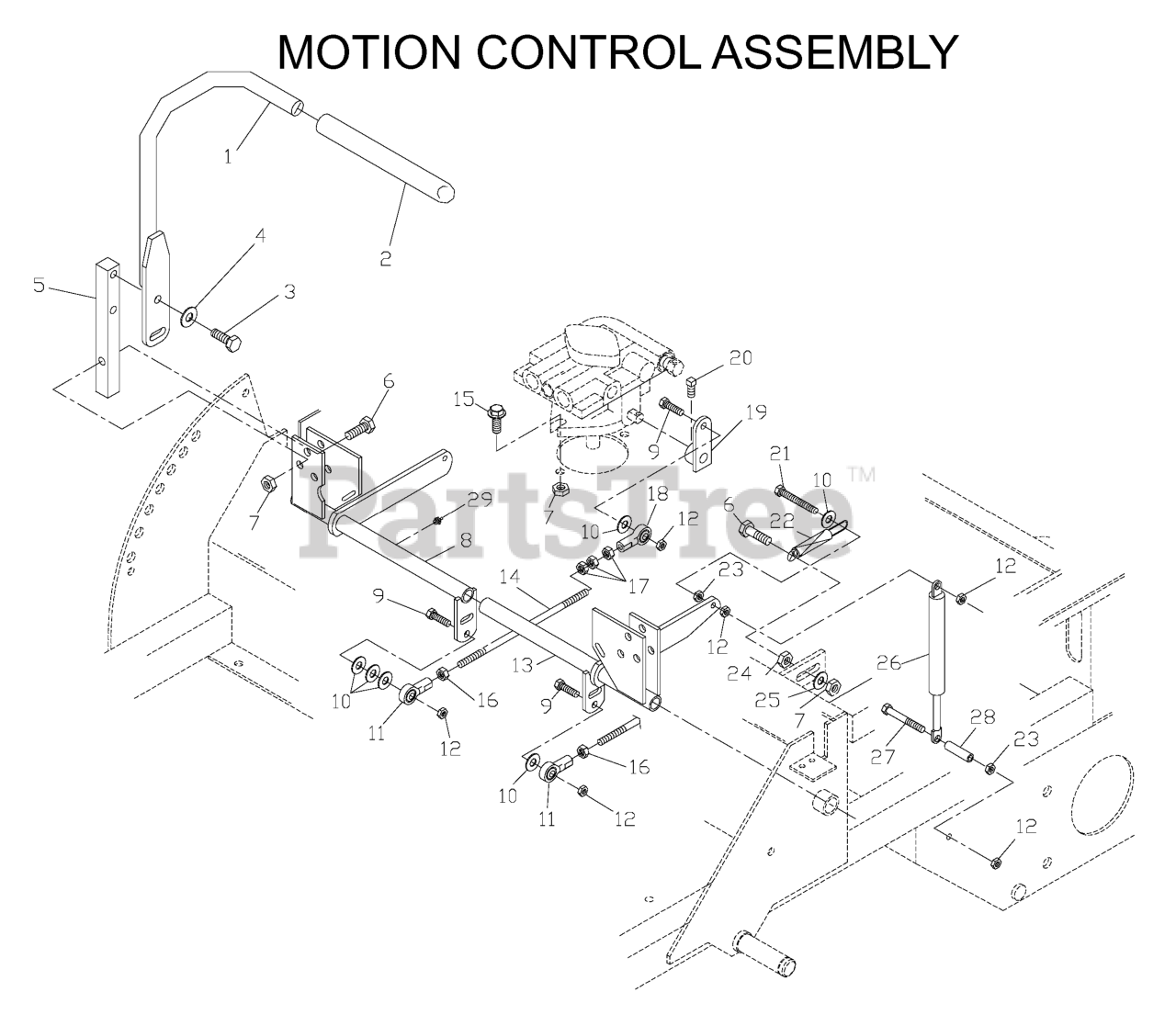

HANDLE & CONTROLS Parts Diagram

  • Title

3

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539103248

CONTROL WELDMENT, RIGHT

$145.99

$

In Stock, only 1 left!

0

19

Husqvarna 539103260

CONTROL ARM, PUMP

$

$

Not available

24

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539991055

TAP BOLT 5/16C X 2 1/4

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

26

Husqvarna 539102720

DAMPENER

$66.99

$

In Stock, only 3 left!

0

12

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

20

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, only 4 left!

0

18

Husqvarna 539102590

BALL JOINT, RIGHT HANDED

$27.99

$

In Stock, only 1 left!

0

5

Husqvarna 539102809

CONTROL ARM

$30.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

28

Husqvarna 539100097

SPACER

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 539103264

PUMP CONTROL LINK

$

$

Not available

23

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102592

GRIP

$

$

Not available

11

Husqvarna 539102591

BALL JOINT, LEFT HANDED

$24.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539103297

SPRING

$8.99

$

In Stock, only 2 left!

0

9

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

1

Husqvarna 539104190

CONTROL LEVER WELDMENT

$

$

Not available

6

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

27

Husqvarna 539103468

HCS 5/16C X 2 3/4 GRADE 8

$

$

Not available

13

Husqvarna 539103249

CONTROL WELDMENT, LEFT

$

$

Not available

16

Husqvarna 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0
