ZTH 4817 A (968999151) - Husqvarna 48" Zero-Turn Mower (2001-09) MOWER DECK / CUTTING DECK Parts Diagram

48" Zero-Turn Mower

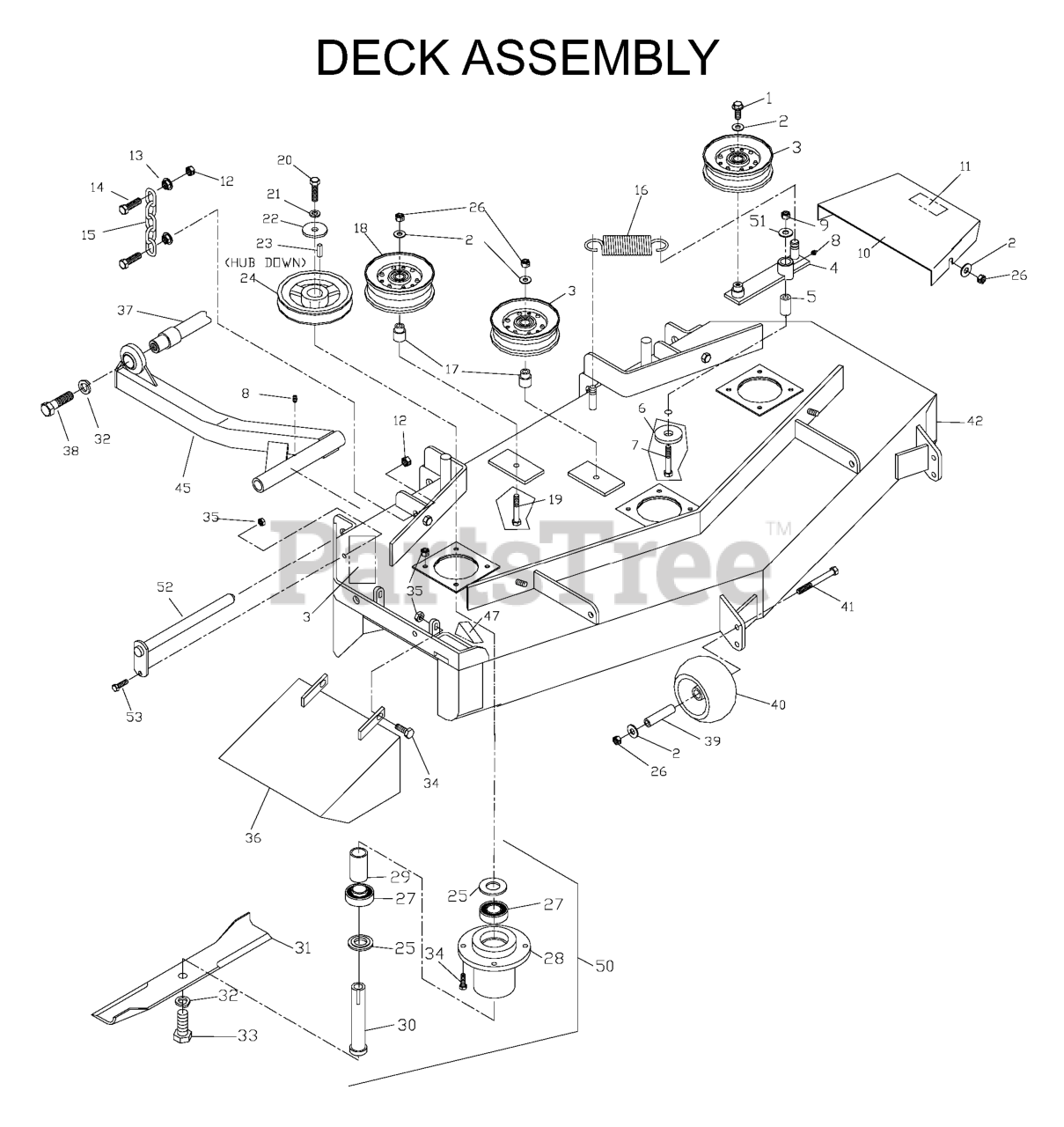

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

7

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

23

Husqvarna 539101995

KEY 1/4 SQ X 1 1/8

$

$

Not available

16

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

40

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

38

Husqvarna 539104199

HCS 5/8C X 2 GR.5

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539104197

STRUT MOUNT WELDMENT

$

$

Not available

8

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

10

Husqvarna 539104605

BELTSHIELD

$

$

Not available

19

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539102676

SPACER

$13.99

$

In Stock, only 4 left!

0

47

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

25

Husqvarna 539102675

MACHINERY BUSHING 10 GA.

$10.99

$

In Stock, only 3 left!

0

33

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

36

Husqvarna 539104546

DEFLECTOR CHUTE

$169.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

28

Husqvarna 539104852

HOUSING, DIE CAST

$

$

Not available

22

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

27

Husqvarna 539102677

BEARING
(Superseded to 539115279)

$37.99

$

In Stock, Qty 20+

0

9

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

14

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539102244

BUSHING.MACHINE.18.GAUGE

$5.99

$

In Stock, only 3 left!

0

32

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

5

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 2 left!

0

13

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

11

Husqvarna 539102892

DECAL, NO STEP

$0.99

$

In Stock, only 2 left!

0

539104621

Husqvarna 539104621

STRUT SLDMT-LT
(Superseded to 539108351)

$169.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539100344

DECAL, DANGER

$

$

Not available

45

Husqvarna 539104609

STRUT WLDMT - RT
(Superseded to 539108350)

$667.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

49

Husqvarna 539103239

DECK BELT 48"
(Superseded to 539111949)

$

$

Not available

20

Husqvarna 539100141

HCS 7/16F X 1 1/2

$

$

Not available

53

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

42

Husqvarna 539104610

DECK W/DECALS
(Superseded to 539105779)

$

$

Not available

30

Husqvarna 539103290

SPINDLE SHAFT

$

$

Not available

39

Husqvarna 539102698

BUSHING

$

$

Not available

12

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

31

Husqvarna 539100340

BLADE OEM 16 1/4"

$26.99

$

In Stock, only 3 left!

0

50

Husqvarna 539103298

HOUSING, COMPLETE
(Superseded to 539107410)

$

$

Not available

34

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

41

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

17

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

55

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

35

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539103283

PULLEY

$93.99

$

In Stock, Qty 5

0

4

Husqvarna 539103230

IDLER ARM

$

$

Not available
