ZTH 4817 A (968999151) - Husqvarna 48" Zero-Turn Mower (2001-09) FRAME Parts Diagram

48" Zero-Turn Mower

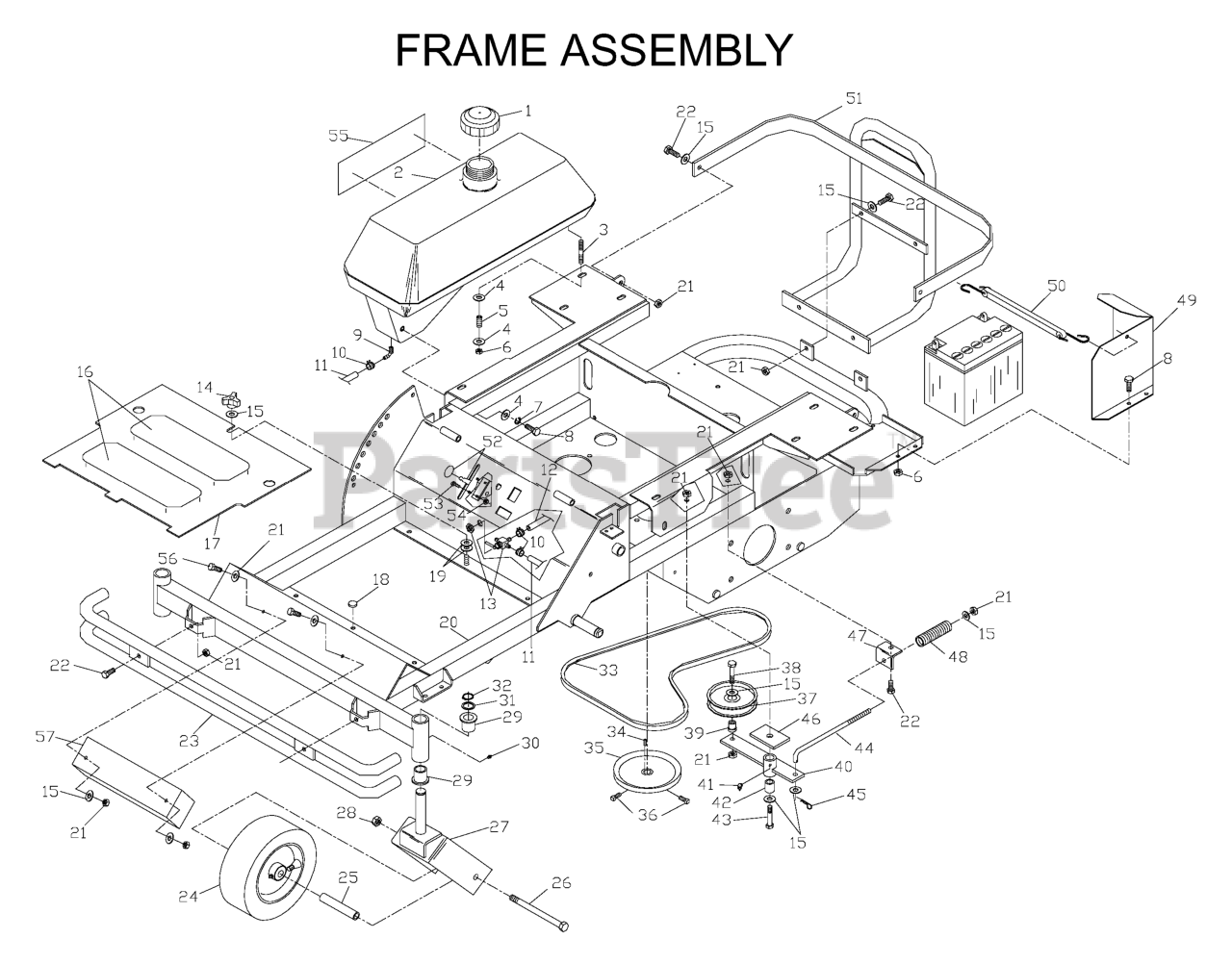

FRAME Parts Diagram

  • Title
14

Husqvarna 539102070

KNOB, THREE PRONG

$7.49

$

In Stock, Qty 9

0

44

Husqvarna 539102337

TENSION ROD

$13.99

$

Usually ships in 3-10 days

0

539104600

$

$

Not available

46

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

539917785

Husqvarna 539917785

ROLLER BEARING 1"

$

$

Not available

38

Husqvarna 539990730

HCS 3/8-16 X 1 3/4 GR5

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539102650

HOSE BARB 90 DEGREE

$

$

Not available

24

Husqvarna 539104594

TIRE, CASTER (COMPLETE)
(Superseded to 539106993)

$121.99

$

In Stock, only 2 left!

0

28

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

43

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

18

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

$4.99

$

In Stock, Qty 18

0

17

Husqvarna 539104590

FOOTPLATE
(Superseded to 539103242)

$

$

Not available

1

$

$

Not available

2

$

$

Not available

53

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539104589

YOKE WELDMENT ORANGE

$341.99

$

In Stock, Qty 5

0

47

Husqvarna 539104533

TENSION BRACKET

$

$

Not available

32

Husqvarna 539101151

RETAINING RING, 7/8"

$

$

Not available

49

Husqvarna 539102512

BATTERY GUARD W/DECALS

$

$

Not available

$4.99

$

In Stock, only 3 left!

0

36

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, only 4 left!

0

539103495

Husqvarna 539103495

TIRE.11X4.00-5NHS.4PR.SMOOTH

$62.99

$

Usually ships in 3-10 days

0

539102484

Husqvarna 539102484

BEARING RETAINER

$5.99

$

In Stock, only 1 left!

0

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

57

Husqvarna 539104614

WEIGHT BLOCK

$

$

Not available

50

Husqvarna 539102501

BATTERY STRAP

$

$

Not available

19

Husqvarna 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

$31.99

$

In Stock, only 2 left!

0

539103300

$4.99

$

In Stock, Qty 18

0

22

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539102817

COMPRESSION SPRING

$

$

Not available

7

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

6

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

42

Husqvarna 539103429

PIVOT BUSHING

$

$

Not available

15

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

In Stock, only 2 left!

0

$

$

Not available

54

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

40

Husqvarna 539103252

IDLER ARM WELDMENT

$70.99

$

Usually ships in 3-10 days

0

539103496

Husqvarna 539103496

ROLLER BEARING 2 1/4"

$10.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539104595

BUMPER, FRONT

$

$

Not available

29

Husqvarna 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 7

0

37

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

56

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539104611

FRAME W/DECALS

$

$

Not available

52

Husqvarna 539103275

THROTTLE CABLE

$34.99

$

In Stock, only 1 left!

0

11

Husqvarna 539102680

FUEL LINE 21.5" TANK
(Superseded to 539115707)

$

$

Not available

4

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

21

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

51

Husqvarna 539103582

ENGINE GUARD W/DECALS

$

$

Not available

45

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539102681

FUEL LINE, ENGINE

$

$

Not available

10

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

33

$42.99

$

In Stock, only 1 left!

0

16

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

539104806

$

$

Not available

13

Husqvarna 539102679

FUEL VALVE

$56.99

$

In Stock, only 2 left!

0

26

Husqvarna 539101907

HCS 1/2C X 5 1/2

$11.99

$

In Stock, Qty 10

0

31

Husqvarna 539923787

BSHG .875 X 1.375 X .074 ZD

$3.99

$

In Stock, only 1 left!

0
