ZTH 4817 A (968999151) - Husqvarna 48" Zero-Turn Mower (2000-03) Seat Assembly Parts Diagram

48" Zero-Turn Mower

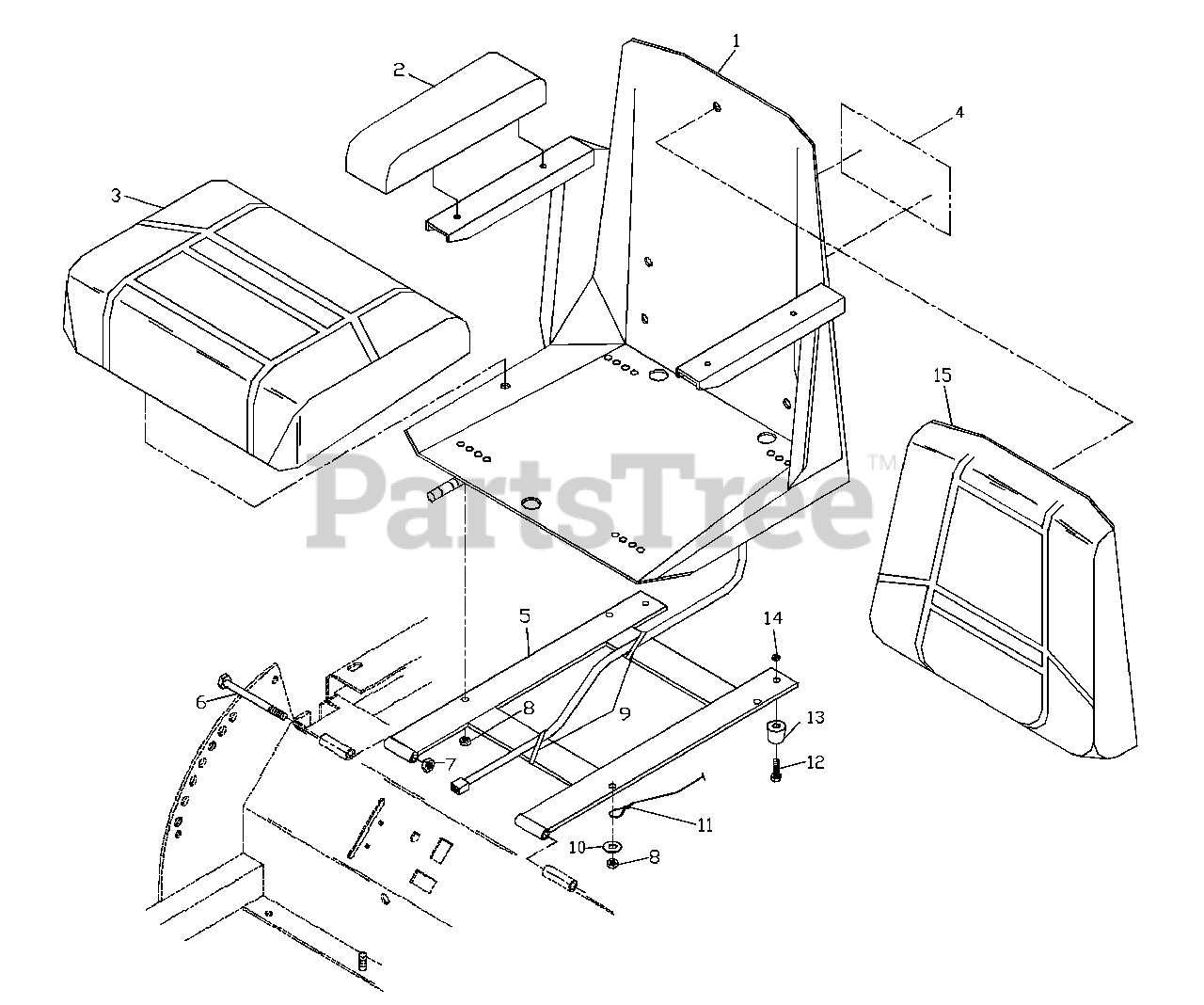

Seat Assembly Parts Diagram

  • Title

1

Husqvarna 539104584

COMPLETE-SEAT
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539102844

ARM REST CUSHION

$194.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102539

SEAT CUSHION W/SWITCH

$

$

Not available

4

Husqvarna 539104789

DECAL, CROWN

$

$

Not available

5

Husqvarna 539103288

SEAT MOUNT

$

$

Not available

6

Husqvarna 539990591

HCS 3/8C X 4 1/2

$6.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990546

NUT 3/8C CENTERLOCK

$

$

Not available

8

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539976856

PLASTIC TIE

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539990692

5/16 FLAT WASHER
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

12

Husqvarna 539102617

#10-24 X 1/2 SLOTTED SCREW

$3.99

$

In Stock, only 3 left!

0

13

Husqvarna 539102794

SEAT BUMPER

$

$

Not available

14

Husqvarna 539976977

#10-24 NYLOC NUT

$

$

Not available

15

Husqvarna 539104565

SEAT BACK CUSHION

$194.99

$

Usually ships in 3-10 days

0
