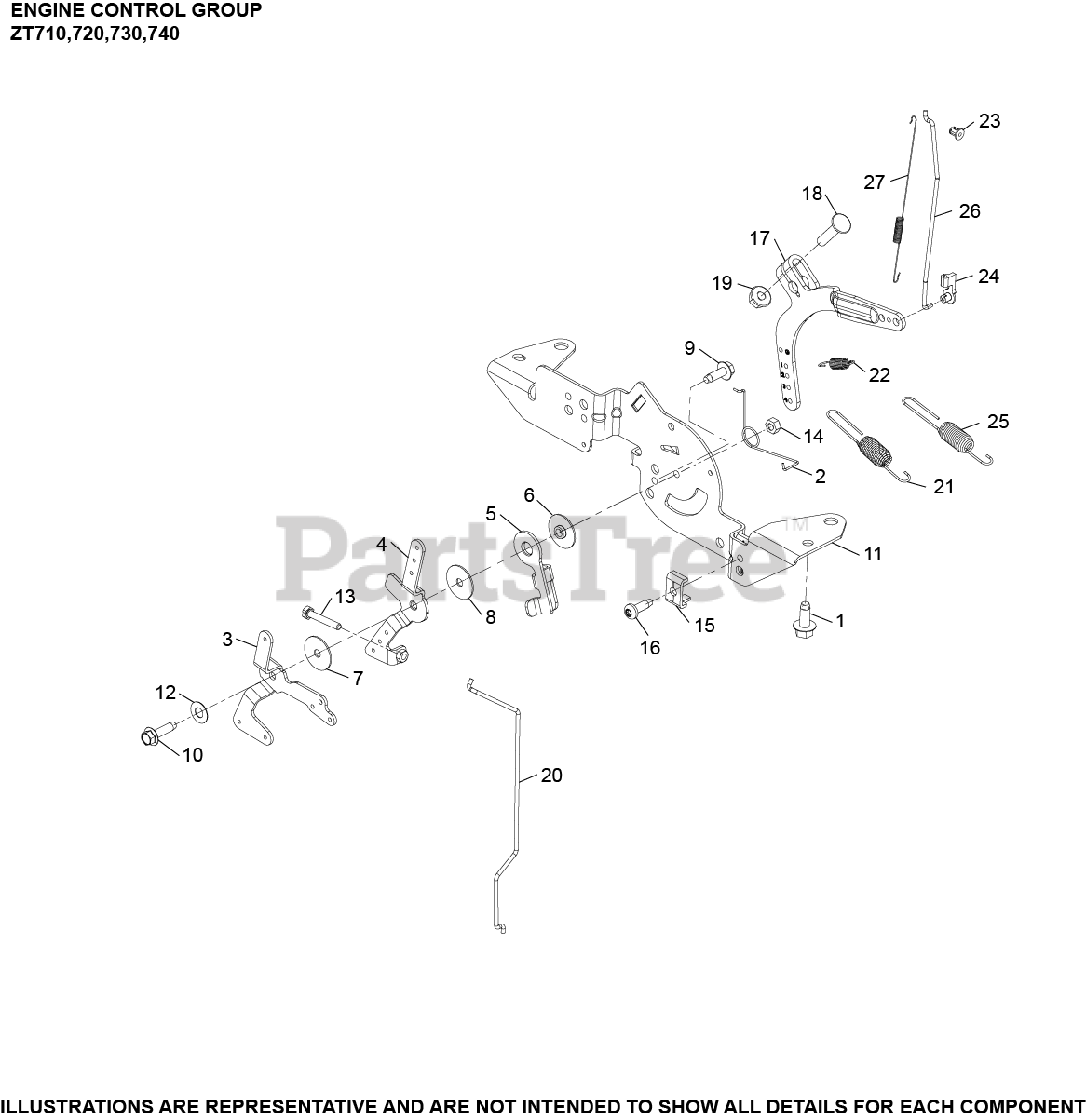

ZT740-3011 - Kohler Confidant Engine, Made for Exmark, 25hp, 747cc Engine Controls Group 9-32-46 ZT Parts Diagram

Confidant Engine, Made for Exmark, 25hp, 747cc

Engine Controls Group 9-32-46 ZT Parts Diagram

  • Title
1

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

2

Kohler 24 089 03-S

SPRING, CHOKE RETURN

$2.99

$

In Stock, Qty 12

0

3

Kohler 24 090 05-S

LEVER, CHOKE

$5.49

$

In Stock, only 2 left!

0

4

Kohler 24 090 13-S

LEVER, THROTTLE CONTROL

$9.49

$

In Stock, only 1 left!

0

5

Kohler 24 090 47-S

LEVER, THROTTLE ACTUATOR

$2.99

$

In Stock, Qty 11

0

6

Kohler 24 112 27-S

SPACER, CONTROL ASSEMBLY

$3.99

$

In Stock, only 2 left!

0

7

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

8

Kohler 24 468 20-S

WASHER, FLAT 5 MM

$2.49

$

In Stock, only 1 left!

0

9

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

10

Kohler 25 086 399-S

SCREW, THREAD FORMING - USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

11

Kohler 32 126 04-S

BRACKET, CONTROL USE 32 126 18-s
(Superseded to 32 126 18-S)

$11.99

$

In Stock, only 2 left!

0

12

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

13

Kohler M-403025-S

SCREW, SLT HD CAP M4X0.7X25

$4.99

$

In Stock, only 1 left!

0

14

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 2 left!

0

15

Kohler 12 237 01-S

CLAMP, CABLE
(Superseded to 25 237 53-S)

$3.49

$

In Stock, Qty 5

0

16

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

17

Kohler 24 090 57-S

LEVER, GOVERNOR - (#2409069S)
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

18

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

19

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 11

0

20

Kohler 24 079 22-S

LINKAGE, CHOKE

$6.99

$

In Stock, Qty 7

0

22

Kohler 24 089 55-S

SPRING, GOVERNED IDLE

$2.49

$

In Stock, Qty 6

0

23

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 20+

0

24

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, Qty 15

0

25

Kohler 24 089 25-S

SPRING, GOVERNOR (ORANGE)

$15.99

$

In Stock, only 1 left!

0

26

Kohler 32 079 01-S

LINKAGE, THROTTLE USE 24 079 04-S
(Superseded to 24 079 04-S)

$3.49

$

In Stock, Qty 7

0

27

Kohler 32 089 07-S

SPRING, LINKAGE USE 32 089 11-S
(Superseded to 32 089 11-S)

$2.49

$

In Stock, Qty 19

0
