ZT740-3011 - Kohler Confidant Engine, Made for Exmark, 25hp, 747cc Crankcase Group 2-32-14 ZT Parts Diagram

Confidant Engine, Made for Exmark, 25hp, 747cc

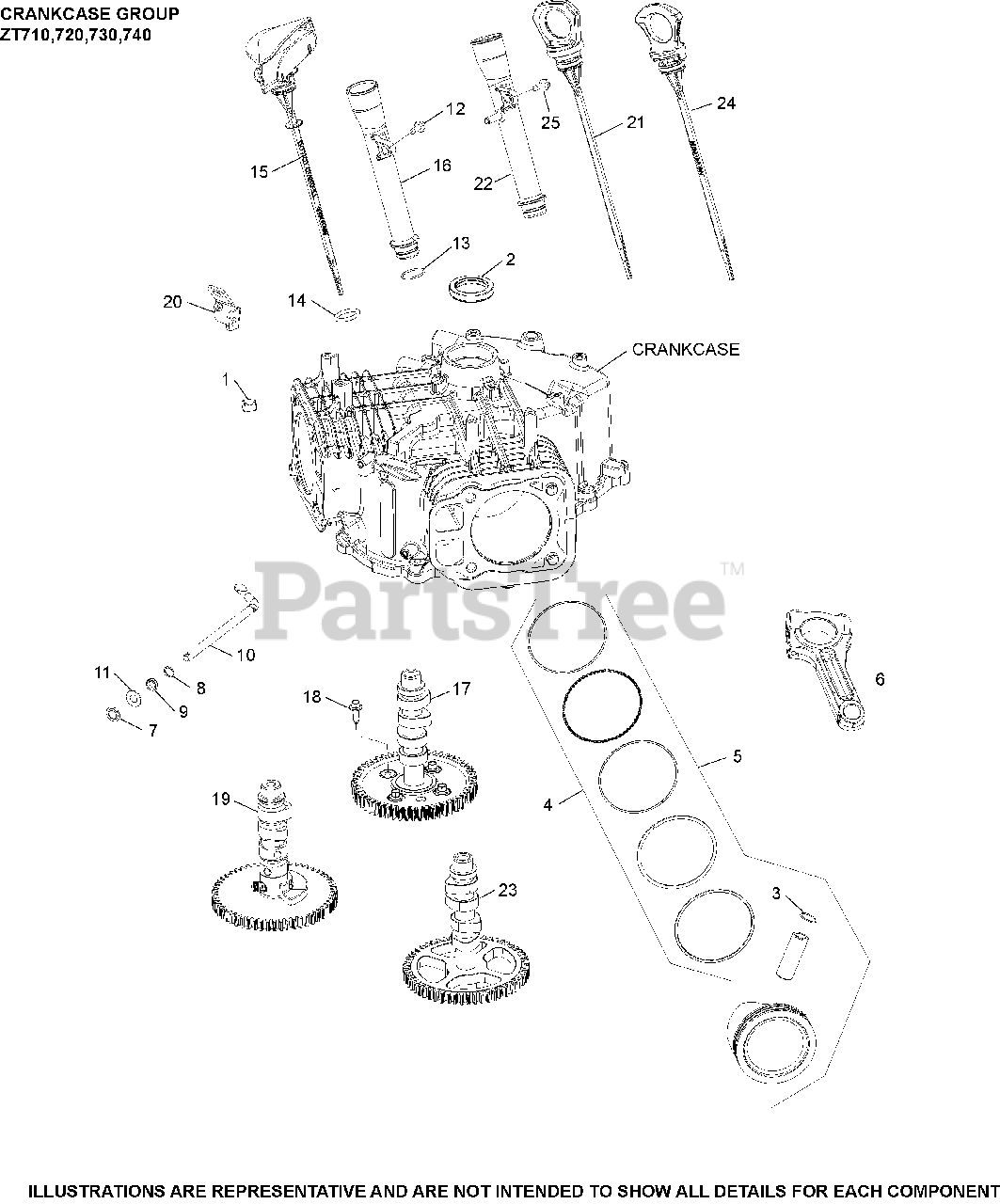

Crankcase Group 2-32-14 ZT Parts Diagram

  • Title

1

Kohler 24 380 16-S

PIN, LOCATING

$4.49

$

In Stock, only 3 left!

0

2

Kohler 24 032 19-S

SEAL, OIL (HELIX LIP)

$7.49

$

In Stock, Qty 20+

0

3

Kohler 24 018 01-S

RETAINER, PISTON PIN

$2.99

$

In Stock, Qty 7

0

4

Kohler 25 108 01-S

RING SET(STD)STYLE B-1.2mm Tp RING THICK

$63.99

$

Usually ships in 2-5 days

0

4

Kohler 25 108 02-S

RING SET(.08)STYLE B-1.2mm Tp RING THICK

$26.99

$

In Stock, only 1 left!

0

4

Kohler 25 108 03-S

RING SET(.25)STYLE B-1.2mm Tp RING THICK

$26.99

$

Usually ships in 2-5 days

0

4

Kohler 25 108 04-S

RING SET(.50)STYLE B-1.2mm Tp RING THICK

$103.99

$

Usually ships in 2-5 days

0

5

Kohler 25 874 14-S

PISTON W/RINGS (STYLE B)(STD) - RING SET 25 108 01-S

$174.99

$

In Stock, Qty 6

0

5

Kohler 25 874 18-S

PISTON W/RINGS (STYLE B)(.08) - RING SET 25 108 02-S

$206.99

$

Usually ships in 2-5 days

0

5

Kohler 25 874 19-S

PISTON W/RINGS (STYLE B)(.25) - RING SET 25 108 03-S

$253.99

$

Usually ships in 2-5 days

0

5

Kohler 25 874 20-S

PISTON W/RINGS (STYLE B)(.50) - RING SET 25 108 04-S

$250.99

$

Usually ships in 2-5 days

0

6

Kohler 24 067 28-S

ROD, ASSY CONNECTING (STD)-(#2406730S)
(Superseded to 25 067 04-S)

$59.99

$

In Stock, only 4 left!

0

6

Kohler 24 067 29-S

ROD ASSY, CONNECTING U/S (.010”) (.25 mm) -USE 24 067 31-S
(Superseded to 25 067 05-S)

$59.99

$

In Stock, only 1 left!

0

8

Kohler 24 468 15-S

WASHER, FLAT 11/32"

$2.49

$

In Stock, Qty 5

0

9

Kohler 28 032 09-S

SEAL, GOVERNOR CROSS SHAFT

$3.49

$

In Stock, Qty 6

0

10

Kohler 32 755 22-S

KIT, CROSS SHAFT

$4.49

$

Usually ships in 2-5 days

0

11

Kohler M-931010-S

WASHER, FLAT 9 MM

$2.49

$

In Stock, only 2 left!

0

13

Kohler 12 153 07-S

O-RING

$2.49

$

In Stock, Qty 10

0

14

Kohler 25 153 09-S

O-RING

$3.49

$

In Stock, only 3 left!

0

16

Kohler 32 123 14-S

TUBE ASSEMBLY, OIL FILL

$6.99

$

In Stock, only 1 left!

0

20

Kohler 24 126 243-S

BRACKET, OIL FILL TUBE

$11.99

$

In Stock, only 1 left!

0

23

Kohler 32 010 07-S

CAMSHAFT ASSEMBLY

$83.99

$

In Stock, only 1 left!

0

24

Kohler 32 038 14-S

DIPSTICK, ASSEMBLY

$9.49

$

In Stock, Qty 6

0

25

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0
