ZT730-3045 - Kohler Confidant Engine, Made for MTD, 23hp, 747cc 09 Engine Controls Parts Diagram

Confidant Engine, Made for MTD, 23hp, 747cc

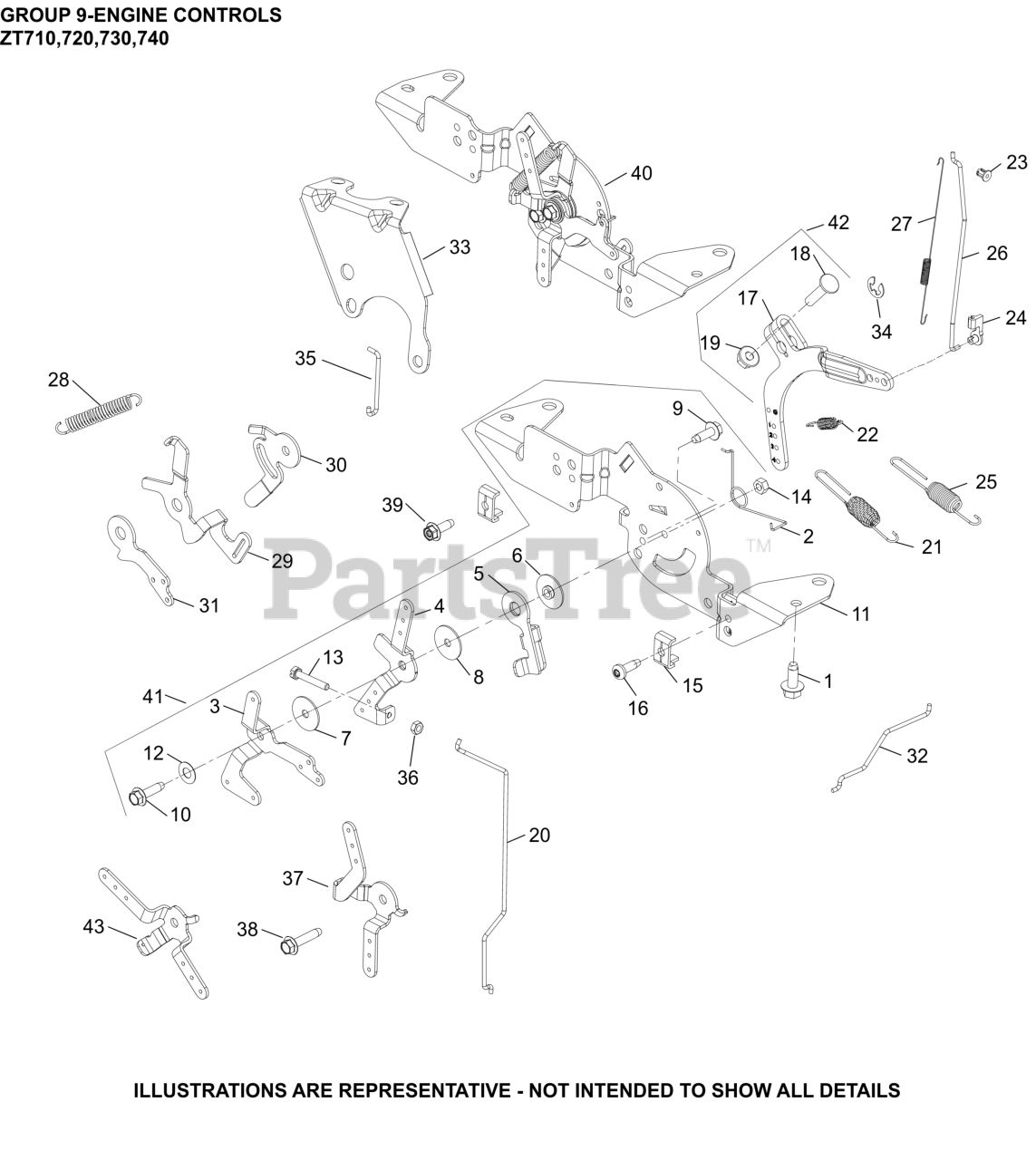

09 Engine Controls Parts Diagram

  • Title
1

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 13

0

2

Kohler 24 089 03 -S

SPRING, CHOKE RETURN

$

$

Not available

6

Kohler 24 112 27-S

SPACER, CONTROL ASSEMBLY

$3.99

$

In Stock, only 1 left!

0

7

Kohler 24 468 01-S

WASHER, FLAT 5.5 MM

$2.49

$

In Stock, only 2 left!

0

9

Kohler 25 086 398-S

SCREW, THREAD FORMING

$3.99

$

Usually ships in 2-5 days

0

11

Kohler 32 126 18-S

BRACKET, SPEED CONTROL

$11.99

$

In Stock, only 2 left!

0

12

Kohler 41 468 03-S

WASHER, SPRING 1/4"

$3.49

$

In Stock, only 2 left!

0

14

Kohler M-547050-S

NUT, LOCK M5X.8

$2.49

$

In Stock, only 1 left!

0

15

Kohler 25 237 53-S

CLAMP, CABLE CABLE

$3.49

$

In Stock, Qty 5

0

17

Kohler 24 090 57-S

LEVER, GOVERNOR - (#2409069S)
(Superseded to 24 090 69-S)

$8.99

$

In Stock, only 1 left!

0

18

Kohler 24 211 03-S

BOLT, RD HD SQ NECK M6X1.0X25

$2.49

$

In Stock, Qty 15

0

19

Kohler M-641060-S

NUT, FLG M6X1.0

$4.49

$

In Stock, Qty 6

0

22

Kohler 24 089 55-S

SPRING, GOVERNED IDLE

$2.49

$

In Stock, only 4 left!

0

23

Kohler 25 158 08-S

BUSHING, LINKAGE RETAINING

$5.99

$

In Stock, Qty 18

0

24

Kohler 25 158 11-S

BUSHING, THROTTLE LINKAGE

$5.99

$

In Stock, only 2 left!

0

25

Kohler 24 089 18-S

SPRING, GOVERNOR (PURPLE)

$7.49

$

In Stock, Qty 10

0

27

Kohler 32 089 11-S

SPRING, LINKAGE

$2.49

$

In Stock, Qty 18

0

28

Kohler 32 089 03-S

SPRING, SPEED CONTROL

$2.49

$

In Stock, only 1 left!

0

29

Kohler 32 090 07-S

LEVER, GOVERNOR SPRING

$3.99

$

Usually ships in 2-5 days

0

30

Kohler 32 090 09-S

LEVER, SPEED SETTING

$2.99

$

In Stock, only 1 left!

0

32

Kohler 24 079 04-S

LINKAGE, THROTTLE

$3.49

$

In Stock, Qty 5

0

34

Kohler 32 154 03-S

CLIP, RETAINER GOVERNOR SHAFT

$2.49

$

Usually ships in 2-5 days

0

38

Kohler 25 086 429-S

SCREW, THREAD FORMING-USE 25 086 472-S
(Superseded to 25 086 472-S)

$2.49

$

In Stock, only 1 left!

0

39

Kohler 25 086 651-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

40

Kohler 32 536 12-S

SPEED CONTROL, ASSY SINGLE WIRE

$33.99

$

In Stock, only 1 left!

0

42

Kohler 24 090 69-S

LEVER, GOVERNOR ASSEMBLY

$8.99

$

In Stock, only 1 left!

0

43

Kohler 32 090 26-S

LEVER, SPEED CONTROL

$1.99

$

In Stock, only 4 left!

0
