ZT720-3016 - Kohler Confidant Engine, Basic Version, 21hp, 725cc Blower Housing Group 6-32-32 ZT Parts Diagram

Confidant Engine, Basic Version, 21hp, 725cc

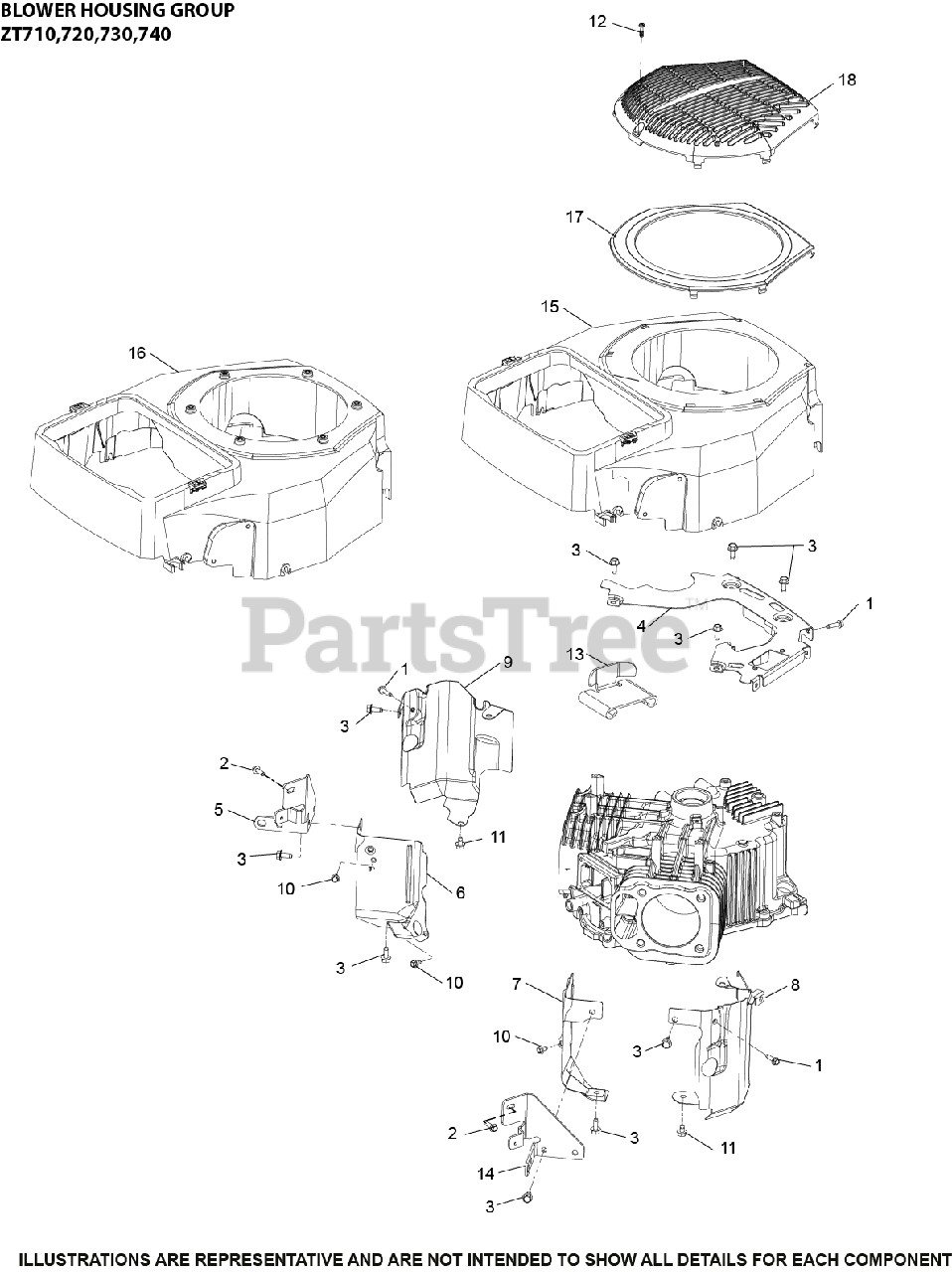

Blower Housing Group 6-32-32 ZT Parts Diagram

  • Title
1

Kohler 25 086 399-S

SCREW, THREAD FORMING - USE 25 086 473-S
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

2

Kohler 25 086 450-S

SCREW, HI-LOW

$

$

Not available

3

Kohler 25 086 397-S

SCREW, THREAD FORMING

$3.99

$

In Stock, Qty 15

0

4

Kohler 32 146 15-S

PLATE, BACKING

$14.99

$

Usually ships in 2-5 days

0

5

Kohler 16 126 01-S

BRACKET, AIR CLEANER BASE (#1 SIDE)

$7.49

$

Usually ships in 2-5 days

0

6

Kohler 32 063 15-S

VALLEY, BAFFLE #1

$5.99

$

Usually ships in 2-5 days

0

7

Kohler 32 063 16-S

BAFFLE, VALLEY #2 USE 32 063 21-S
(Superseded to 32 063 21-S)

$5.49

$

Usually ships in 2-5 days

0

8

Kohler 16 063 01-S

BAFFLE, LEFT BARREL

$10.99

$

Usually ships in 2-5 days

0

9

Kohler 16 063 02-S

BAFFLE, RIGHT BARREL

$8.49

$

Usually ships in 2-5 days

0

10

Kohler 25 086 400-S

SCREW, THREAD FORMING

$2.49

$

In Stock, only 2 left!

0

14

Kohler 16 126 02-S

BRACKET, AIR CLEANER BASE (#2 SIDE)

$7.49

$

Usually ships in 2-5 days

0

16

Kohler 16 027 03-S

HOUSING, BLOWER ASSEMBLY USE 16 027 07-S
(Superseded to 16 027 07-S)

$

$

Not available
