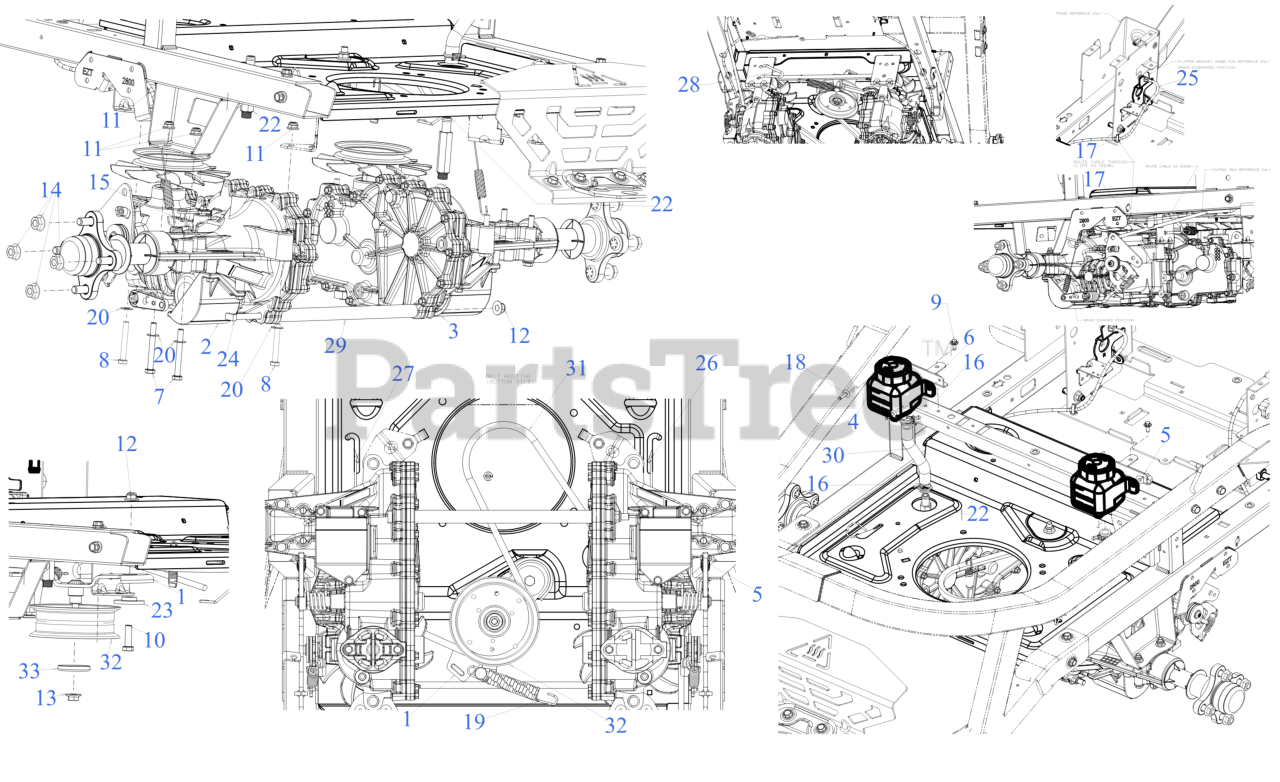

ZT3-60 KW FAB (17AZEAC5010) - Cub Cadet Ultima 60" Zero-Turn Mower, Fab Deck, Kawasaki (2020) Drive Parts Diagram

Ultima 60" Zero-Turn Mower, Fab Deck, Kawasaki

Drive Parts Diagram

  • Title

1

Cub Cadet 603P06820

DRIVE IDLER BRACKET

$67.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618P09295

HYDRO TRANSMISSION (LH)

Note: (See Separate Breakdown)

$1895.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618P09296

HYDRO TRANSMISSION (RH)

Note: (See Separate Breakdown)

$1895.99

$

Usually ships in 3-6 days

0

4

Cub Cadet HG-71328

EXPANSION TANK

$36.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-13261A

EXPANSION TANK BRACKET (RH)

$23.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-15541A

EXPANSION TANK BRACKET (LH)

$23.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 710-0395

HEX SCREW 5/16-18 x 2.25 GR5

$4.99

$

In Stock, only 1 left!

0

9

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 14

0

14

Cub Cadet 712-05160

HEX FLANGE NUT 7/16-14

$5.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

16

Cub Cadet 926-0324

FUEL HOSE CLAMP .75

$7.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 726-3055

CABLE RETAINER CLIP

$6.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 728-05033

POP RIVET - .188 DIAMETER

$3.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-07926

EXTENSION SPRING .81 x 5.37
(Superseded to 732-07926A)

$10.99

$

In Stock, only 1 left!

0

20

Cub Cadet 736-0278

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 737-05023

EXTENSION FITTING 9/16-18

$19.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

24

Cub Cadet 738-05554A

SUPPORT TUBE ROD

$13.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 746P05611A

PARK BRAKE CABLE
(Superseded to 746P05611B)

$35.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 747-07690A

HYDRO BYPASS ROD (RH)

$14.99

$

In Stock, only 3 left!

0

27

Cub Cadet 747-08130A

HYDRO BYPASS ROD (LH)

$14.99

$

In Stock, only 1 left!

0

28

Cub Cadet 747-09490

IDLER SPRING HOOK

$8.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 750-07350

SUPPORT TUBE

$24.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 751-16786

EXPANSION TANK HOSE

$24.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 954-04317A

TRANSMISSION DRIVE BELT A x 67

$50.99

$

In Stock, only 3 left!

0

31

Cub Cadet 490-501-C069

Cub Cadet TRANS DRIVE BELT A x 67 RZT

Note: Retail Packaged Part

$50.99

$

In Stock, only 1 left!

0

31

Cub Cadet 490-501-Y069

Troy-Bilt TRANSMISSION DRIVE BELT

Note: Retail Packaged Part

$50.99

$

In Stock, only 1 left!

0

32

Cub Cadet 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

33

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+
