ZT1-54P KW FAB (17AIEACMA10) - Cub Cadet Ultima 54" Zero-Turn Mower, Fab Deck, Kawasaki (2023) Frame Parts Diagram

Ultima 54" Zero-Turn Mower, Fab Deck, Kawasaki

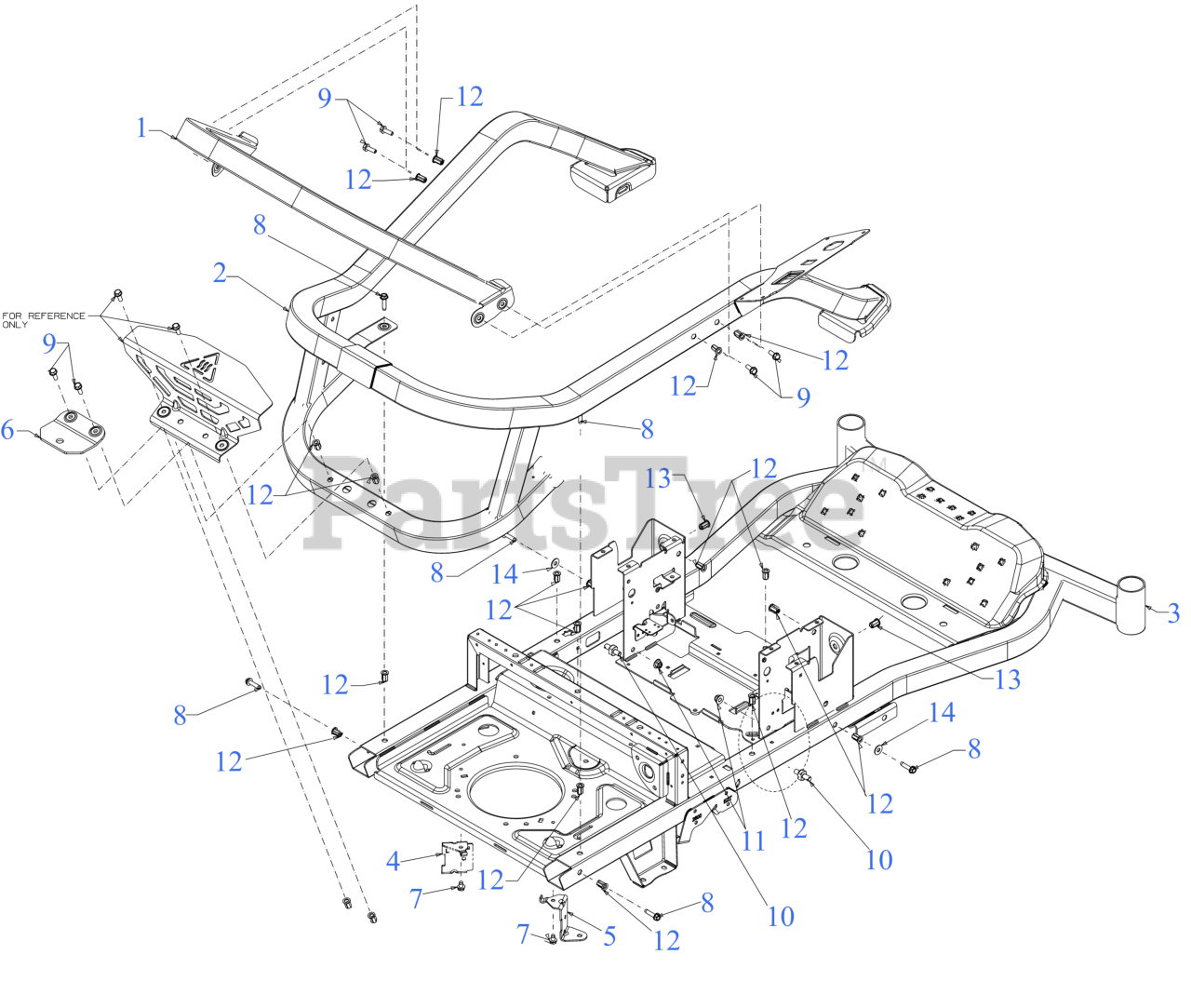

Frame Parts Diagram

  • Title

1

Cub Cadet 603-05519

UPPER FRAME HOOP

Note: *CHOOSE COLOR WHEN ORDERING*

$86.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-05639

UPPER FRAME
(Superseded to 603-05639A)

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

3

Cub Cadet 603-08687

FRAME

Note: *CHOOSE COLOR WHEN ORDERING*

$1120.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-12963

TRANSMISSON MOUNT SUPPORT (LH)
(Superseded to 703-12963A)

Note: *CHOOSE COLOR WHEN ORDERING*

$5.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-13882

TRANSMISSON MOUNT SUPPORT (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$5.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-16441

HITCH PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$27.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

8

Cub Cadet 710-0817

SCREW 5/16-18 x 1.25

$6.99

$

In Stock, Qty 15

0

9

Cub Cadet 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 711-09802

SHOULDER STUD

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 728-05043

NUT RIVET 5/16-18

$5.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 728-05088

NUT RIVET 5/16-18 LOCK
(Superseded to 728-05043)

$5.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0
