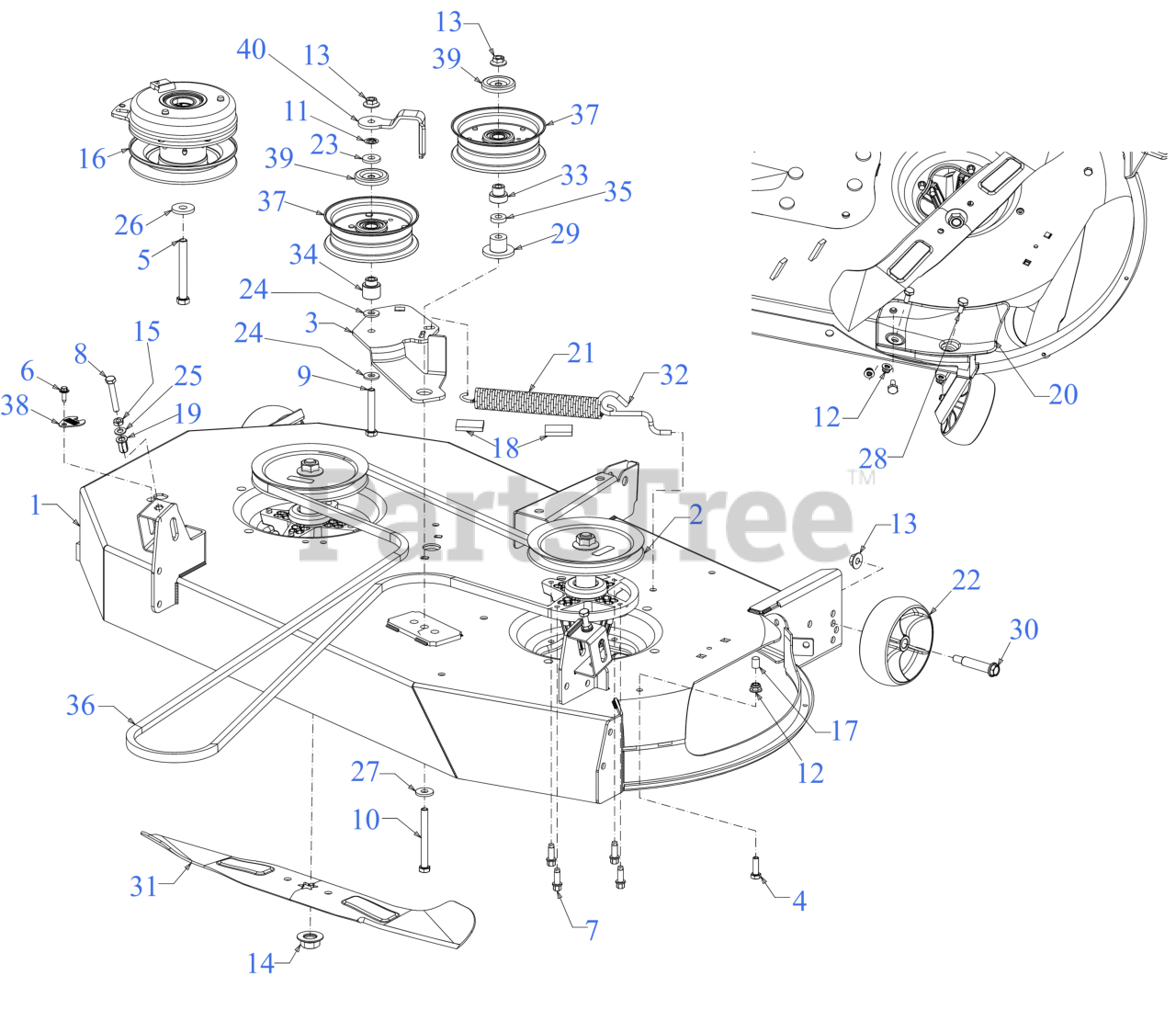

ZT1-46 KH FAB (17AREACN010) - Cub Cadet Ultima 46" Zero-Turn Mower, Fab Deck, Kohler (2021) Deck Parts Diagram

Ultima 46" Zero-Turn Mower, Fab Deck, Kohler

Deck Parts Diagram

  • Title

1

Cub Cadet 603P05719

46" FAB DECK SHELL
(Superseded to 603P05719A)

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

2

Cub Cadet 918-05078A

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$155.99

$

In Stock, only 4 left!

0

2

Cub Cadet 490-130-C018

Cub Cadet 46" SPINDLE ASSEMBLY (05078A)

Note: Retail Packaged Part

$132.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703E26738

46" DECK IDLER BRACKET
(Superseded to 703E26738A)

$36.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

5

Cub Cadet 710-04379A

SCREW 7/16-20 x 3.5 GR5

$6.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 8

0

7

Cub Cadet 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, Qty 5

0

8

Cub Cadet 710-07494

SCREW-FULL THREAD 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

10

Cub Cadet 710-3085

SCREW 3/8-16 x 3.50 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 17

0

13

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 12

0

14

Cub Cadet 712-05134

FLANGE NUT 5/8-18

$6.49

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3007

HEX NUT

$6.99

$

In Stock, only 3 left!

0

16

Cub Cadet 917-05209

ELECTRIC PTO CLUTCH

$545.99

$

In Stock, only 1 left!

0

17

Cub Cadet 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 7

0

18

Cub Cadet 721-04382

FOAM TAPE .75" WIDE x .25" THICK

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 728-05043

NUT RIVET 5/16-18

$5.49

$

In Stock, only 2 left!

0

20

Cub Cadet 731-10629A

DISCHARGE BAFFLE

$20.99

$

In Stock, only 1 left!

0

21

Cub Cadet 732-04927

EXTENSION SPRING

$22.99

$

In Stock, Qty 20+

0

22

Cub Cadet 734-06305

DECK WHEEL (5.0 DIA x 1.875)
(Superseded to 734-06305A)

$15.99

$

In Stock, Qty 16

0

23

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0264

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

26

Cub Cadet 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 8

0

27

Cub Cadet 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 938-04033

SHOULDER SCREW
(Superseded to 738-04033)

$

$

Not available

29

Cub Cadet 738-05081

SHOULDER SPACER

$7.49

$

In Stock, Qty 5

0

30

Cub Cadet 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

Note: 2

$7.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 942-04244A

23.25" BLADE (HIGH LIFT)
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

31

Cub Cadet 490-110-C131

Cub Cadet 46" BLADE SET

Note: Retail Packaged Part

$

$

Not available

31

Cub Cadet 490-110-M131

Genuine Factory Parts 46" HI LIFT BLADE SET
(Superseded to 490-110-Y110)

Note: Retail Packaged Part

$68.99

$

In Stock, only 4 left!

0

32

Cub Cadet 747-05608A

DECK SPRING HOOK

$3.49

$

In Stock, Qty 20+

0

33

Cub Cadet 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 9

0

35

Cub Cadet 750-06192A

SPACER

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 754P06135

V-BELT A SEC x 120.8

$66.99

$

In Stock, only 1 left!

0

36

Cub Cadet 490-501-C082

Cub Cadet 46" RZT DECK BELT

Note: Retail Packaged Part

$66.99

$

In Stock, only 1 left!

0

36

Cub Cadet 490-501-Y082

Troy-Bilt 46" RZT DECK BELT

Note: Retail Packaged Part

$

$

Currently unavailable

37

Cub Cadet 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

38

Cub Cadet 783-06464

DECK WASH PLUG

$4.49

$

In Stock, Qty 14

0

39

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

40

Cub Cadet 783E08619A

BELT KEEPER
(Superseded to 783Z08619A)

$24.99

$

In Stock, Qty 20+
