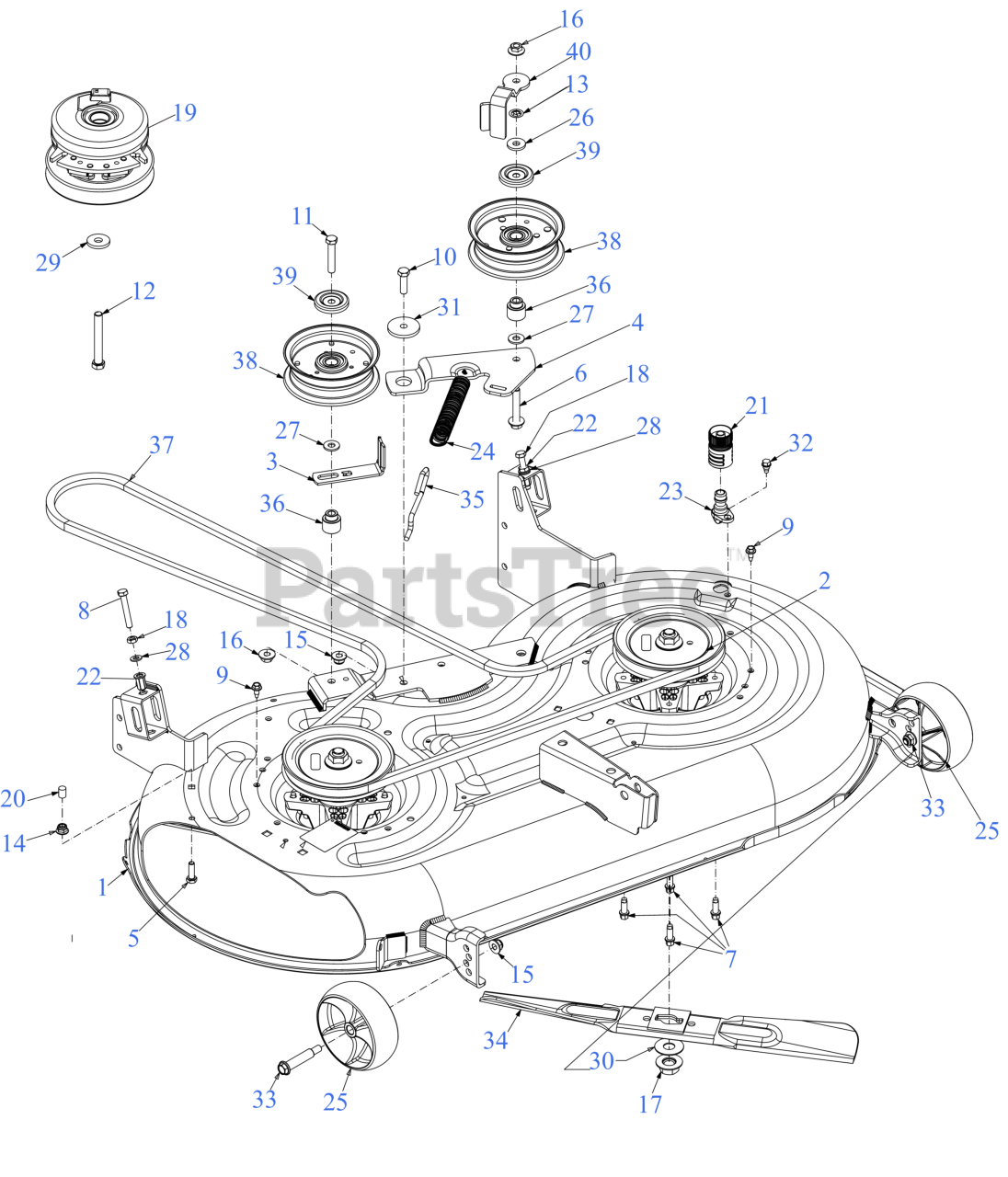

ZT1-42 KW (17AIEACSA10) - Cub Cadet Ultima 42" Zero-Turn Mower, Kawasaki (2023) Deck Parts Diagram

Ultima 42" Zero-Turn Mower, Kawasaki

Deck Parts Diagram

  • Title

1

Cub Cadet 603P08691

42" DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$821.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618P09260

SPINDLE ASSEMBLY (6.3 DIA)

Note: (See Separate Breakdown)

$132.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-09583

BELT GUARD BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09583-0637

Belt Guard Bracket - POWDER BLACK (0637)

$13.99

$

In Stock, only 3 left!

0

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703E26741

42" IDLER PIVOT BRACKET
(Superseded to 703Z26741)

$29.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

6

Cub Cadet 710-06215

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, Qty 6

0

8

Cub Cadet 710-07494

SCREW-FULL THREAD 5/16-18 GR5

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 11

0

11

Cub Cadet 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 9

0

12

Cub Cadet 710-3157A

SCREW 7/16-20 x 3.25 GR5

$10.99

$

In Stock, only 3 left!

0

13

Cub Cadet 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 18

0

17

Cub Cadet 712-05134

FLANGE NUT 5/8-18

$6.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3007

HEX NUT

$6.99

$

In Stock, Qty 5

0

19

Cub Cadet 917-05121

ELECTRIC PTO CLUTCH

$477.99

$

In Stock, only 1 left!

0

20

Cub Cadet 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 7

0

21

Cub Cadet 921-04041

WATER NOZZLE ADAPTER

$23.99

$

In Stock, Qty 20+

0

22

Cub Cadet 728-05043

NUT RIVET 5/16-18

$5.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 4 left!

0

24

Cub Cadet 732-05484

EXTENSION SPRING .94 x 6.75 RZT

$11.99

$

In Stock, only 1 left!

0

25

Cub Cadet 734-06305A

DECK WHEEL (5.0 DIA x 1.875)

$15.99

$

In Stock, Qty 16

0

25

Cub Cadet 490-325-C073

Cub Cadet 5" DECK WHEEL (06305A) (W/BOLT)

Note: Retail Package Part

$39.99

$

In Stock, only 1 left!

0

26

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 1 left!

0

27

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 736-0264

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

29

Cub Cadet 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 8

0

30

Cub Cadet 736-3088

FLAT WASHER .635X1.585X.062 HDN

$4.49

$

In Stock, only 2 left!

0

31

Cub Cadet 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

32

Cub Cadet 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 16

0

33

Cub Cadet 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

$7.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 742P05528

21.23" BLADE (2IN1) (S SHAPE CENTER HOLE)

$24.99

$

In Stock, Qty 20+

0

34

Cub Cadet 742P05177A-X

21.23" XTREME BLADE (2IN1) (S SHAPE CENTER HOLE)

$33.99

$

In Stock, only 2 left!

0

34

Cub Cadet 742P05177-L

21.23" LOW LIFT BLADE (S SHAPE CENTER HOLE)

$36.99

$

In Stock, only 2 left!

0

35

Cub Cadet 747-08710

DECK SPRING HOOK

$3.99

$

In Stock, only 1 left!

0

36

Cub Cadet 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 11

0

37

Cub Cadet 754P06134

V-BELT A SEC x 117.0

$56.99

$

In Stock, Qty 14

0

37

Cub Cadet 490-501-C081

Cub Cadet 42" RZT DECK BELT

Note: Retail Packaged Part

$56.99

$

In Stock, only 4 left!

0

37

Cub Cadet 490-501-Y081

Troy-Bilt 42" RZT DECK BELT

Note: Retail Packaged Part

$

$

Currently unavailable

38

Cub Cadet 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

39

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

40

Cub Cadet 783E08619A

BELT KEEPER
(Superseded to 783Z08619A)

$24.99

$

In Stock, Qty 5

0
