ZT1-42 KH (17RREACS010) - Cub Cadet Ultima 42" Zero-Turn Mower, Kohler (2021) Deck Parts Diagram

Ultima 42" Zero-Turn Mower, Kohler

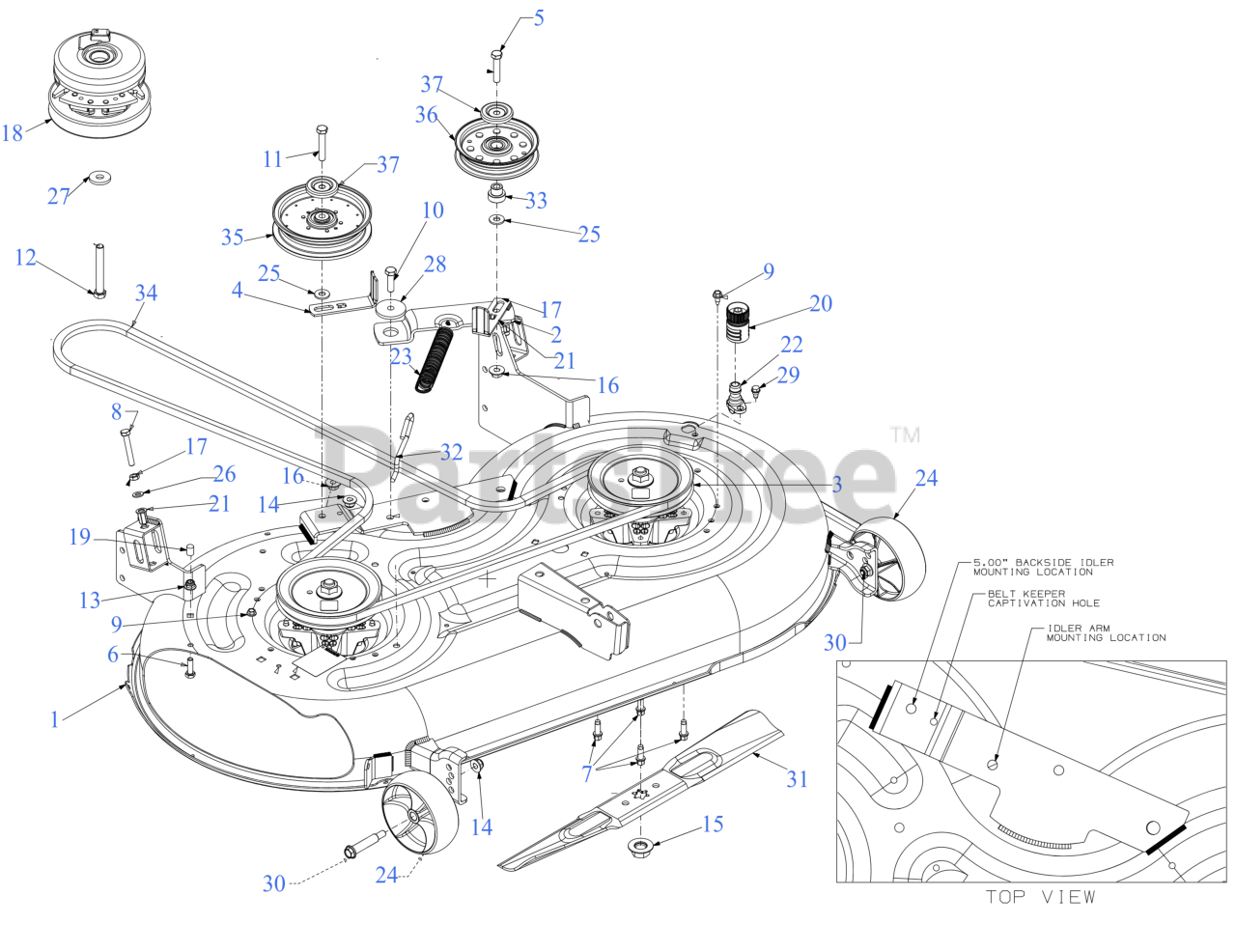

Deck Parts Diagram

  • Title

1

Cub Cadet 603P05741

42" DECK SHELL
(Superseded to 753-11170A)

Note: *CHOOSE COLOR WHEN ORDERING*

$861.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603P06259A

IDLER PIVOT BRACKET

$49.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-04822B

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$121.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-09583

BELT GUARD BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-09583-0637

Belt Guard Bracket - POWDER BLACK (0637)

$13.99

$

In Stock, only 3 left!

0

$11.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0347

HEX SCREW 3/8-16 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, only 4 left!

0

7

Cub Cadet 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, Qty 16

0

8

Cub Cadet 710-07494

SCREW-FULL THREAD 5/16-18 GR5

$4.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 11

0

11

Cub Cadet 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.49

$

In Stock, Qty 9

0

12

Cub Cadet 710-3157A

SCREW 7/16-20 x 3.25 GR5

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 18

0

17

Cub Cadet 712-3007

HEX NUT

$6.99

$

In Stock, Qty 5

0

18

Cub Cadet 917-05121

ELECTRIC PTO CLUTCH

$477.99

$

In Stock, only 1 left!

0

19

Cub Cadet 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 7

0

20

Cub Cadet 921-04041

WATER NOZZLE ADAPTER

$23.99

$

In Stock, Qty 20+

0

21

Cub Cadet 728-05043

NUT RIVET 5/16-18

$5.49

$

In Stock, only 2 left!

0

22

Cub Cadet 731-07487

DECK WASH NOZZLE

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet 732-05484

EXTENSION SPRING .94 x 6.75 RZT

$11.99

$

In Stock, only 1 left!

0

24

Cub Cadet 734-06305

DECK WHEEL (5.0 DIA x 1.875)
(Superseded to 734-06305A)

$15.99

$

In Stock, Qty 16

0

25

Cub Cadet 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 736-0264

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

27

Cub Cadet 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 8

0

28

Cub Cadet 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

29

Cub Cadet 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 16

0

30

Cub Cadet 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

$7.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 942-04312A

21.23" BLADE (2N1)
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

32

Cub Cadet 747-08710

DECK SPRING HOOK

$3.99

$

In Stock, only 1 left!

0

33

Cub Cadet 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 754P06134

V-BELT A SEC x 117.0

$56.99

$

In Stock, Qty 14

0

35

Cub Cadet 756-04511B

FLAT IDLER PULLEY

$53.99

$

In Stock, Qty 20+

0

36

Cub Cadet 756-05042

IDLER PULLEY 4.25 DIA

$31.99

$

In Stock, Qty 20+

0

37

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+
