ZT1-42 E (34CBA2CS710) - Cub Cadet Ultima 42" Zero-Turn Mower, Electric (2023) Control Panel Parts Diagram

Ultima 42" Zero-Turn Mower, Electric

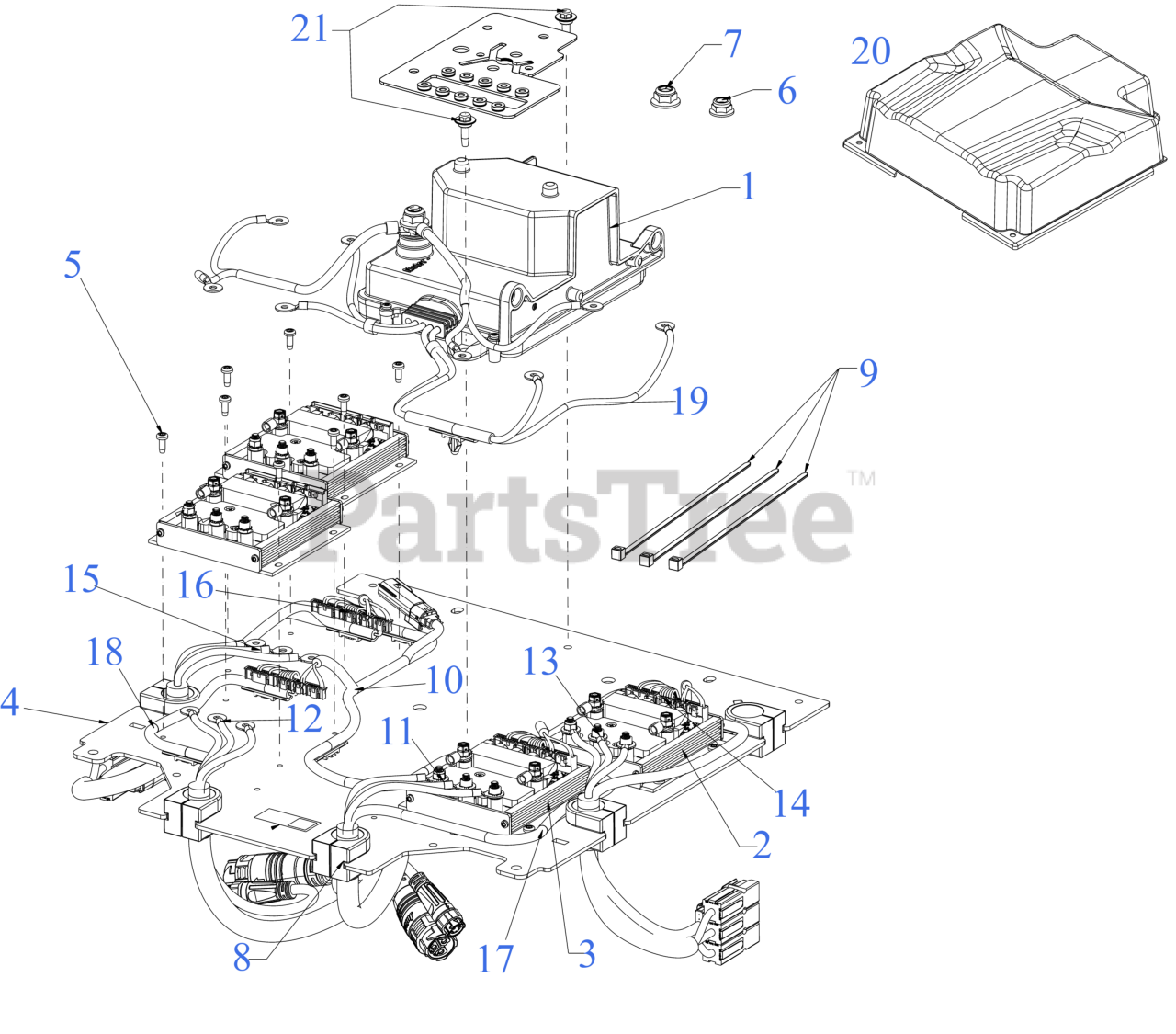

Control Panel Parts Diagram

  • Title

1

Cub Cadet 625P09115

PDM HOUSING (4FUSE)

$770.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 625P09118

MOTOR CONTROLLER (TRACT)

$267.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 625P09120

MOTOR CONTROLLER (DECK)

$557.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-28101A

PLATE

$127.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 7039

SCREW 8-32X.437

Note: TORQUE 16.5 - 23.5 IN-LBS

$4.99

$

In Stock, only 2 left!

0

6

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

Note: TORQUE 75-90 IN-LBS

$3.99

$

In Stock, only 4 left!

0

7

Cub Cadet 712-04065

NUT

Note: TORQUE 105-130 IN-LBS

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 721-07112

GROMMET

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 725P18413

HARNESS (CAN/CTRL)

$73.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 725P18416

HARNESS (L/DECK/PH)

$96.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 725P18421

HARNESS (R/DECK/PH)

$95.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 725P18424

HARNESS (L/TRAC/PH)

$92.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725P18426

HARNESS (L/TRAC/SEN)

$49.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 725P18434

HARNESS (R/TRAC/PH)

$73.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 725P18435

HARNESS (R/TRAC/SEN)

$49.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 725P18437

HARNESS (L/DECK/SEN)

$41.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 725P18438

HARNESS (R/DECK/SEN)

$39.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 725P18460

HARNESS (BAT/CP/PDM)

$223.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731P27441

COVER

$30.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 738-05090

SHOULDER SCREW M6-1 .368 X.115

Note: TORQUE 40-50 IN-LBS

$3.49

$

In Stock, Qty 20+

0
