ZT1-42 E (34ABA2CSB10) - Cub Cadet Ultima 42" Zero-Turn Mower, Electric (2022) Operator Control Parts Diagram

Ultima 42" Zero-Turn Mower, Electric

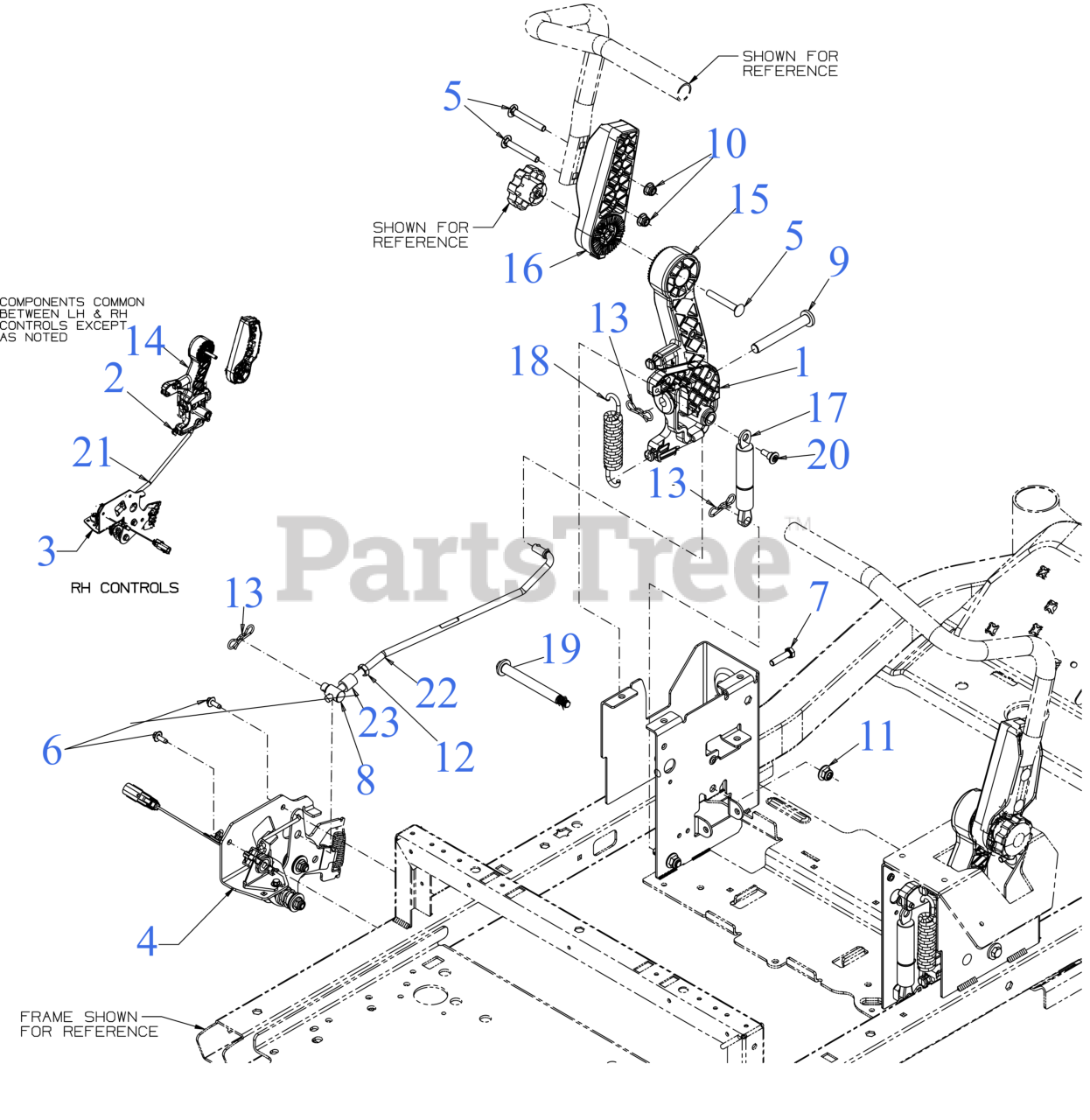

Operator Control Parts Diagram

  • Title
1

Cub Cadet 619-05550

CONTROL ACTUATOR (LH)

$

$

Not available

1

Cub Cadet 741-0748

FLANGE BUSHING

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 619-05551

CONTROL ACTUATOR (RH)

$

$

Not available

2

Cub Cadet 741-0748

FLANGE BUSHING

Note: (Not Shown)

$11.99

$

Usually ships in 3-6 days

0

3

LAPBAR CONTROL (RH)

Note: (See Separate Breakdown)

$

$

Not available

4

LAPBAR CONTROL (LH)

Note: (See Separate Breakdown)

$

$

Not available

5

Cub Cadet 710-0572

BOLT 5/16-18 x 2.50 GR1

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 10

0

7

Cub Cadet 710-08694

SCREW 5/16-18 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 711-07921

CONTROL ROD FERRULE

$5.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-1206

CLEVIS PIN

$13.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, Qty 7

0

14

Cub Cadet 719-05614

LAPBAR ACTUATOR (RH)
(Superseded to 719-05614A)

$48.99

$

In Stock, only 3 left!

0

15

Cub Cadet 719-05752

LAPBAR ACTUATOR (LH)
(Superseded to 719-05752A)

$48.99

$

In Stock, only 1 left!

0

16

Cub Cadet 719-05893

UPPER ADJUSTMENT HANDLE
(Superseded to 719-05893B)

$27.99

$

In Stock, only 1 left!

0

17

Cub Cadet 727-05274A

DAMPNER CYLINDER
(Superseded to 727-05654)

$43.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 732-05966A

EXTENSION SPRING .57 x 5.38

$8.99

$

In Stock, only 3 left!

0

19

Cub Cadet 738-05694

SHOULDER SCREW .491x3.937 3/8-16

$5.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 738-06055

SHOULDER SCREW .394X.280:1/4-14

$2.99

$

In Stock, Qty 20+

0

21

Cub Cadet 747-11310

CONTROL ROD (RH)

$18.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 747-11311

CONTROL ROD (LH)

$18.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 750-0807

SPACER-.375X.625X.600

$6.49

$

Usually ships in 3-6 days

0
