ZT1-42 E (34ABA2CSB10) - Cub Cadet Ultima 42" Zero-Turn Mower, Electric (2022) Control Panel Parts Diagram

Ultima 42" Zero-Turn Mower, Electric

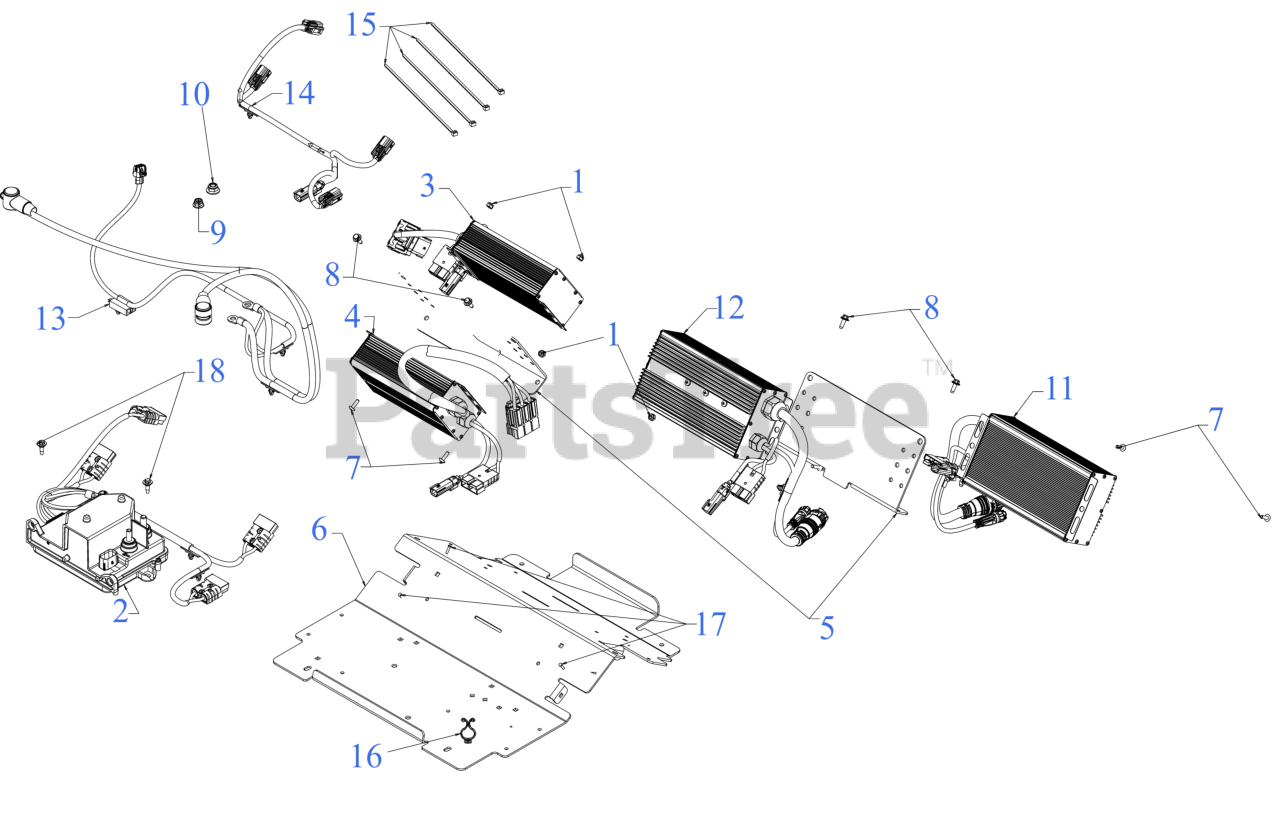

Control Panel Parts Diagram

  • Title

1

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet 625P08823

PDM HOUSING (4FUSE)

$336.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 625P08975

MOTOR CONTROLLER (L-TRAC)

$287.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 625P08976

MOTOR CONTROLLER (R-TRAC)

$287.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-25684

CONTROLLER BRACKET

$28.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-25726

CONTROLLER PLATE

$168.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0425

SCREW #10-24 x .62

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 5

0

9

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 725P17065

MOTOR CONTROL (L DECK)
(Superseded to 725P17065A)

$338.99

$

In Stock, only 2 left!

0

12

Cub Cadet 725P17066

MOTOR CONTROL (R DECK)

$

$

Not available

13

Cub Cadet 725P17074

HARNESS

$146.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725P17129

HARNESS

$84.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 726-0317

TIE CABLE 8.5 LG

$4.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 729-07541

TWIST LOCK CLIP

$3.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 729-08496

PANEL RATCHET CLIP .125 x .750

$4.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0

Cub Cadet 625-08980

PNL ASM:CONT:ERZ19:ELEC:2-DECK

Note: Complete

$

$

Currently unavailable
