ZT1-42 E (34ABA2CS710) - Cub Cadet Ultima 42" Zero-Turn Mower, Electric (2021) Lapbar Control (LH) Parts Diagram

Ultima 42" Zero-Turn Mower, Electric

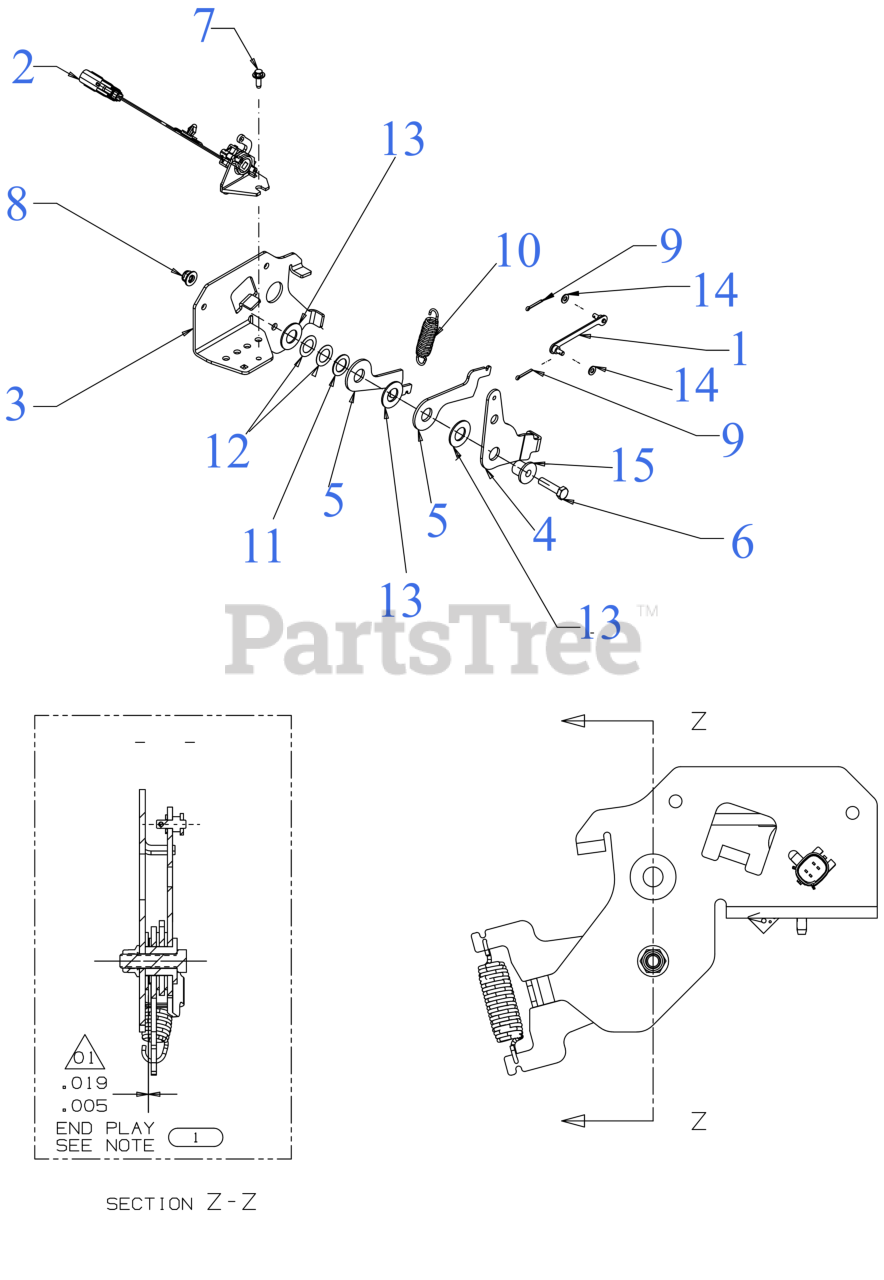

Lapbar Control (LH) Parts Diagram

  • Title

1

Cub Cadet 603-08728

CONTROL LINK (LH)
(Superseded to 603Z08728)

$29.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 625-07290

THROTTLE SENSOR ASSEMLBLY

$138.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 729-0359

HARNESS CLIP

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 924-04153

ROTARY SENSOR MAGNET

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-25505

CONTROL RETURN MOUNT (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$24.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-25526B

DRIVE CONTROL PLATE (LH)

$19.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-26749

CONTROL RETURN PLATE

$7.49

$

In Stock, only 1 left!

0

6

Cub Cadet 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 8

0

8

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, only 4 left!

0

9

Cub Cadet 714-0507

COTTER PIN 3/32

$4.49

$

In Stock, Qty 12

0

10

Cub Cadet 732-08273

EXTENSION SPRING .65 OD x 2.65 LG

$5.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 736-0337

FLAT WASHER

$4.49

$

In Stock, Qty 9

0

12

Cub Cadet 736-04337

SHIM WASHER .632X1.000X.010:HD

$3.99

$

In Stock, Qty 11

0

13

Cub Cadet 736-04602

FLAT WASHER NYLON 5/8

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 736-0931

FLAT WASHER .203 ID x .41 OD x .040

$4.99

$

In Stock, only 1 left!

0

15

Cub Cadet 738-07294

SHOULDER SPACER .32 x .625 x .66

$2.49

$

Usually ships in 3-6 days

0
