ZT1-42 E (34ABA2CS710) - Cub Cadet Ultima 42" Zero-Turn Mower, Electric (2021) Frame Parts Diagram

Ultima 42" Zero-Turn Mower, Electric

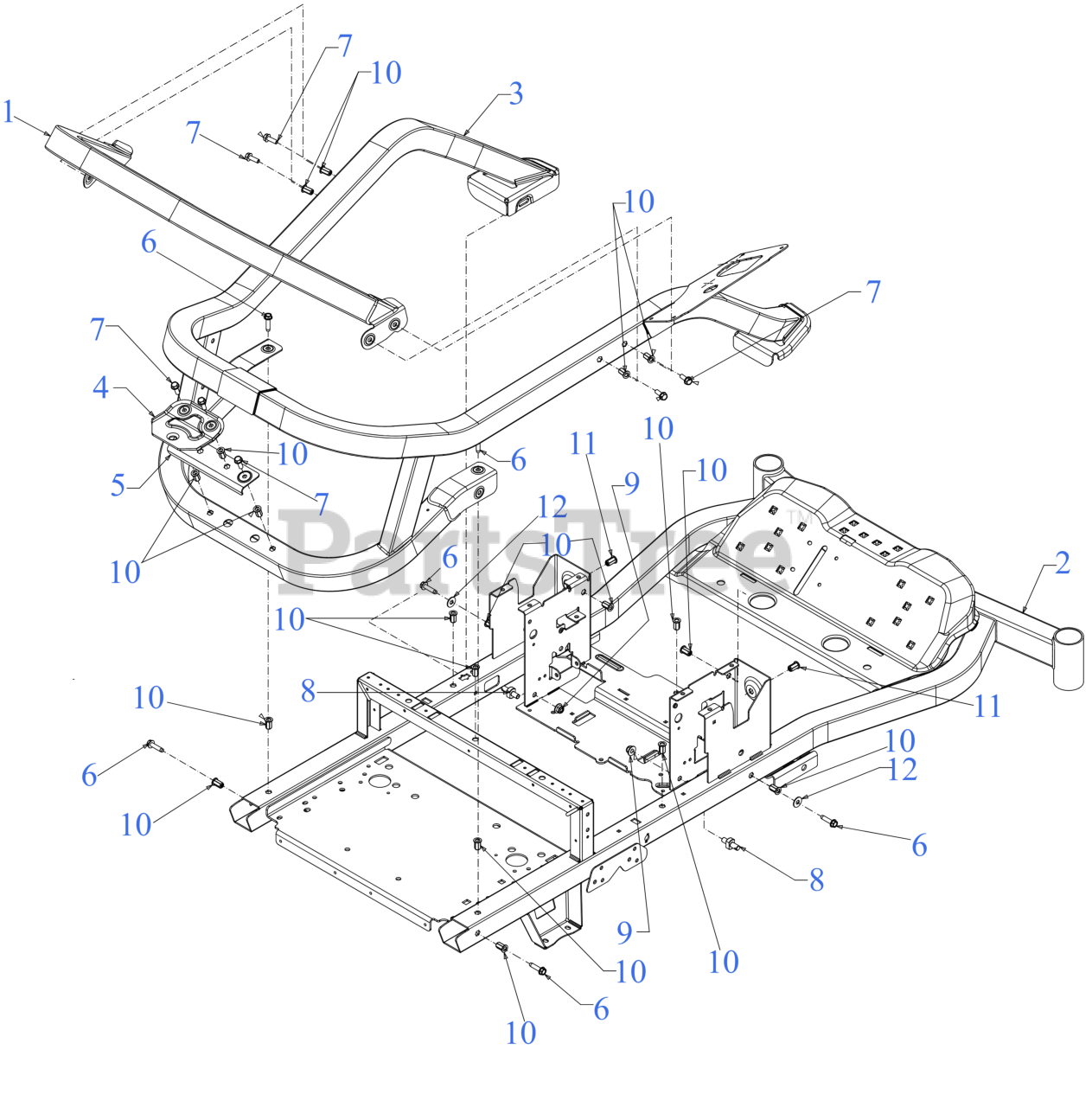

Frame Parts Diagram

  • Title

1

Cub Cadet 603-05519

UPPER FRAME HOOP

Note: *CHOOSE COLOR WHEN ORDERING*

$86.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-07880

FRAME (LOWER)

Note: *CHOOSE COLOR WHEN ORDERING*

$772.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-07899

FRAME (UPPER)

Note: *CHOOSE COLOR WHEN ORDERING*

$430.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-12302

HITCH PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$17.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-26064

HITCH MOUNT

Note: *CHOOSE COLOR WHEN ORDERING*

$23.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0817

SCREW 5/16-18 x 1.25

$6.99

$

In Stock, Qty 15

0

7

Cub Cadet 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-09802

SHOULDER STUD

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 728-05043

NUT RIVET 5/16-18

$5.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 728-05043

NUT RIVET 5/16-18

$5.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0
