ZT1-42 E (34ABA2CS710) - Cub Cadet Ultima 42" Zero-Turn Mower, Electric (2021) Drive Parts Diagram

Ultima 42" Zero-Turn Mower, Electric

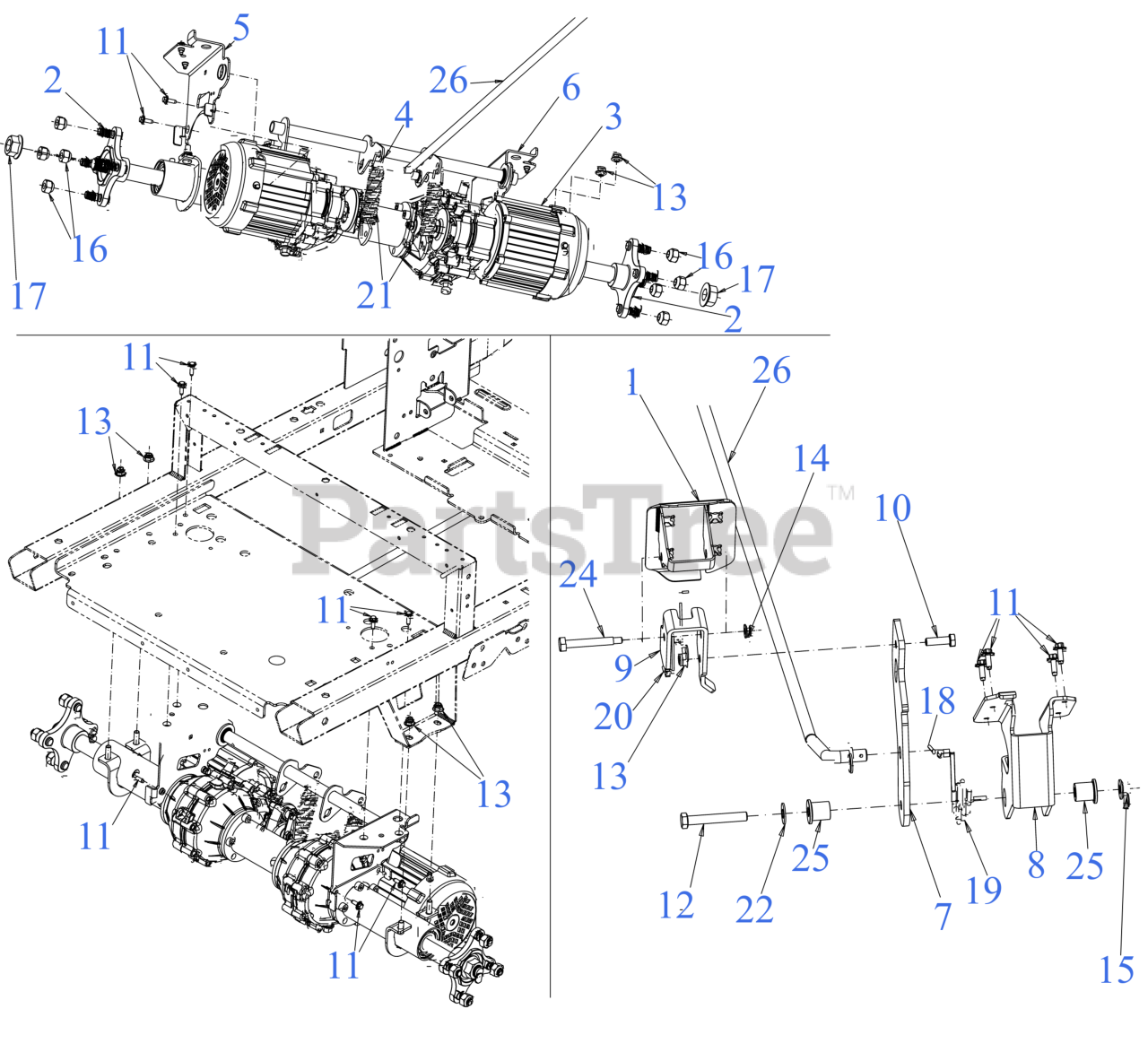

Drive Parts Diagram

  • Title

1

Cub Cadet 603-08440

PARK BRAKE PEDAL

Note: *CHOOSE COLOR WHEN ORDERING*

$43.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 618P0579B

WHEEL HUB ASSEMBLY

$77.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0852

STUD 7/16-14 x 1.6

$6.49

$

In Stock, only 4 left!

0

3

Cub Cadet 618P09895

TRANSMISSION (ELECTRIC)
(Superseded to 618P10056)

$1089.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 647-05713

ELECTRIC BRAKE SHAFT

Note: *CHOOSE COLOR WHEN ORDERING*

$44.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-25808

TRANSMISSION SUPPORT (RH)
(Superseded to 703E25808)

Note: *CHOOSE COLOR WHEN ORDERING*

$40.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-25824

TRANSMISSION SUPPORT (LH)
(Superseded to 703E25824)

Note: *CHOOSE COLOR WHEN ORDERING*

$38.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-26484

BRAKE PEDAL

Note: *CHOOSE COLOR WHEN ORDERING*

$32.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-26488

BRAKE PEDAL SUPPORT

Note: *CHOOSE COLOR WHEN ORDERING*

$30.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-26855

BRAKE PEDAL MOUNT

Note: *CHOOSE COLOR WHEN ORDERING*

$21.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 5

0

12

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-3050

LUG NUT 7/16-14

$9.99

$

In Stock, Qty 6

0

17

Cub Cadet 712-3078

HEX FLANGE NUT 3/4

$9.99

$

In Stock, Qty 20+

0

18

Cub Cadet 714-0470

COTTER PIN

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 732-08262

TORSION SPRING 1.391 ID x .56 LG

$5.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-08264

TORSION SPRING .405 ID x .425 LG

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 732-08287

SPRING .925 DIA x 5.37

$4.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 736-0267

FLAT WASHER

$4.49

$

In Stock, only 1 left!

0

24

Cub Cadet 738-04172A

SHOULDER SCREW

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 741-07070

FLANGE BEARING (.38x.75x.77)

$2.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 747-11371

BRAKE ROD

Note: *CHOOSE COLOR WHEN ORDERING*

$34.99

$

Usually ships in 3-6 days

0
