ZT1-42 E (34ABA2CS710) - Cub Cadet Ultima 42" Zero-Turn Mower, Electric (2021) Deck Parts Diagram

Ultima 42" Zero-Turn Mower, Electric

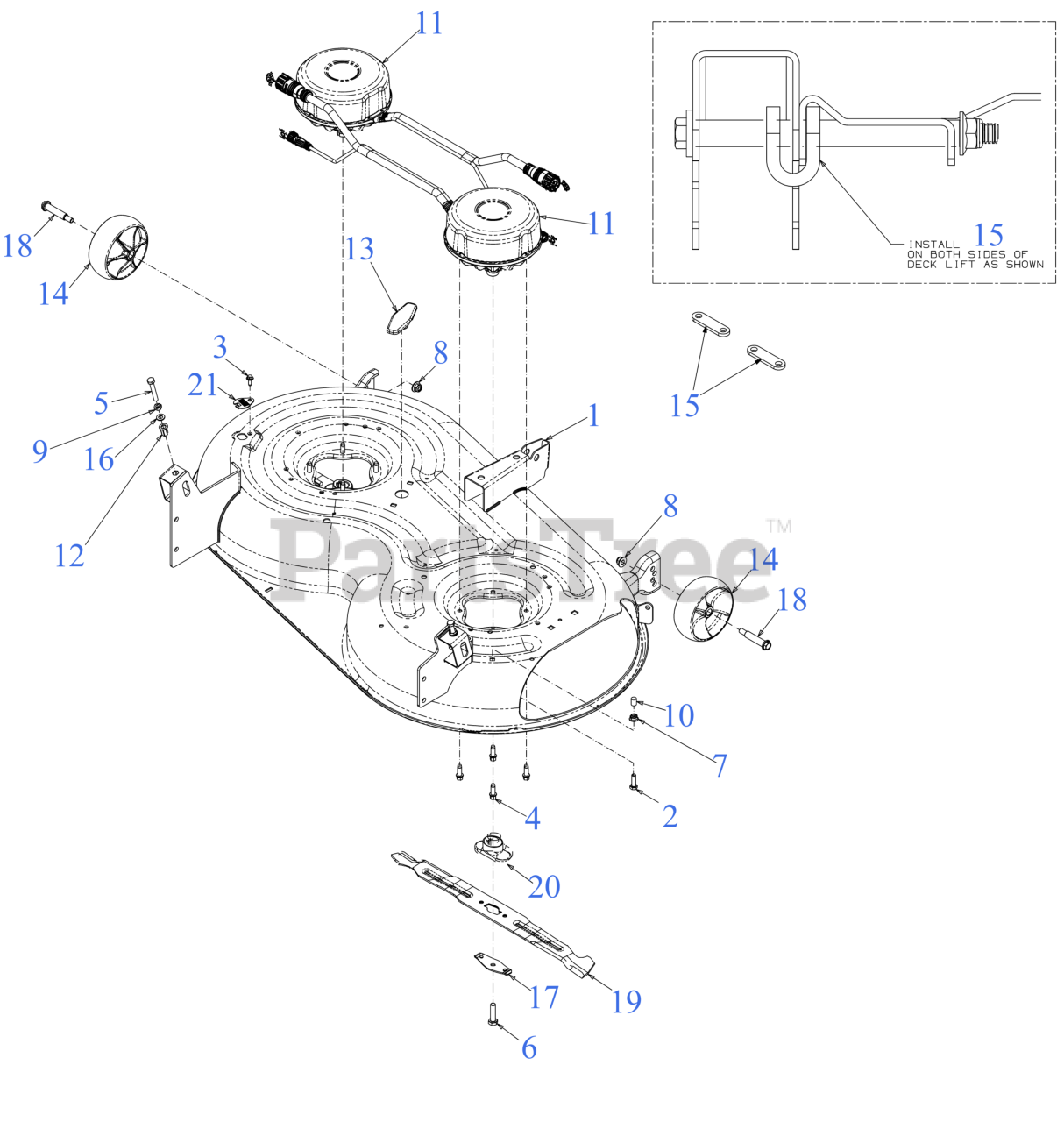

Deck Parts Diagram

  • Title

1

Cub Cadet 603-08695

42" DECK ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$272.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

3

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 8

0

4

Cub Cadet 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, only 1 left!

0

5

Cub Cadet 710-07494

SCREW-FULL THREAD 5/16-18 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-1044

SCREW 3/8-24 x 1.50 GR8

$3.99

$

In Stock, only 3 left!

0

7

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, only 4 left!

0

8

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3007

HEX NUT

$6.99

$

In Stock, only 3 left!

0

10

Cub Cadet 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 7

0

11

Cub Cadet 724P05189

48V ELECTRIC DECK MOTOR

$625.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 728-05043

NUT RIVET 5/16-18

$5.49

$

In Stock, only 2 left!

0

13

Cub Cadet 731-26430

DECK PLUG

$10.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 734-06305A

DECK WHEEL (5.0 DIA x 1.875)

$15.99

$

In Stock, Qty 16

0

14

Cub Cadet 490-325-C073

Cub Cadet 5" DECK WHEEL (06305A) (W/BOLT)

Note: Retail Package Part

$39.99

$

In Stock, only 1 left!

0

15

Cub Cadet 735-07221

DECK LIFT UPSTOP

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-0264

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

17

Cub Cadet 736-0524B

BLADE BELL SUPPORT
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 3 left!

0

18

Cub Cadet 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

$7.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 742P05720

21.18" MULCH BLADE (S SHAPE CENTER HOLE)

$34.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 490-110-C207

Cub Cadet 42" BLADE SET

Note: Retail Package Part

$67.99

$

In Stock, Qty 12

0

20

Cub Cadet 748-06644

BLADE ADAPTER (#6 X 1.19 W/S)

$11.99

$

In Stock, only 2 left!

0

21

Cub Cadet 783-06464

DECK WASH PLUG

$4.49

$

In Stock, Qty 14

0
