ZT-S46 KH (17ARCBDT897) - Columbia 46" Zero-Turn Mower, Kohler (2015) Steering Linkage Parts Diagram

46" Zero-Turn Mower, Kohler

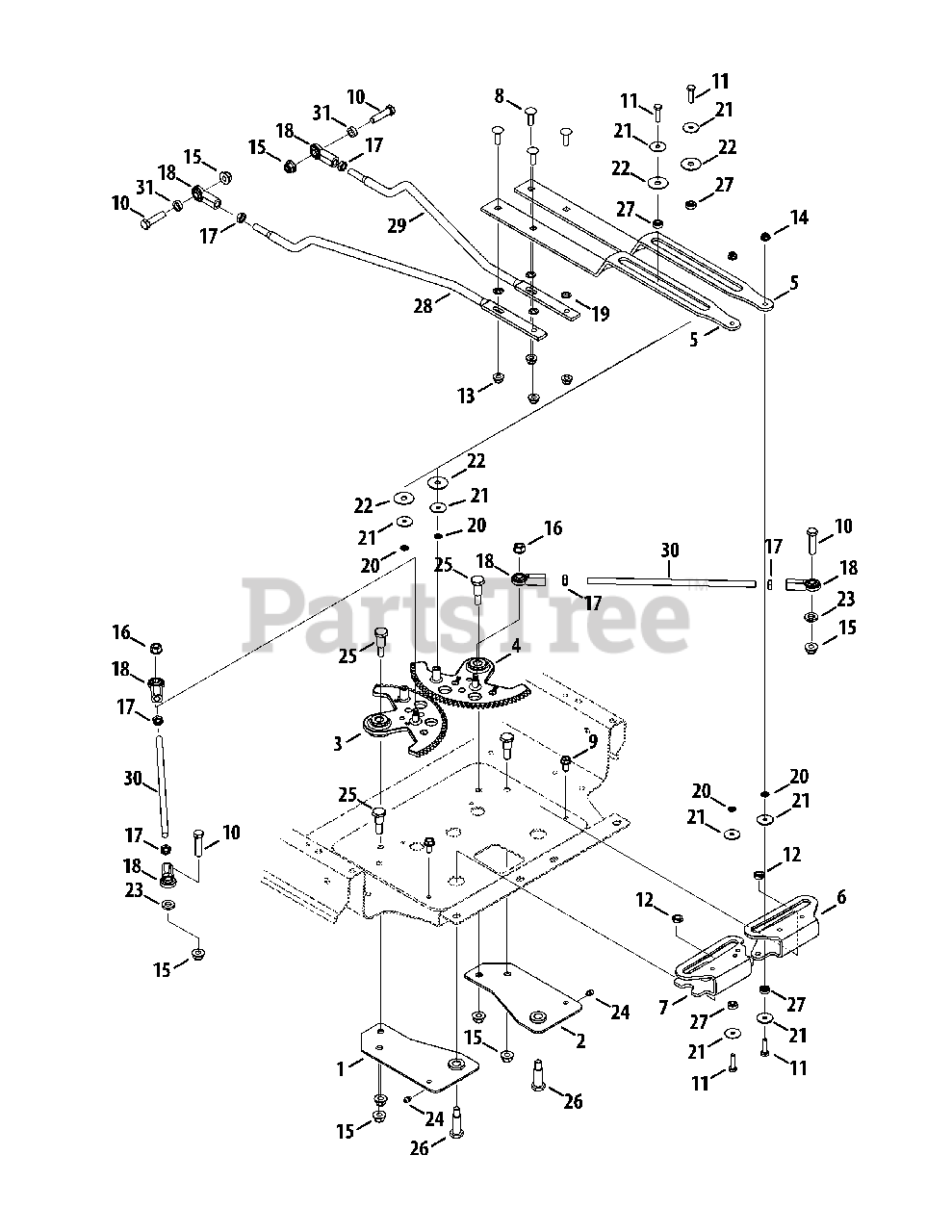

Steering Linkage Parts Diagram

  • Title

1

MTD 603-04976A-0637

Steering Plate Assembly, RH
(Superseded to 903-05298)

$43.99

$

Usually ships in 3-6 days

0

2

MTD 603-04980A-0637

Steering Plate Assembly, LH
(Superseded to 903-05299)

$43.99

$

Usually ships in 3-6 days

0

3

MTD 617-05018P

Steering Gear Assembly, RH

$96.99

$

In Stock, only 1 left!

0

4

MTD 617-05017P

Steering Gear Assembly, LH

$105.99

$

Usually ships in 3-6 days

0

5

MTD 703-08600

Control Link

$

$

Not available

6

MTD 703-08882

Speed Cam Plate, LH
(Superseded to 703-08882A)

$23.99

$

Usually ships in 3-6 days

0

7

MTD 703-08883

Speed Cam Plate, RH
(Superseded to 703-08883A)

$23.99

$

Usually ships in 3-6 days

0

8

MTD 710-0276

Carriage Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 11

0

9

MTD 710-04484

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0520

Hex Screw, 3/8-16 x 1.50

$4.49

$

In Stock, Qty 6

0

11

MTD 710-3220

Hex Screw, 1/4-20 x 1.00

$3.99

$

Usually ships in 3-6 days

0

12

MTD 712-0266A

Nut, Jamlock, 3/8-16

$3.99

$

In Stock, Qty 11

0

13

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 18

0

16

MTD 712-04339

Nut, 5/16-18, Centerlock

$3.99

$

In Stock, only 1 left!

0

17

MTD 712-0711

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

MTD 723-04080

Female Ball-Joint

$41.99

$

Usually ships in 3-6 days

0

19

MTD 726-0201

Speed Nut, .3125 ID

$6.99

$

Usually ships in 3-6 days

0

20

MTD 726-0233

Push Nut, .25 ID x .50 OD

$4.49

$

In Stock, only 3 left!

0

21

MTD 936-0211

Flat Washer, .285 x 1.25 x .060
(Superseded to 736-0211)

$6.99

$

In Stock, Qty 7

0

22

MTD 736-04639

Washer, .355 x 1.25 x .048

$3.49

$

In Stock, only 4 left!

0

23

MTD 736-3010

Flat Washer, .407 x .812 x .135

$4.99

$

In Stock, only 2 left!

0

24

MTD 937-3000

Grease Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

25

MTD 738-05046

Shoulder Screw, 3/8-16 x .625 x .875

$4.49

$

Usually ships in 3-6 days

0

26

MTD 738-1014

Shoulder Screw, .500 x 1.25 x 3/8-16

$4.49

$

In Stock, only 1 left!

0

27

MTD 741-04425

Ball Bearing, .25 x .625

$14.99

$

Usually ships in 3-6 days

0

28

MTD 747-05591A

Hydro Link, RH

$33.99

$

Usually ships in 3-6 days

0

29

MTD 747-05606A

Hydro Link, LH

$36.99

$

In Stock, only 1 left!

0

30

MTD 747-06130

Drag Link, .375 Dia.

$23.99

$

In Stock, only 3 left!

0

31

MTD 950-0535

Spacer, .380 ID x .625 OD x .21

$4.49

$

In Stock, only 4 left!

0
