ZT-S46 (17ARCBDT897) - Columbia 46" Zero-Turn Mower (2014) Seat Adjustment Parts Diagram
46" Zero-Turn Mower

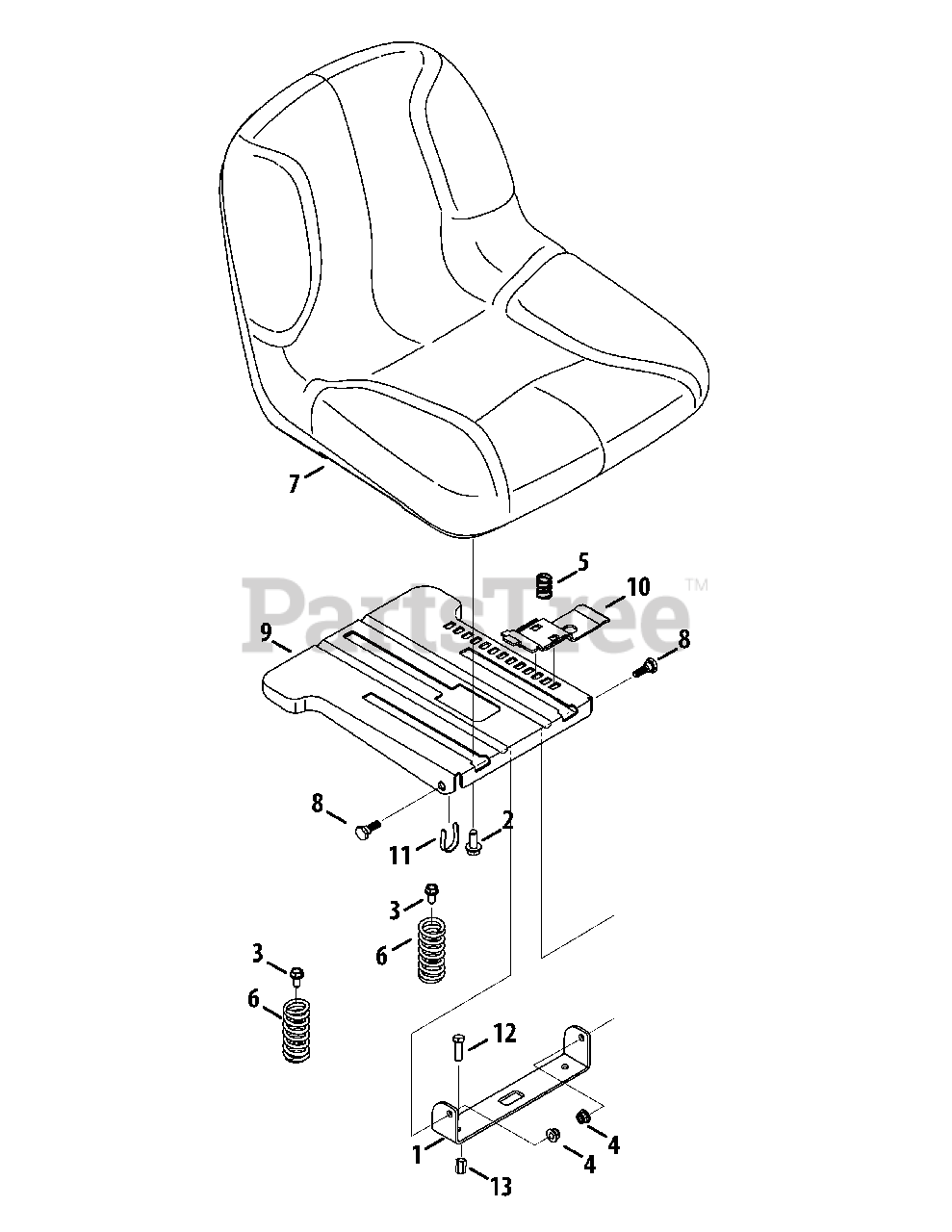

Seat Adjustment Parts Diagram
MTD 703-08734-0606
Seat Bracket
$26.99
$
Usually ships in 3-6 days
$4.49
$
In Stock, Qty 20+
MTD 710-04484
Hex Washer Screw 5/16-18 x .750
$3.99
$
In Stock, Qty 20+
MTD 712-04063
Flange Lock Nut 5/16-18
$3.99
$
In Stock, Qty 20+
MTD 732-04563
Compression Spring .68 x 1.065 x .055
$5.49
$
In Stock, Qty 20+
MTD 732-04849
Compression Spring 1.50 x 3.90 x .200
$13.99
$
In Stock, only 2 left!
$285.99
$
Usually ships in 3-6 days
$4.49
$
In Stock, Qty 20+
MTD 783-06049-0606
Seat Mount Bracket
$68.99
$
Usually ships in 3-6 days
MTD 783-06050
Seat Adjustment Lever
$10.99
$
Usually ships in 3-6 days
MTD 783-06448
Clip
$5.99
$
In Stock, only 3 left!
MTD 710-0643
Hex Hd. Cap Screw 5/16-18 x 1.0 Gr. 5
$6.99
$
In Stock, Qty 5
MTD 728-04068
Rivet Nut 5/16-18
$4.49
$
Usually ships in 3-6 days
