ZT-S46 (17ARCBDT897) - Columbia 46" Zero-Turn Mower (2014) Mower Deck Parts Diagram

46" Zero-Turn Mower

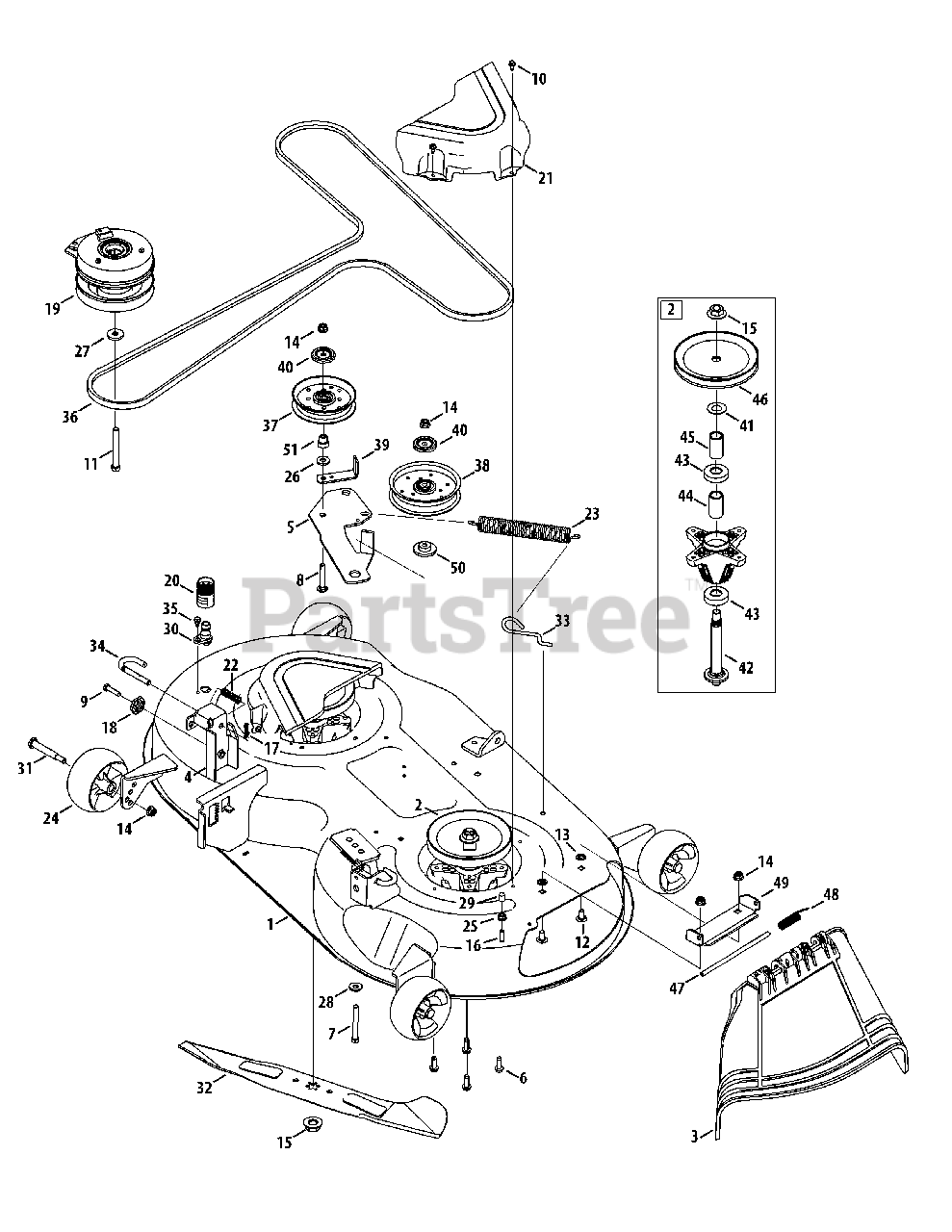

Mower Deck Parts Diagram

  • Title
1

MTD 903-05123-0606

46"Deck
(Superseded to 903-05123B-0606)

$

$

Not available

2

MTD 918-05078

Spindle Assembly
(Superseded to 918-05078A)

$155.99

$

In Stock, only 3 left!

0

3

MTD 631-05191

Chute Deflector Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

4

MTD 683-05124-0606

Deck Lift Bracket
(Superseded to 683-05124-0637)

$44.99

$

Usually ships in 3-6 days

0

5

MTD 703-08612A-0606

Idler Bracket
(Superseded to 703-08612A)

$23.99

$

Usually ships in 3-6 days

0

6

MTD 710-1260A

Hex Washer Head Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

7

MTD 710-3085

Hex Cap Screw 3/8-16 x 3.5

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-05376

Carriage Screw 3/8-16 x 1.75

$4.49

$

In Stock, only 3 left!

0

9

MTD 710-0573

Hex Cap Screw 5/16-18 x 1.25

$6.49

$

In Stock, Qty 13

0

10

MTD 710-1652

Hex Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3157A

Screw 7/16-20 x 3.25

$10.99

$

In Stock, Qty 20+

0

12

MTD 710-3178

Carriage Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-0229

Push Nut 3/8

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

16

MTD 710-0376

Hex Cap Screw 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

17

MTD 714-0162

Cotter Pin 3/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

18

MTD 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 9

0

19

MTD 917-05122A

Electric PTO Clutch

$515.99

$

Usually ships in 3-6 days

0

20

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

21

MTD 731-08698

Belt Cover
(Superseded to 731-08698B)

$21.99

$

In Stock, only 2 left!

0

22

MTD 932-3127

Compression Spring .66 x 1.9

$4.49

$

In Stock, Qty 20+

0

23

MTD 732-04927

Extension Spring 1.25 OD x 1.751

$22.99

$

In Stock, Qty 20+

0

24

MTD 734-04155

Deck Ball Wheel 5.0

$20.99

$

In Stock, Qty 20+

0

25

MTD 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

26

MTD 736-0262

Flat Washer .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

27

MTD 736-0322

Flat Washer .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

28

MTD 736-3052

Flat Washer .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

29

MTD 720-05010

Cap .290 x .500

$4.49

$

In Stock, Qty 7

0

30

MTD 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

31

MTD 938-3056

Shoulder Screw .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

32

MTD 942-04244A

Blade 2 in 1 23.25
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

33

MTD 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

34

MTD 747-06292

Deck Hanger Rod

$11.99

$

In Stock, only 2 left!

0

35

MTD 738-04278

Shoulder Screw .500 x 1/4-20

$6.99

$

In Stock, Qty 5

0

36

MTD 954-04325

V-Belt

$69.99

$

In Stock, only 1 left!

0

37

MTD 756-05042

Idler Pulley 4.25 Dia.

$31.99

$

In Stock, Qty 20+

0

38

MTD 756-04511B

Idler Pulley 5.00 Dia.

$53.99

$

In Stock, Qty 20+

0

39

MTD 703-09583-0637

Bracket Belt Guard

$13.99

$

In Stock, Qty 20+

0

40

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

41

MTD 936-0351

Washer .760 x 1.50 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

42

MTD 938-1128

Spindle Shaft

$46.99

$

In Stock, Qty 13

0

43

MTD 941-0919B

Ball Bearing

$21.99

$

In Stock, Qty 20+

0

44

MTD 750-04936

Spacer .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

45

MTD 750-1343

Spacer .8 x 1.1 x 2.26

$6.49

$

Usually ships in 3-6 days

0

46

MTD 756-04356

Deck Pulley

$37.99

$

In Stock, only 1 left!

0

47

MTD 711-04847B

Hinge Pin

$8.99

$

In Stock, Qty 7

0

48

MTD 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 8

0

49

MTD 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0

50

MTD 738-05013A

Shoulder Spacer

$6.49

$

In Stock, Qty 9

0

51

MTD 748-05029A

Shoulder Spacer

$4.99

$

In Stock, Qty 20+

0
