ZT-S46 (17ARCBDT897) - Columbia 46" Zero-Turn Mower (2014) Deck Lift Parts Diagram

46" Zero-Turn Mower

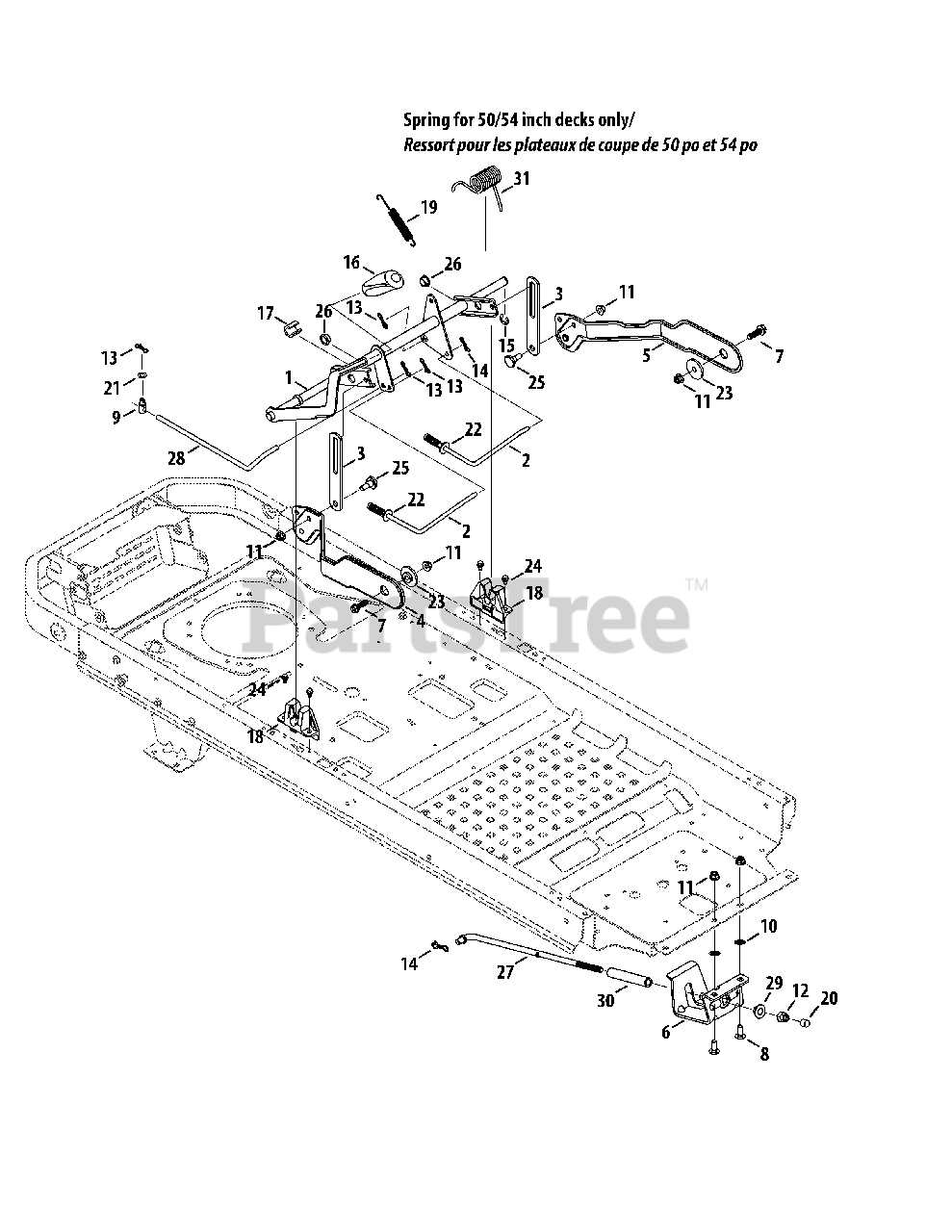

Deck Lift Parts Diagram

  • Title
1

MTD 603-04907B

Deck Lift Shift Assembly
(Superseded to 759-05057)

$127.99

$

Usually ships in 3-6 days

0

2

MTD 603-04267-0637

Brake Rod Assembly

$48.99

$

Usually ships in 3-6 days

0

3

MTD 703-08591A-0637

Lift Link Plate

$20.99

$

In Stock, only 2 left!

0

4

MTD 603-05107B-0637

Deck Lift Plate, RH

$95.99

$

In Stock, Qty 6

0

5

MTD 603-05108B-0637

Deck Lift Plate, LH

$95.99

$

In Stock, Qty 6

0

6

MTD 703-08644-0637

Rod Support Mounting Bracket
(Superseded to 703-08644A-0637)

$18.99

$

In Stock, only 1 left!

0

7

MTD 710-1315

Hex Washer Screw 3/8-16 x 1.250

$4.49

$

In Stock, only 2 left!

0

8

MTD 710-3168

Carriage Bolt 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

MTD 911-0832

Ferrule 3/8-24 x .375

$15.99

$

In Stock, only 4 left!

0

10

MTD 712-0229

Push Nut 3/8

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-05046

Flange Lock Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

13

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

14

MTD 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 18

0

15

MTD 916-0231

E-Type Ring .750
(Superseded to 716-0231)

$

$

Not available

16

MTD 720-04139B

Grip .50 ID

$18.99

$

In Stock, Qty 10

0

17

MTD 731-05297

Spacer .76 ID x .750 LG

$9.99

$

In Stock, only 2 left!

0

18

MTD 731-08782

Deck Lift Bracket

$8.99

$

Usually ships in 3-6 days

0

19

MTD 732-04587

Extension Spring .63 Dia. x 4.95 LG

$7.49

$

In Stock, Qty 12

0

20

MTD 726-05009

End Cap

$4.49

$

In Stock, Qty 20+

0

21

MTD 936-0314

Washer .375 x .700 x .030
(Superseded to 736-0314)

$

$

Not available

22

MTD 736-3078

Flat Washer .344 x 1.00 x .063

$4.49

$

In Stock, Qty 20+

0

23

MTD 738-05029

Shoulder Spacer .854 x .232

$9.99

$

Usually ships in 3-6 days

0

24

MTD 738-04278

Shoulder Screw .500 x 1/4-20

$6.99

$

In Stock, Qty 5

0

25

MTD 938-0507B

Shoulder Screw .500 Dia. x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

26

MTD 741-3084

Flange Bearing .751 x 1.125 x .375

$5.49

$

Usually ships in 3-6 days

0

27

MTD 747-05552A

Deck Lift Rod
(Superseded to 747-05552C)

$31.99

$

In Stock, only 2 left!

0

28

MTD 747-05592

Brake Rod
(Superseded to 747-05592B)

$22.99

$

Usually ships in 3-6 days

0

29

MTD 748-04069

Deck Lift pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

30

MTD 750-05658

Nylon Sleeve .55 ID x 4.50 LG

$6.99

$

In Stock, Qty 10

0

31

MTD 732-04947A

Torsion Spring 1.323 x 2.83

$18.99

$

Usually ships in 3-6 days

0
