ZT-S46 (17ARCBDT597) - Columbia 46" Zero-Turn Mower (2014) Operators Platform Parts Diagram

46" Zero-Turn Mower

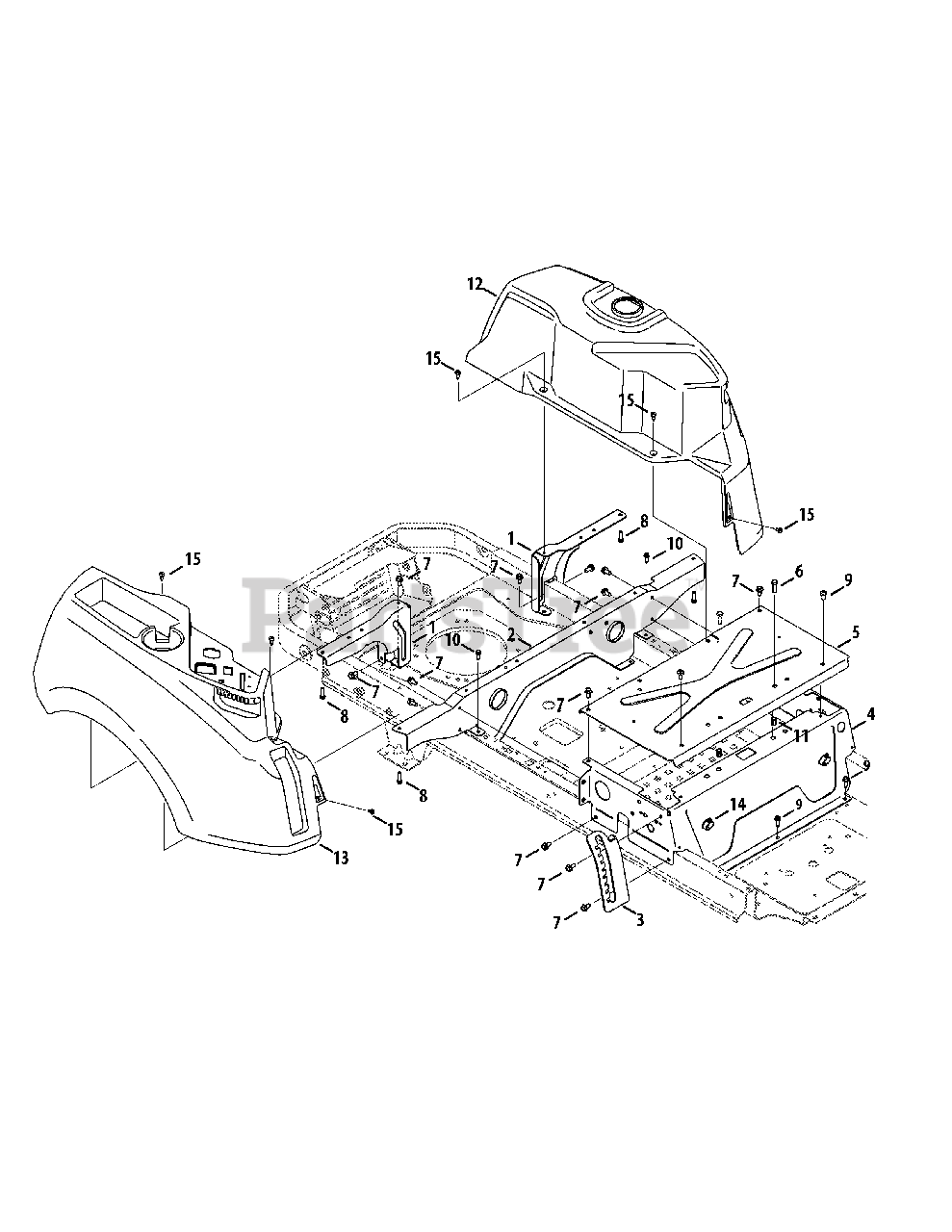

Operators Platform Parts Diagram

  • Title

1

MTD 703-08720A-0606

Rear Tank Bracket
(Superseded to 703-08720C-0606)

$26.99

$

Usually ships in 3-6 days

0

2

MTD 703-09332A-0606

Rear Seatbox Brace
(Superseded to 703-11179-0606)

$47.99

$

Usually ships in 3-6 days

0

3

MTD 703-08762C

Height Index Bracket

$16.99

$

In Stock, only 1 left!

0

4

MTD 703-09320-0606

Seat Frame
(Superseded to 703-09320F-0606)

$76.99

$

Usually ships in 3-6 days

0

5

MTD 703-09186B-0606

Seatbox Plate
(Superseded to 703-09186J-0606)

$39.99

$

Usually ships in 3-6 days

0

6

MTD 710-0376

Hex Cap Screw 5/16-18 x 1.00

$3.99

$

In Stock, only 4 left!

0

7

MTD 710-04484

Hex Washer Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-05109

Hex Washer Screw 5/16-14 x 1.00

$3.99

$

In Stock, Qty 5

0

9

MTD 710-05424

Self Tapping Screw 5/16-18 x .750

$3.49

$

In Stock, only 3 left!

0

10

MTD 710-0607

Hex Washer Screw 5/16-18 x .50

$6.99

$

In Stock, Qty 11

0

11

MTD 728-05012

Nut 5/16-18

$5.49

$

Usually ships in 3-6 days

0

12

MTD 931-08687A

LH Console
(Superseded to 931-08687B)

$116.99

$

In Stock, only 1 left!

0

13

MTD 931-09459

RH Console (w/RMC)

$116.99

$

Usually ships in 3-6 days

0

14

MTD 731-09477

Plastic Plug

$4.49

$

Usually ships in 3-6 days

0

15

MTD 738-04549A

Shoulder Screw 1/4-20

$7.49

$

In Stock, only 2 left!

0

16

MTD 710-04683A

Hex Wash Hd TT Scr. 3/8-16 x 1.0
(Superseded to 710-04683C)

$6.49

$

In Stock, only 3 left!

0

17

MTD 710-0607

Hex Wash Hd TT Scr. 5/6-18 x .5

$6.99

$

In Stock, Qty 11

0
