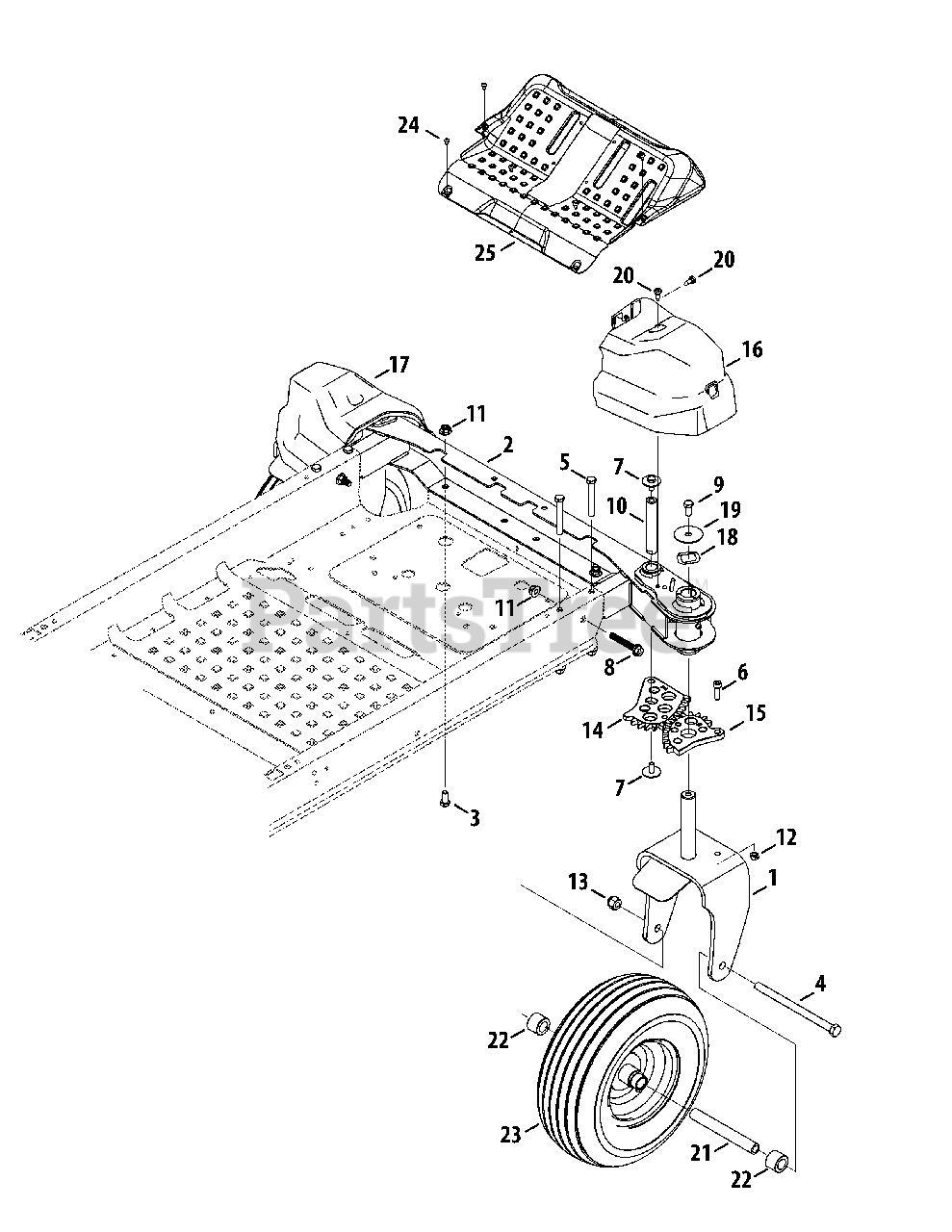

ZT-S46 (17ARCBDT597) - Columbia 46" Zero-Turn Mower (2014) Front Axle Parts Diagram

46" Zero-Turn Mower

Front Axle Parts Diagram

  • Title

1

MTD 603-05059C-0637

Caster Wheel Bracket
(Superseded to 603-05059D-0637)

$151.99

$

In Stock, only 1 left!

0

2

MTD 903-05063

Front Axle

$

$

Not available

3

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

4

MTD 710-04652

Bolt 1/2-20 x 7.25
(Superseded to 710-11661)

$6.49

$

In Stock, only 2 left!

0

5

MTD 710-04656

Screw 3/8-16 x 2.75
(Superseded to 710-04656A)

$6.49

$

Usually ships in 3-6 days

0

6

MTD 710-05398

Socket Head Screw 5/16-18 x 1.00

$3.49

$

In Stock, only 1 left!

0

7

MTD 710-06041

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, only 2 left!

0

8

MTD 710-06093

Hex Flange Screw 3/8-16 x 2.00

$4.99

$

Usually ships in 3-6 days

0

9

MTD 710-3119

Hex Cap Screw 3/8-16 x .750

$6.99

$

In Stock, only 1 left!

0

10

MTD 711-06081A

Pivot Gear Steering Shaft

$22.99

$

In Stock, only 2 left!

0

11

MTD 712-04217

Flange Lock Nut 3/8-16 Gr. 5

$4.49

$

In Stock, Qty 20+

0

12

MTD 912-3009

Hex Lock Nut 5/16-18
(Superseded to 712-3009)

$

$

Not available

13

MTD 912-3058

Hex Lock Nut 1/2-20

$5.99

$

In Stock, Qty 16

0

14

MTD 717-04952

12-Tooth Variable Gear

$53.99

$

In Stock, only 1 left!

0

15

MTD 717-05133

13-Tooth Variable Spur Gear

$51.99

$

In Stock, only 2 left!

0

16

MTD 731-09291

Axle Cover, RH

$20.99

$

In Stock, only 1 left!

0

17

MTD 731-09320

Axle Cover, LH
(Superseded to 731-09320A)

$20.99

$

In Stock, only 1 left!

0

18

736-05033a

Wave Washer, 1.25 x 1.00 x .300

$

$

Not available

19

MTD 738-05093

Shoulder Spacer 1.75 x .180

$6.49

$

In Stock, only 1 left!

0

20

MTD 738-04549A

Shoulder Screw 1/4-20

$7.49

$

In Stock, only 2 left!

0

21

MTD 750-04775A

Spacer .51 x .75 x 5.825

$28.99

$

In Stock, Qty 20+

0

22

MTD 750-04792

Hub .76 x 1.23 x .92

$7.99

$

In Stock, Qty 20+

0

23

MTD 634-04711-0911

Wheel Assembly 13 x 5 x 6 (Grey)
(Superseded to 634-04711A-0916)

$174.99

$

In Stock, only 1 left!

0

23

MTD 734-04255A-0901

Tire, Grooved, 13 x 5-6, CARLISLE
(Superseded to 734-04255A-0906)

Note: (not shown)

$82.99

$

In Stock, only 4 left!

0

23

MTD 734-04255A-0906

Tire, Grooved, 13 x 5-6, DELI

Note: (not shown)

$82.99

$

In Stock, only 4 left!

0

23

MTD 741-0990B

Bearing, Flange, .76 ID w/ Lube Fitting

Note: (not shown)

$10.99

$

In Stock, Qty 20+

0

23

MTD 741-0516B

Bearing, Flange, .76 x 1.0 x 1.2

Note: (not shown)

$6.49

$

In Stock, Qty 20+

0

24

MTD 710-04483

Self-Tapp Screw 1/4-20 x .50

$6.99

$

Usually ships in 3-6 days

0

25

MTD 703-08642A-0606

Floor Board
(Superseded to 703-08642B-0606)

$120.99

$

Usually ships in 3-6 days

0

26

MTD 710-06093

Hex Flange Screw 3/8-16 x 2.0

$4.99

$

Usually ships in 3-6 days

0
