ZT-S46 (17ARCBDT597) - Columbia 46" Zero-Turn Mower (2014) Engine Accessories (Kohler) Parts Diagram

46" Zero-Turn Mower

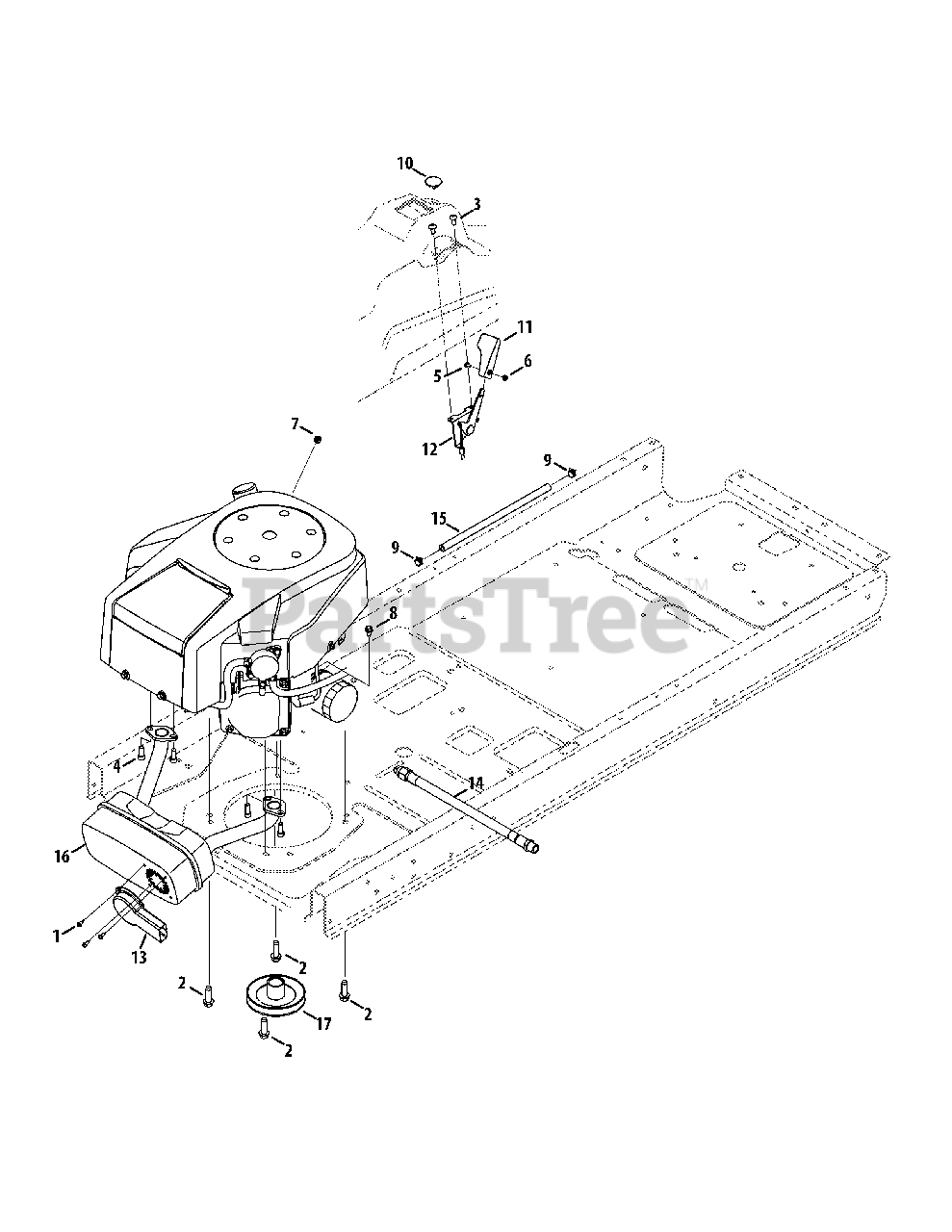

Engine Accessories (Kohler) Parts Diagram

  • Title

1

MTD 710-0227

Hex Washer Screw #8-18 x .500

$4.49

$

In Stock, Qty 15

0

2

MTD 710-04683A

Hex Washer Screw 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 3 left!

0

3

MTD 710-05070

Screw 1/4-20 x .50
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

4

MTD 710-1314A

Socket Head Screw 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-3217

Screw #8-32 x .375

$6.99

$

In Stock, Qty 7

0

6

MTD 712-0142

Hex Nut #8-32

$4.49

$

In Stock, Qty 9

0

7

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-1652

Hex Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

9

MTD 726-0205

Hose Clamp .490 Dia.

$3.99

$

In Stock, Qty 18

0

10

MTD 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

11

MTD 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

12

MTD 946-05145

Throttle/Choke Control Cable

$56.99

$

In Stock, only 2 left!

0

13

MTD 751-11053A

Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, only 3 left!

0

14

MTD 751-10291A

Oil Drain Hose
(Superseded to 751-10291C)

$52.99

$

In Stock, only 2 left!

0

15

MTD 751-10349-28

Fuel Hose, 1/4

$41.99

$

In Stock, only 1 left!

0

16

MTD 751-10528B

Twin Muffler
(Superseded to 951-10528B)

$160.99

$

In Stock, only 1 left!

0

17

MTD 756-04494

Engine Pulley
(Superseded to 756-04494C)

$35.99

$

In Stock, Qty 17

0
