ZT-S42 KH (17ARCBDS897) - Columbia 42" Zero-Turn Mower, Kohler (2015) Mower Deck 42-Inch Parts Diagram

42" Zero-Turn Mower, Kohler

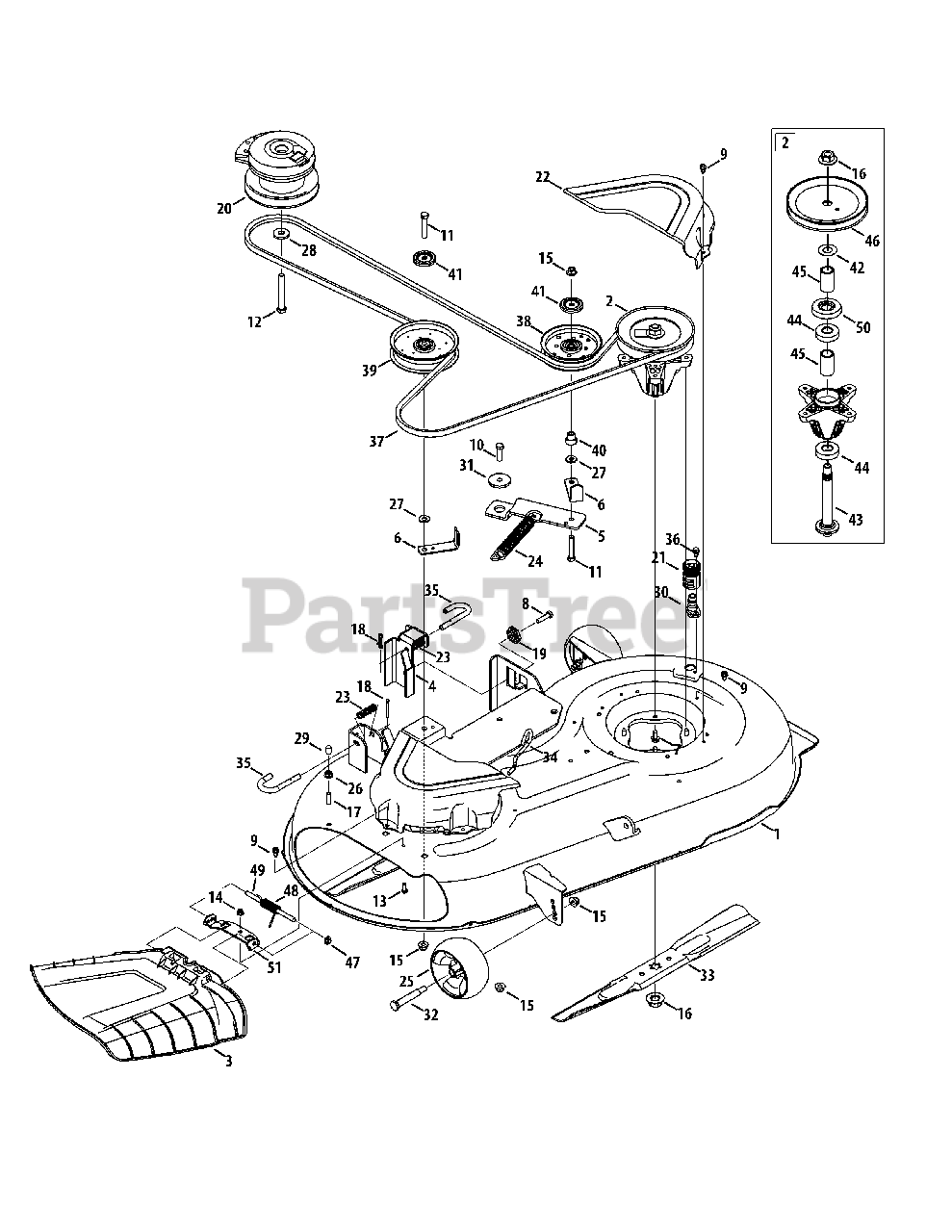

Mower Deck 42-Inch Parts Diagram

  • Title

1

MTD 903-05209-0606

42" Deck
(Superseded to 903-05209B-0606)

$843.99

$

Usually ships in 3-6 days

0

2

MTD 918-04822B

Spindle Assembly

$121.99

$

In Stock, only 1 left!

0

3

MTD 631-04354B

Chute Deflector Assembly
(Superseded to 631-04354C)

$43.99

$

In Stock, Qty 20+

0

4

MTD 603-05215-0637

Deck Lift Bracket
(Superseded to 603-05215A-0637)

$66.99

$

Usually ships in 3-6 days

0

5

MTD 703-08336C-0637

Pivot Idler Bracket
(Superseded to 703-08336E)

$31.99

$

In Stock, only 1 left!

0

6

MTD 703-09583-0637

Bracket Belt Guard

$13.99

$

In Stock, only 2 left!

0

7

MTD 710-1260A

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-3120

Hex Cap Screw, 3/8-16 x 1.50

$3.99

$

Usually ships in 3-6 days

0

9

MTD 710-1652

Hex Washer Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

11

MTD 710-3144

Hex Cap Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 7

0

12

MTD 710-3157A

Screw, 7/16-20 x 3.25

$10.99

$

In Stock, only 1 left!

0

13

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

17

MTD 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, only 4 left!

0

18

MTD 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

19

MTD 917-05298

Deck Adjustment Gear

$13.99

$

In Stock, only 1 left!

0

20

MTD 917-05121

Electric PTO Clutch

$477.99

$

In Stock, only 1 left!

0

21

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

22

MTD 731-08698

Belt Cover
(Superseded to 731-08698B)

$21.99

$

Usually ships in 3-6 days

0

23

MTD 932-3127

Compression Spring, .66 x 1.9

$4.49

$

In Stock, Qty 6

0

24

MTD 732-04960

Extension Spring, .94 Dia. x 7.57

$14.99

$

In Stock, only 1 left!

0

25

MTD 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

26

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

MTD 736-0262

Flat Washer, .385 x .870 x .092

$3.99

$

Usually ships in 3-6 days

0

28

MTD 736-0322

Flat Washer, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

29

MTD 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0

30

MTD 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, Qty 6

0

31

MTD 738-04162C

Shoulder Spacer, .884 x .190

$13.99

$

In Stock, Qty 20+

0

32

MTD 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

33

MTD 942-04312

Blade, 2 in 1, 21.23
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

34

MTD 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

35

MTD 747-06292

Deck Hanger Rod

$11.99

$

In Stock, only 1 left!

0

36

MTD 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 18

0

37

MTD 954-04033A

V-Belt

$50.99

$

In Stock, only 4 left!

0

38

MTD 756-05042

Idler Pulley, 4.25 Dia.

$31.99

$

In Stock, Qty 20+

0

39

MTD 756-04511B

Idler Pulley, 5.00 Dia.

$53.99

$

In Stock, Qty 20+

0

40

MTD 748-05029A

Shoulder Spacer

$4.99

$

In Stock, Qty 20+

0

41

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

42

MTD 936-0351

Washer, .760 x 1.50 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

43

MTD 738-1186A

Spindle Shaft

$49.99

$

In Stock, Qty 14

0

44

MTD 941-0919B

Ball Bearing

$21.99

$

In Stock, Qty 20+

0

45

MTD 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

46

MTD 756-05111

Deck Pulley

$29.99

$

In Stock, only 1 left!

0

47

MTD 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 1 left!

0

48

MTD 732-05261

Spring, Torsion, .440 ID x 1.75

$5.99

$

In Stock, only 3 left!

0

49

MTD 747-06290B

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

50

MTD 783-08435

Bearing Shield

$7.49

$

Usually ships in 3-6 days

0

51

MTD 783-08504A

Bracket, Chute, 42"
(Superseded to 783-08504B)

Variations

MTD 783-08504A-0637

Deflector Chute Mounting Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 7

0

$14.99

$

In Stock, Qty 7

0
