ZT-S42 KH (17ARCBDS897) - Columbia 42" Zero-Turn Mower, Kohler (2015) Deck Lift Parts Diagram

42" Zero-Turn Mower, Kohler

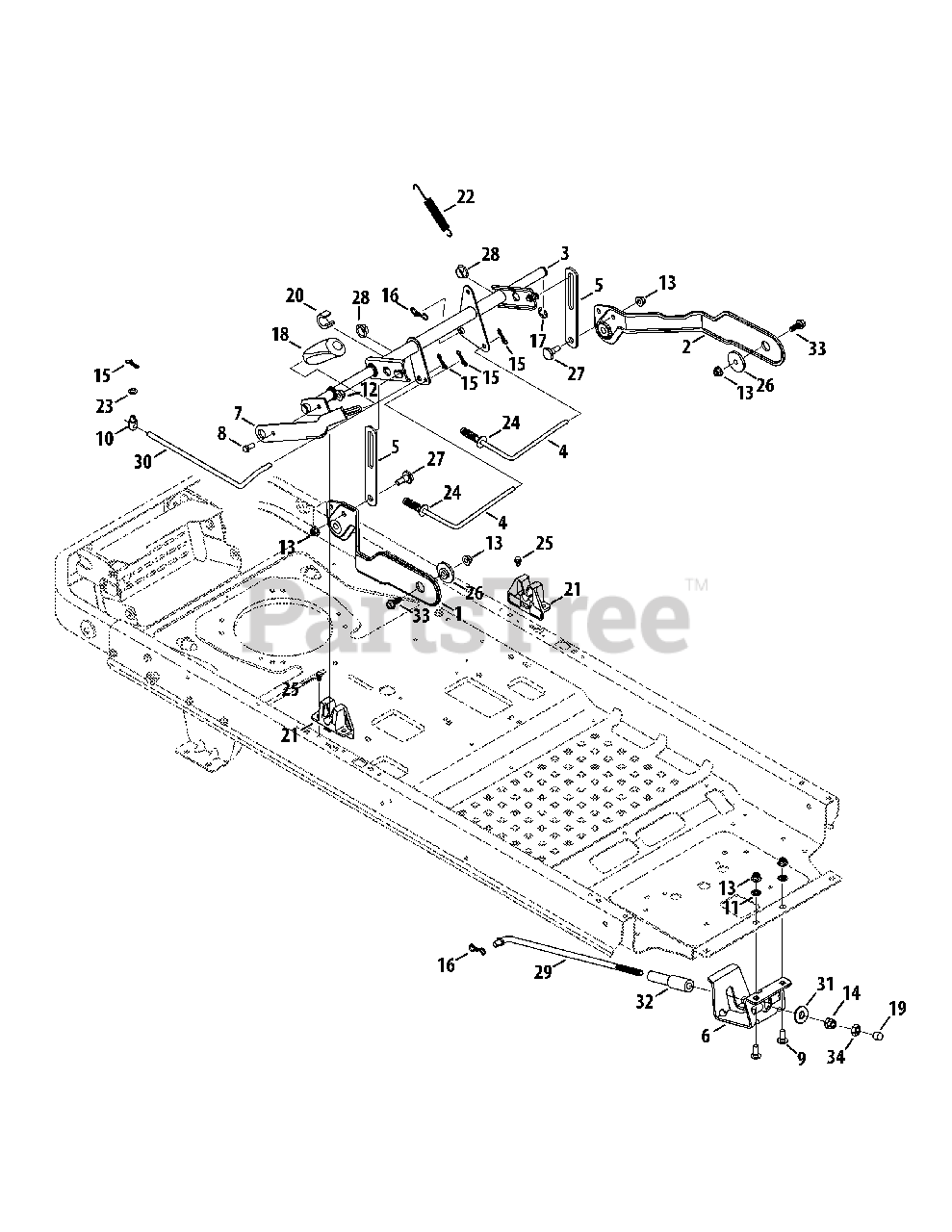

Deck Lift Parts Diagram

  • Title

1

MTD 603-05107B-0637

Deck Lift Plate, RH

$95.99

$

In Stock, Qty 6

0

2

MTD 603-05108B-0637

Deck Lift Plate, LH

$95.99

$

In Stock, Qty 6

0

3

MTD 903-05137

Deck Lift Shift Assembly

$106.99

$

Usually ships in 3-6 days

0

4

MTD 647-04267

Brake Rod Assembly

$30.99

$

Usually ships in 3-6 days

0

5

MTD 703-08591A-0637

Lift Link Plate

$20.99

$

In Stock, only 4 left!

0

6

MTD 703-08644-0637

Rod Support Mounting Bracket
(Superseded to 703-08644A-0637)

$18.99

$

In Stock, only 1 left!

0

7

MTD 703-09621

Deck Lift Handle
(Superseded to 703Z09621A)

$14.99

$

In Stock, Qty 9

0

8

MTD 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

10

MTD 911-0832

Ferrule, 3/8-24 x .375

$15.99

$

In Stock, only 4 left!

0

11

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 18

0

14

MTD 712-05046

Hex Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

15

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

16

MTD 714-05005

Bow-Tie Cotter Pin

$4.99

$

Usually ships in 3-6 days

0

17

MTD 916-0231

E-Type Ring, .750
(Superseded to 716-0231)

$

$

Not available

18

MTD 720-04139B

Grip, .50 ID

$18.99

$

In Stock, only 1 left!

0

19

MTD 726-05009

End Cap

$4.49

$

In Stock, Qty 20+

0

20

MTD 731-05297

Spacer, .76 ID x .750 LG

$9.99

$

In Stock, only 2 left!

0

21

MTD 731-08782

Deck Lift Bracket

$8.99

$

Usually ships in 3-6 days

0

22

MTD 732-04587

Extension Spring, .63 Dia. x 4.95 LG

$7.49

$

In Stock, Qty 12

0

23

MTD 936-0314

Washer, .375 x .700 x .030
(Superseded to 736-0314)

$

$

Not available

24

MTD 736-3078

Flat Washer, .344 x 1.00 x .063

$4.49

$

In Stock, Qty 20+

0

25

MTD 738-04278

Shoulder Screw, .500 x 1/4-20

$6.99

$

In Stock, Qty 5

0

26

MTD 738-05029

Shoulder Spacer, .854 x .232

$9.99

$

In Stock, only 2 left!

0

27

MTD 938-0507B

Shoulder Screw, .500 Dia. x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

28

MTD 741-3084

Flange Bearing, .751 x 1.125 x .375

$5.49

$

In Stock, only 2 left!

0

29

MTD 747-05552C

Deck Lift Rod

$31.99

$

In Stock, only 2 left!

0

30

MTD 747-05592B

Brake Rod

$22.99

$

Usually ships in 3-6 days

0

31

MTD 748-04069

Deck Lift pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 15

0

32

MTD 750-05658

Nylon Sleeve, .55 ID x 4.50 LG

$6.99

$

In Stock, Qty 10

0

33

MTD 710-04683C

Screw, 3/8-16 x 1.00

$6.49

$

In Stock, only 2 left!

0

34

MTD 912-3048

Jam Nut, 1/2-13
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 18

0
