ZT-L54 KH (17BRCACW897) - Columbia 54" Zero-Turn Mower, Kohler (2015) Mower Deck 54-Inch Parts Diagram

54" Zero-Turn Mower, Kohler

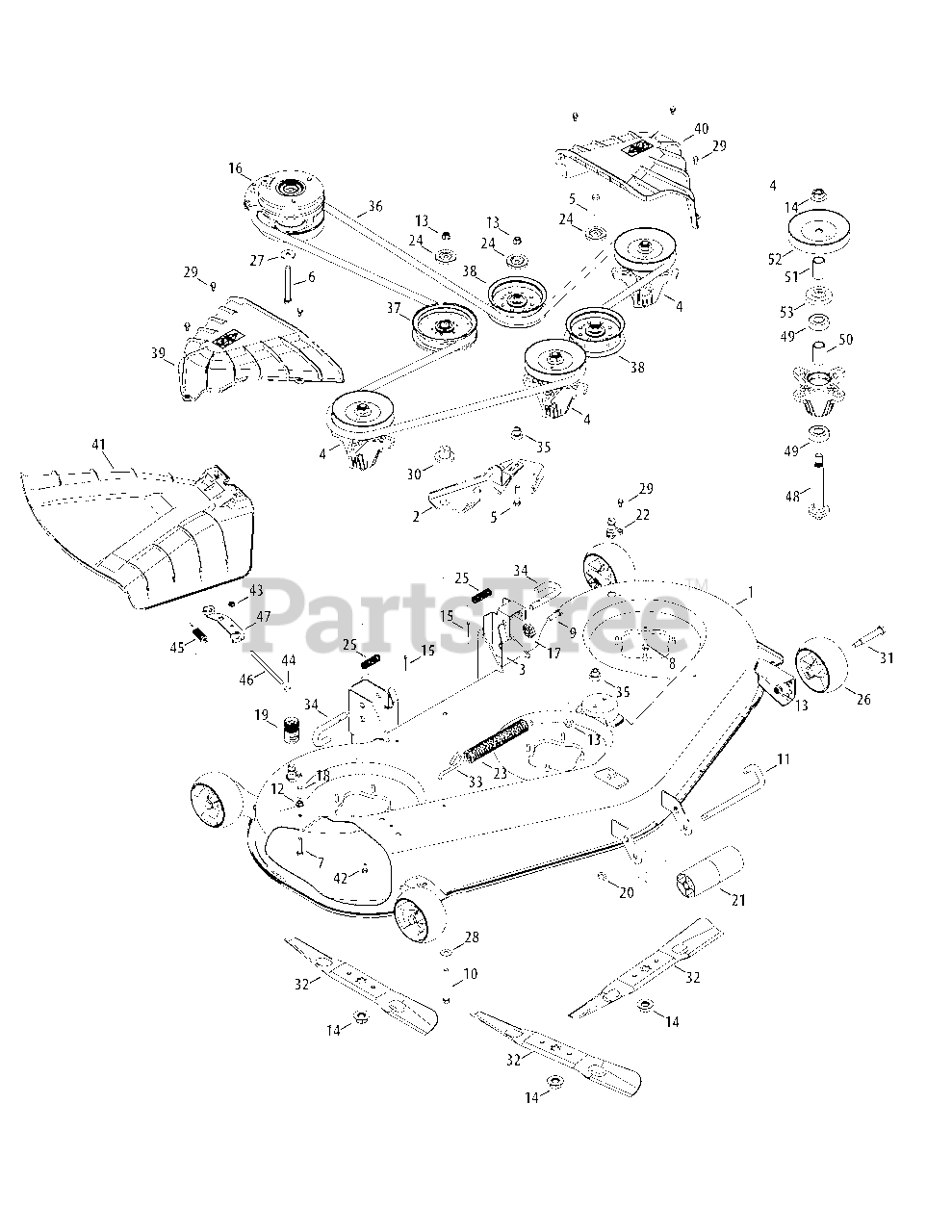

Mower Deck 54-Inch Parts Diagram

  • Title

1

MTD 903-05190-0606

54" Deck
(Superseded to 903-05190C-0606)

$1121.99

$

Usually ships in 3-6 days

0

2

MTD 903-05211

Deck Idler Assembly
(Superseded to 603-05350B-0637)

$69.99

$

Usually ships in 3-6 days

0

3

MTD 603-05215-0637

Deck Lift Bracket
(Superseded to 603-05215A-0637)

$66.99

$

Usually ships in 3-6 days

0

4

MTD 918-06978

Spindle Assembly

$140.99

$

In Stock, Qty 20+

0

5

MTD 710-0347

Hex Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

6

MTD 710-04379A

Hex Cap Screw, 7/16-20 x 3.50

$6.49

$

In Stock, only 3 left!

0

7

MTD 710-0805A

Hex Head Screw, 5/16-18 x 1.50

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-1260A

Hex Washer Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-3120

Hex Flange Screw, 3/8-16

$3.99

$

In Stock, Qty 19

0

10

MTD 710-3130

Hex Bolt 3/8-16 x 3.25"

$10.99

$

In Stock, only 4 left!

0

11

MTD 711-06377

Roller Pin, 1/2 x 7.31 Lg

$20.99

$

Usually ships in 3-6 days

0

12

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

15

MTD 714-0162

Cotter Pin, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

16

MTD 917-05209

Clutch, Electric PTO

$545.99

$

In Stock, only 1 left!

0

17

MTD 917-05298

Deck Adjustment Gear

$13.99

$

In Stock, Qty 16

0

18

MTD 720-05075

Vinyl Cap, .29 x 1.00

$4.49

$

In Stock, only 2 left!

0

19

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

20

MTD 726-0299

Push Cap, 1/2

$8.49

$

In Stock, Qty 20+

0

21

MTD 731-05679B

Front Roller

$18.99

$

In Stock, Qty 20+

0

22

MTD 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

23

MTD 732-04927

Extension Spring, 1.25 OD x 1.751

$22.99

$

In Stock, Qty 20+

0

24

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

25

MTD 932-3127

Compression Spring, .66 x 1.9

$4.49

$

In Stock, Qty 20+

0

26

MTD 734-04155

Deck Ball Wheel, 5.0

$20.99

$

In Stock, Qty 20+

0

27

MTD 736-0322

Flat Washer, .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

28

MTD 936-0344

Flat Washer, .385 x 1.0 x .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

29

MTD 738-04502

Shoulder Screw, 1/4-20 x 0.50

$4.49

$

In Stock, Qty 20+

0

30

MTD 738-05081

Shoulder Spacer

$7.49

$

In Stock, Qty 20+

0

31

MTD 938-3056

Shoulder Screw, .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

32

MTD 942-05056A

Blade, 18.67

$30.99

$

In Stock, Qty 20+

0

33

MTD 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

34

MTD 747-06292

Deck Hanger Rod

$11.99

$

In Stock, only 2 left!

0

35

MTD 748-05029A

Shoulder Spacer

$4.99

$

In Stock, Qty 20+

0

36

MTD 954-04329A

V-Belt

$100.99

$

In Stock, only 4 left!

0

37

MTD 756-04511B

Idler Pulley, 5.00 Dia.

$53.99

$

In Stock, Qty 20+

0

38

MTD 756-05034

Pulley, Idler, 4.50" Dia.
(Superseded to 756-05034A)

$45.99

$

In Stock, Qty 20+

0

39

MTD 731-09968

Belt Cover, RH
(Superseded to 731-09968B)

$28.99

$

In Stock, Qty 20+

0

40

MTD 731-09969A

Belt Cover, LH
(Superseded to 731-09969C)

$28.99

$

In Stock, Qty 20+

0

41

MTD 631-05116B

Chute Deflector Assembly

$54.99

$

In Stock, Qty 20+

0

42

MTD 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

43

MTD 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

44

MTD 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 2 left!

0

45

MTD 732-05261

Spring, Torsion, .440 ID x 1.75

$5.99

$

In Stock, Qty 20+

0

46

MTD 747-06290B

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

47

MTD 783-08504A

Bracket, Chute, 42"
(Superseded to 783-08504B)

Variations

MTD 783-08504A-0637

Deflector Chute Mounting Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0

48

MTD 738-1186A

Spindle Shaft, 6.11 Long

$49.99

$

In Stock, Qty 14

0

49

MTD 941-0919B

Ball Bearing

$21.99

$

In Stock, Qty 20+

0

50

MTD 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

51

MTD 750-06152

Spacer, .792 x 1.060 x 1.782

$6.49

$

In Stock, Qty 8

0

52

MTD 756-05038

Deck Pulley

$25.99

$

In Stock, only 1 left!

0

53

MTD 783-08435

Bearing Shield

$7.49

$

Usually ships in 3-6 days

0
