ZT-L54 (17AFCACK897) - Columbia 54" Zero-Turn Tractor (2014) Deck 54-Inch Parts Diagram

54" Zero-Turn Tractor

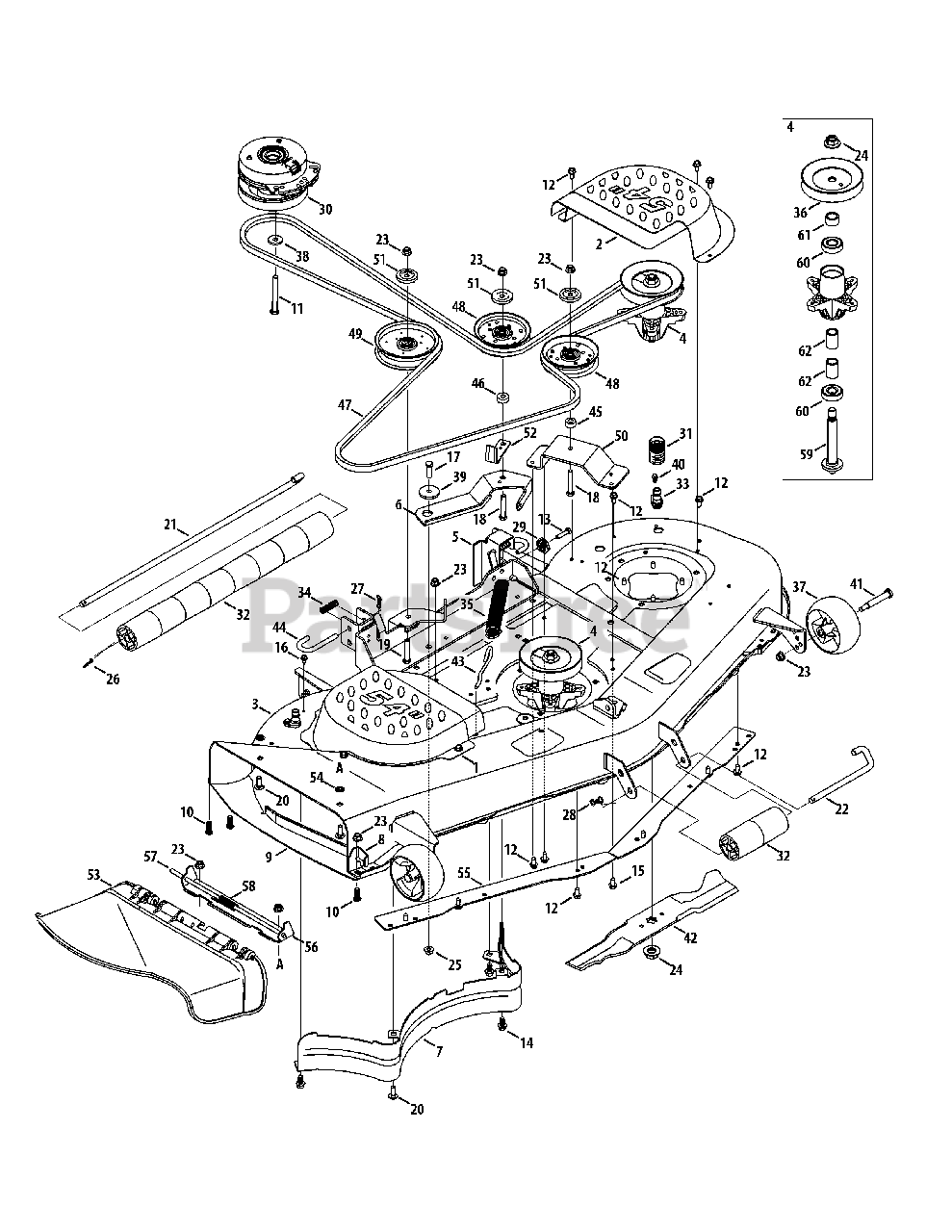

Deck 54-Inch Parts Diagram

  • Title

1

MTD 603-05004-0606

Belt Cover, RH

$91.99

$

Usually ships in 3-6 days

0

2

MTD 603-05005-0606

Belt Cover, LH

$

$

Not available

3

MTD 903-05119-0606

54-Inch Deck

$815.99

$

Usually ships in 3-6 days

0

4

MTD 918-05137

Spindle Assembly

$141.99

$

In Stock, only 3 left!

0

5

MTD 683-05124-0606

Deck Lift Bracket
(Superseded to 683-05124-0637)

$44.99

$

Usually ships in 3-6 days

0

6

MTD 703-05825C-0606

Idler Arm
(Superseded to 703-05825C-0637)

$54.99

$

In Stock, only 2 left!

0

7

MTD 703-2093C-0637

Inner Baffle

$96.99

$

In Stock, only 2 left!

0

8

MTD 703-3279

Stop Bracket

Variations

MTD 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$40.99

$

In Stock, only 1 left!

0

MTD 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$40.99

$

In Stock, only 1 left!

0

MTD 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$40.99

$

In Stock, only 1 left!

0

MTD 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$40.99

$

In Stock, only 1 left!

0

MTD 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$40.99

$

In Stock, only 1 left!

0

MTD 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$40.99

$

In Stock, only 1 left!

0

MTD 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$40.99

$

In Stock, only 1 left!

0

MTD 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$40.99

$

In Stock, only 1 left!

0

MTD 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$40.99

$

In Stock, only 1 left!

0

MTD 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$40.99

$

In Stock, only 1 left!

0

MTD 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$40.99

$

In Stock, only 1 left!

0

MTD 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$40.99

$

In Stock, only 1 left!

0

$40.99

$

In Stock, only 1 left!

0

9

MTD 703-3511B-0637

Finger Guard

$69.99

$

In Stock, Qty 20+

0

10

MTD 710-04095

Hex Cap Screw 3/8-16, 1.00

$5.49

$

In Stock, Qty 20+

0

11

MTD 710-04379A

Hex Cap Screw 7/16-20 x 3.50

$6.49

$

In Stock, only 3 left!

0

12

MTD 710-04484

Hex Washer Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

13

MTD 710-0573

Hex Cap Screw, 5/16-18 x 1.25

$6.49

$

In Stock, Qty 13

0

14

MTD 710-0623

Hex Washer Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-0650

Self Tapping Screw 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-0599

Hex Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-3005

Hex Cap Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-3011

Hex Cap Screw 3/8-16, 2.25

$6.99

$

In Stock, Qty 19

0

19

MTD 710-3144

Hex Cap Screw 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-3168

Carriage Screw 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

21

MTD 711-06092

J-Hook

$29.99

$

In Stock, only 3 left!

0

22

MTD 711-3314A

Roller Pin 1/2-Inch x 7.31 Lg

$25.99

$

In Stock, Qty 11

0

23

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

24

MTD 712-0417A

Hex Flange Nut 5/8-18

$6.99

$

In Stock, Qty 20+

0

25

MTD 712-04217

Flange Lock Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

26

MTD 714-0162

Cotter Pin 5.32 x 1.25

$4.99

$

In Stock, Qty 20+

0

27

MTD 748-05029A

Idler Shoulder Spacer

$4.99

$

In Stock, Qty 20+

0

28

MTD 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 12

0

29

MTD 917-04074

Deck Adjustment Gear

$13.99

$

In Stock, Qty 9

0

30

MTD 917-05123A

Electric PTO Clutch

$636.99

$

Usually ships in 3-6 days

0

31

MTD 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

32

MTD 731-05679A

Front Roller
(Superseded to 731-05679B)

$18.99

$

In Stock, Qty 20+

0

33

MTD 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

34

MTD 932-3127

Compression Spring .66 x 1.9

$4.49

$

In Stock, Qty 20+

0

35

MTD 732-04927

Extension Spring 1.25 OD x 8.5

$22.99

$

In Stock, Qty 20+

0

36

MTD 756-04216

V-Type Pulley 5.39

$33.99

$

In Stock, only 1 left!

0

37

MTD 734-04155

Deck Ball Wheel 5.0

$20.99

$

In Stock, Qty 20+

0

38

MTD 736-0322

Flat Washer .450 x 1.25 x .164

$9.49

$

In Stock, Qty 8

0

39

MTD 738-04162C

Shoulder Spacer .884 x .190

$13.99

$

In Stock, Qty 20+

0

40

MTD 738-04278

Shoulder Screw .500 x 1/4-20

$6.99

$

In Stock, Qty 5

0

41

MTD 938-3056

Shoulder Screw .5 x 2.5 x 3/8-16

$9.49

$

In Stock, Qty 20+

0

42

MTD 942-0677B

Blade, 18.5

$30.99

$

In Stock, Qty 20+

0

43

MTD 747-05608

Deck Spring Rod
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

44

MTD 747-06292

Deck Hanger Rod

$11.99

$

In Stock, only 2 left!

0

45

MTD 750-05635

Spacer, .385 ID x .875 OD x .458

$4.49

$

Usually ships in 3-6 days

0

46

MTD 750-3119

Spacer, .406 ID x 1.00 OD x .380

$11.99

$

In Stock, only 4 left!

0

47

MTD 954-04329

V-Belt
(Superseded to 954-04329A)

$100.99

$

In Stock, only 4 left!

0

48

MTD 756-05042

Idler Pulley, 4.25 Dia

$31.99

$

In Stock, Qty 20+

0

49

MTD 756-04511B

Idler Pulley, 5.00 Dia.

$53.99

$

In Stock, Qty 20+

0

50

MTD 783-04726-0637

Bracket, Idler, Stationary

$36.99

$

Usually ships in 3-6 days

0

51

MTD 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

52

MTD 783-08027-0637

Belt Guard Bracket

$22.99

$

In Stock, only 1 left!

0

53

MTD 631-05057

Discharge Chute Assembly

$49.99

$

Usually ships in 3-6 days

0

54

MTD 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

55

MTD 783-04690B-0637

Deck Skirt

$42.99

$

In Stock, only 3 left!

0

56

MTD 703-09219

Chute Bracket

$26.99

$

Usually ships in 3-6 days

0

57

MTD 711-04565

Hinge Pin

$15.99

$

In Stock, only 3 left!

0

58

MTD 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 8

0

59

MTD 738-1186A

Spindle Shaft, 6.11 Long

$49.99

$

In Stock, Qty 14

0

60

MTD 941-0919B

Ball Bearing

$21.99

$

In Stock, Qty 20+

0

61

MTD 748-04302

Spacer, .82 x 1.15 x .69

$2.49

$

In Stock, only 2 left!

0

62

MTD 750-06055

Spacer, .792 x 1.06 x 1.52

$3.99

$

In Stock, only 2 left!

0
