ZT-L50 KH (17BRCACQ897) - Columbia 50" Zero-Turn Mower, Kohler (2016) Front Axle Parts Diagram

50" Zero-Turn Mower, Kohler

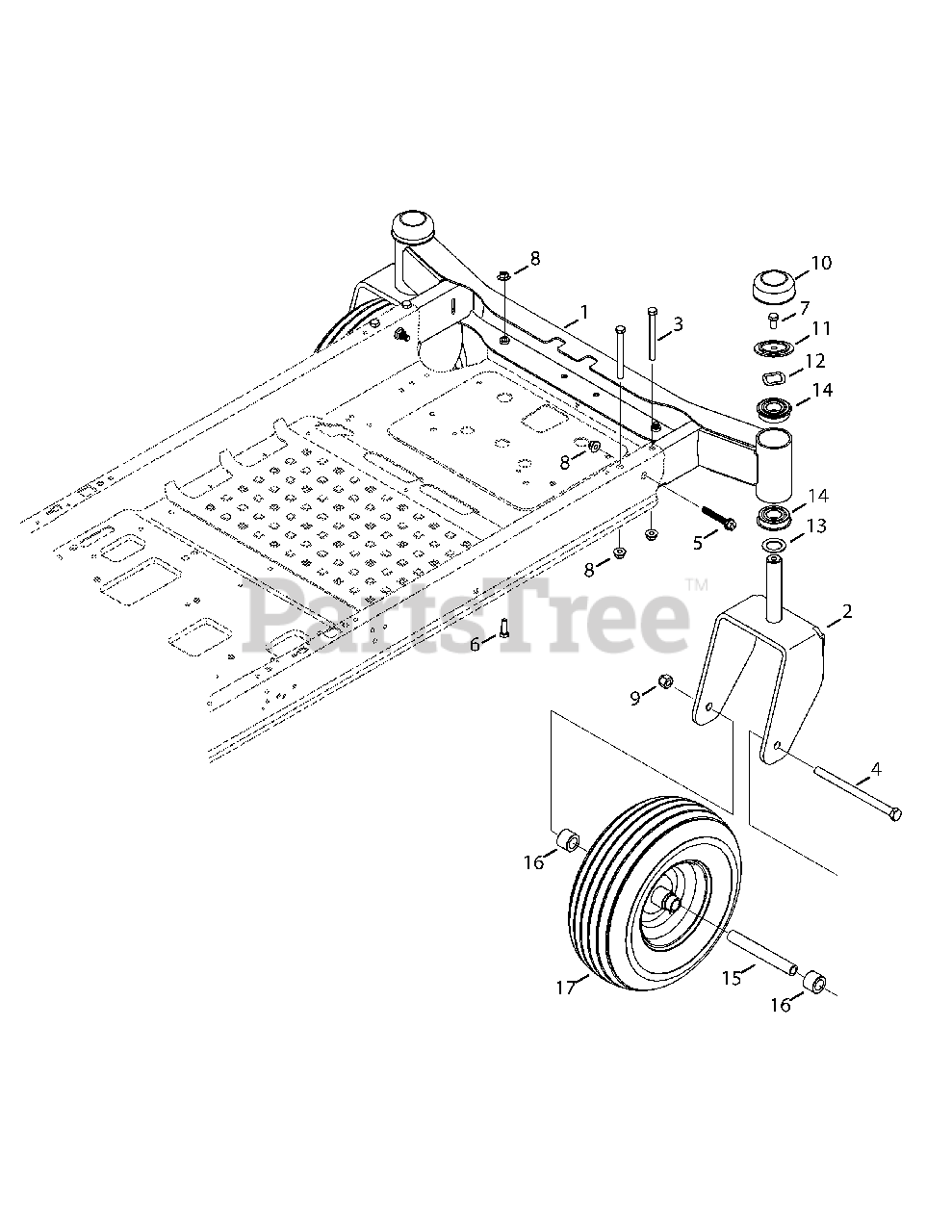

Front Axle Parts Diagram

  • Title

1

MTD 603-05135-0637

Front Axle

$445.99

$

Usually ships in 3-6 days

0

2

MTD 603-05058B-0637

Caster Wheel Bracket
(Superseded to 603-05058C-0637)

$118.99

$

Usually ships in 3-6 days

0

3

MTD 710-04576

Hex Cap Screw, 3/8-16 x 3.75

$4.99

$

Usually ships in 3-6 days

0

4

MTD 710-04652

Hex Cap Screw, 1/2-20 x 7.25
(Superseded to 710-11661)

$6.49

$

In Stock, only 2 left!

0

5

MTD 710-06093

Hex Flange Screw, 3/8-16 x 2.00

$4.99

$

Usually ships in 3-6 days

0

6

MTD 710-0514

Hex Cap Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-3119

Hex Cap Screw, 3/8-16 x .750

$6.99

$

In Stock, only 1 left!

0

8

MTD 712-04217

Flange Lock Nut, 3/8-16

$4.49

$

In Stock, Qty 16

0

9

MTD 912-3058

Hex Lock Nut, 1/2-20

$5.99

$

In Stock, Qty 16

0

10

MTD 731-09347

Cap

$5.99

$

In Stock, only 3 left!

0

11

MTD 738-05091

Shoulder Spacer, 2.50 x .200

$8.49

$

In Stock, only 1 left!

0

12

MTD 736-05033A

Wave Washer, 1.25 x 1.00 x .300

$4.99

$

In Stock, Qty 17

0

13

MTD 736-0745

Flat Washer, 1.010 x 1.56 x .060

$12.99

$

Usually ships in 3-6 days

0

14

MTD 941-05022A

Ball Bearing

$20.99

$

In Stock, only 1 left!

0

15

MTD 750-04775A

Spacer, .51 x .75 x 5.825

$28.99

$

In Stock, Qty 20+

0

16

MTD 750-04792

Hub, .76 x 1.23 x .92

$7.99

$

In Stock, Qty 20+

0

17

MTD 634-04711-0931

WHEEL ASSEMBLY (13 x 5-6) (BEIGE-CARLISLE)
(Superseded to 634-04711A-0936)

$174.99

$

Usually ships in 3-6 days

0
