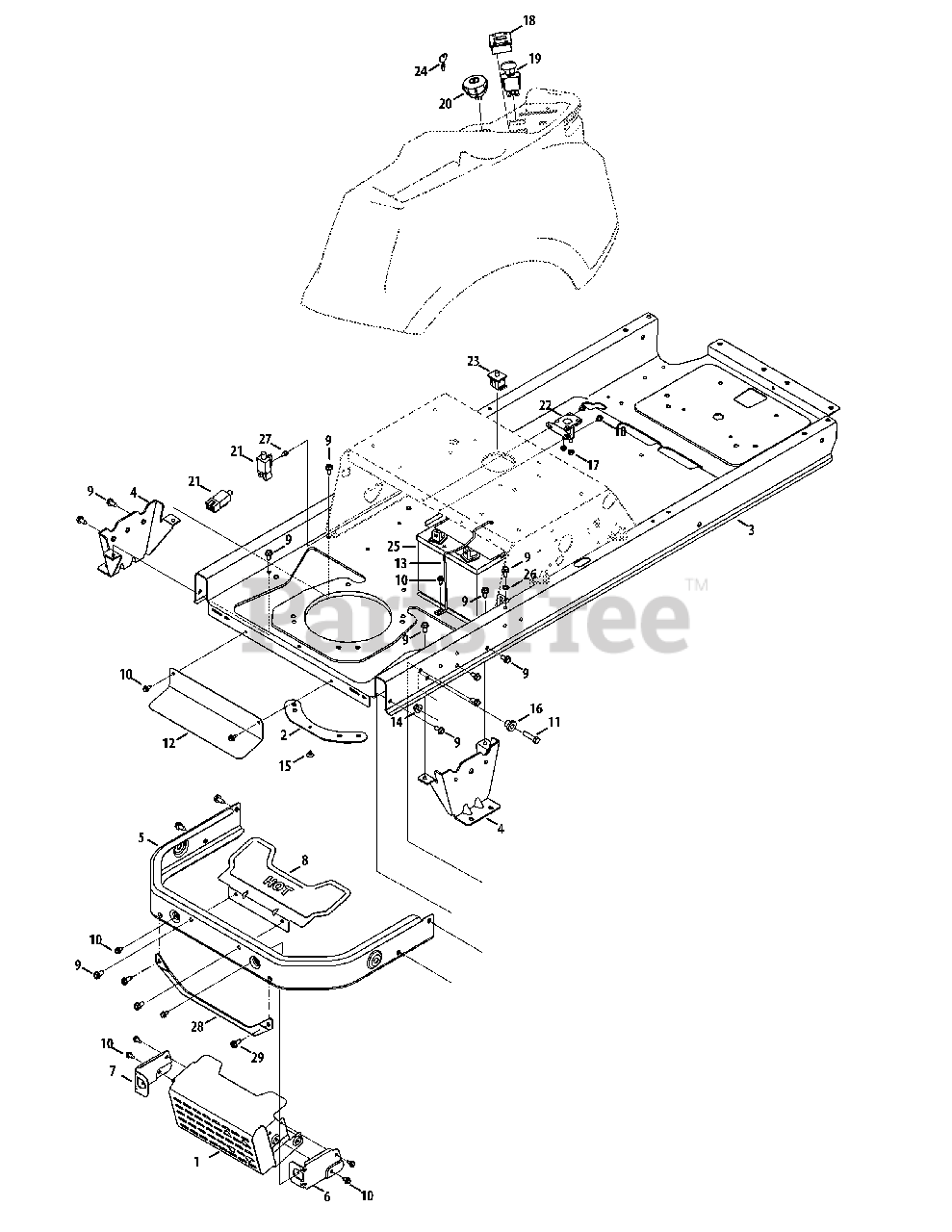

ZT-L42 (17AFCACS897) - Columbia 42" Zero-Turn Tractor (2014) Frame & Electrical Parts Diagram

42" Zero-Turn Tractor

Frame & Electrical Parts Diagram

  • Title

1

MTD 603-05156A-0637

Muffler Shield Assembly

$94.99

$

Usually ships in 3-6 days

0

2

MTD 703-05383B-0637

Retainer Plate

$18.99

$

Usually ships in 3-6 days

0

3

MTD 703-08884B-0606

Frame Assembly

$558.99

$

Usually ships in 3-6 days

0

4

MTD 703-08555-0637

Transmission Mounting Bracket

$31.99

$

Usually ships in 3-6 days

0

5

MTD 703-08558B-0606

Rear Bumper

$51.99

$

Usually ships in 3-6 days

0

6

MTD 703-08671A-0637

Muffler Mounting Shield Bracket, RH
(Superseded to 703-08671B-0637)

$8.49

$

Usually ships in 3-6 days

0

7

MTD 703-08695-0637

Muffler Mounting Shield Bracket, LH
(Superseded to 703-08695A-0637)

$8.49

$

Usually ships in 3-6 days

0

8

MTD 703-09083-0637

Muffler Shield

$31.99

$

In Stock, only 1 left!

0

9

MTD 710-04484

Hex Washer Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-1652

Hex Washer Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3005

Hex Screw 3/8-16 x 1.25

$3.99

$

In Stock, Qty 10

0

12

MTD 703-09195

Lower Heat Shield

$18.99

$

Usually ships in 3-6 days

0

13

MTD 747-05685-0637

Battery Rod

$18.99

$

In Stock, only 1 left!

0

14

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

MTD 726-04072A

Clip .250 Dia. x .500 LG

$3.99

$

In Stock, Qty 13

0

16

MTD 738-04058

Shoulder Spacer .38 x 1.0 x .70

$4.49

$

Usually ships in 3-6 days

0

17

MTD 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

18

MTD 925-06154

Hour Meter/Service Minder
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

19

MTD 925-3233

Electric PTO Switch
(Superseded to 925-3233A)

$51.99

$

In Stock, Qty 12

0

20

MTD 925-04228

Key Switch

$39.99

$

In Stock, Qty 20+

0

21

MTD 725-04363

Interlock Switch

$15.99

$

In Stock, Qty 20+

0

22

MTD 725-06153

Solenoid
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 9

0

23

MTD 925-05013

Seat Switch

$31.99

$

In Stock, only 2 left!

0

24

MTD 925-2054A

Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

25

MTD 925-1707D

Battery

$

$

Not available

26

MTD 736-0607

Lock Washer 5/16

$3.99

$

In Stock, Qty 20+

0

27

MTD 738-04237A

Shoulder Screw #10-32 x .500

$6.49

$

In Stock, Qty 7

0

28

MTD 703-09884-0606

Muffler Shield Bracket

$21.99

$

Usually ships in 3-6 days

0

29

MTD 710-06096

TT Screw 5/16-18 x .75

$6.99

$

Usually ships in 3-6 days

0

MTD 925-06000A

Harness Assembly
(Superseded to 925-06000B)

Note: (not shown)

$203.99

$

In Stock, only 1 left!

0
