ZT Elite - Bad Boy Zero-Turn Mower (2025) TRANSAXLE Parts Diagram

Zero-Turn Mower

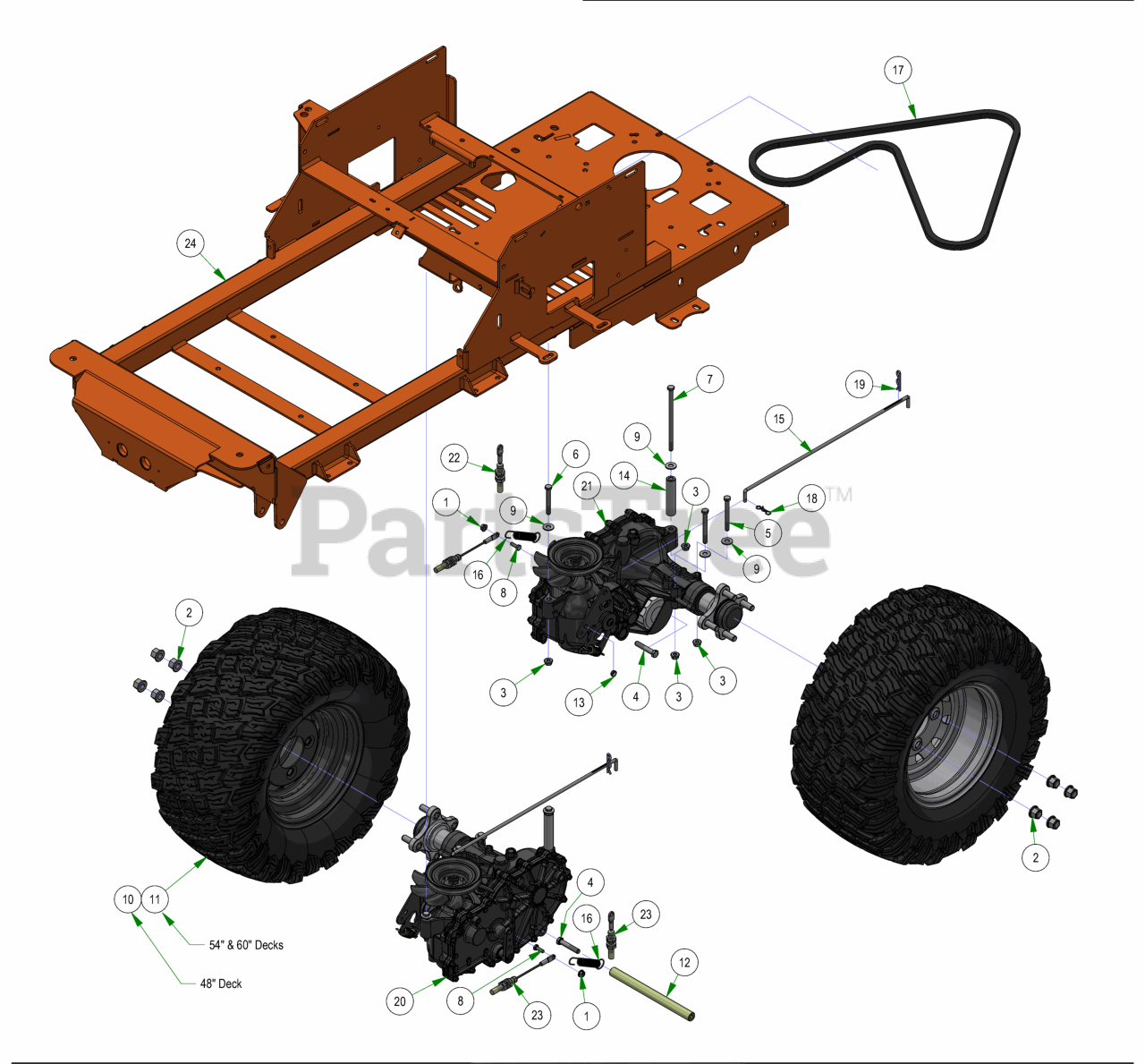

TRANSAXLE Parts Diagram

  • Title

1

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

2

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

3

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

4

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 8

0

5

Bad Boy 018-4701-00

5/16-18 X 3 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

7

Bad Boy 018-5355-00

5/16-18 X 6 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, only 3 left!

0

8

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

9

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

10

Bad Boy 022-2028-00

22-10x10 Reaper Wheel/Tire Assembly

$227.99

$

Usually ships in 4-7 days

0

11

Bad Boy 022-2215-00

22x11-10 Reaper Rear Black Assembly

$227.99

$

Usually ships in 4-7 days

0

12

Bad Boy 025-0017-00

2017 Transaxle Spacer-ZT

$14.99

$

In Stock, Qty 6

0

13

Bad Boy 025-0036-00

Drive Arm Transaxle Spacer

$5.99

$

Usually ships in 4-7 days

0

14

Bad Boy 025-0070-00

2017 Transaxle Spacer

$6.99

$

In Stock, only 2 left!

0

15

Bad Boy 028-0070-00

Neutral Rod

$13.99

$

Usually ships in 4-7 days

0

16

Bad Boy 034-1026-00

Brake Return Spring

$15.99

$

In Stock, only 3 left!

0

17

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

18

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

19

Bad Boy 044-2008-00

Neutral Rod Clip

$1.49

$

In Stock, only 2 left!

0

20

Bad Boy 050-2095-03

2025 RH 3100 Transaxle

$832.99

$

Usually ships in 0 days

0

21

Bad Boy 050-2096-03

2025 LH 3100 Transaxle

$832.99

$

Usually ships in 0 days

0

22

Bad Boy 064-3050-21

2021 Load Balanced Brake Cable 1

$60.99

$

In Stock, only 4 left!

0

23

Bad Boy 064-3051-21

2021 Load Balanced Brake Cable 2

$60.99

$

Usually ships in 4-7 days

0

24

Bad Boy 070-2502-00

2025 ZT Elite Frame

$

$

Currently unavailable
