ZT Elite - Bad Boy Zero-Turn Mower (2025) DRIVE ARM SUB ASSEMBLIES Parts Diagram

Zero-Turn Mower

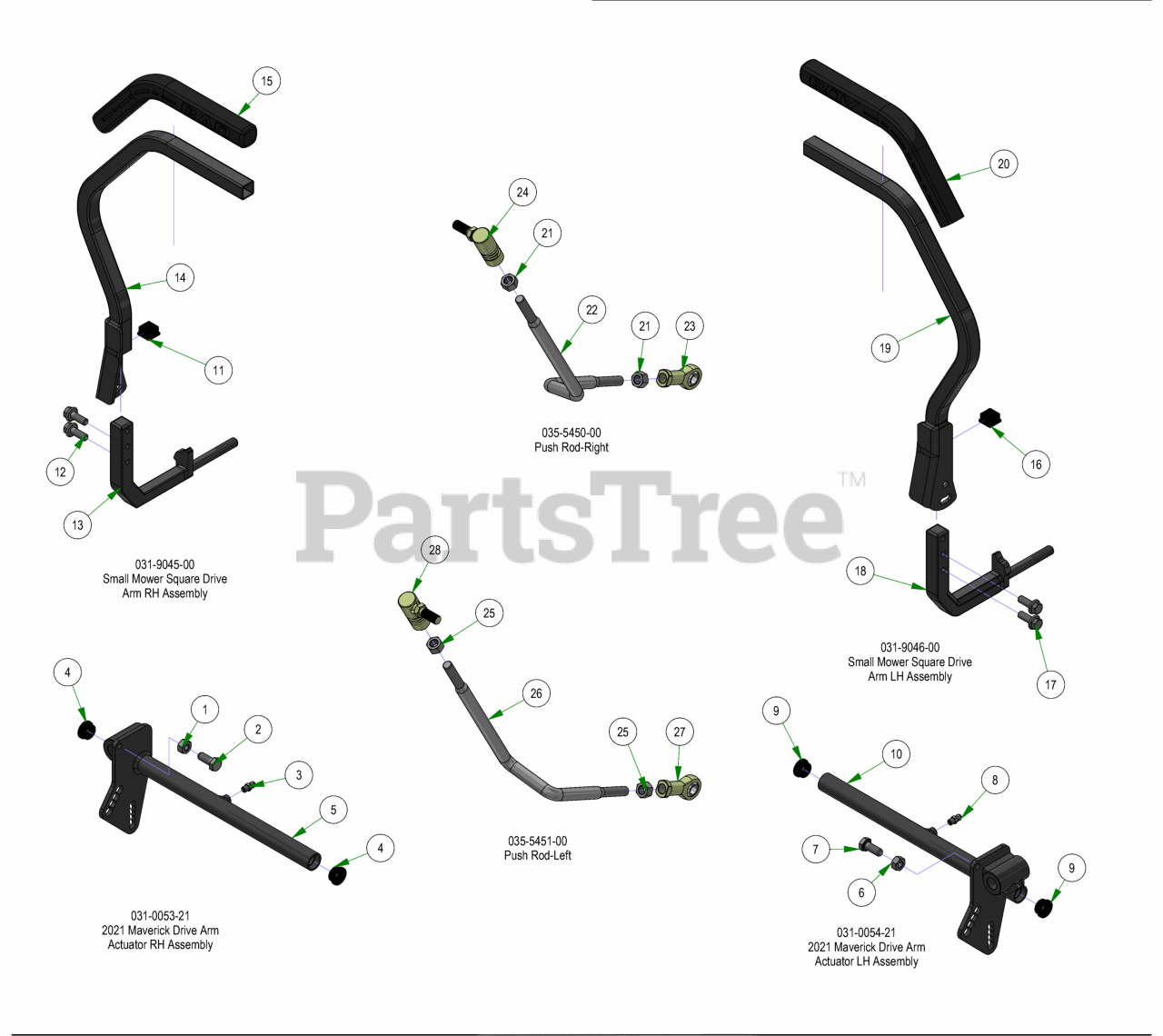

DRIVE ARM SUB ASSEMBLIES Parts Diagram

1

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

2

Bad Boy 018-8063-00

5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

3

Bad Boy 024-6034-00

1/4 DRIVE-TYPE STRAIGHT GREASE FITTING ZINC YELLOW)

$0.99

$

In Stock, only 2 left!

0

4

Bad Boy 031-0032-00

2019 Drive Arm Bushing

$7.99

$

Usually ships in 4-7 days

0

5

Bad Boy 031-0053-00

2021 Drive Actuator RH Weldment

$

$

Not available

6

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

7

Bad Boy 018-8063-00

5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

8

Bad Boy 024-6034-00

1/4 DRIVE-TYPE STRAIGHT GREASE FITTING ZINC YELLOW)

$0.99

$

In Stock, only 2 left!

0

9

Bad Boy 031-0032-00

2019 Drive Arm Bushing

$7.99

$

Usually ships in 4-7 days

0

10

Bad Boy 031-0054-00

2021 Drive Actuator LH Weldment

$

$

Not available

11

Bad Boy 014-9006-00

9565K16_Polyethylene Square Plug

$

$

Currently unavailable

12

Bad Boy 018-0089-00

92323A554_Grade 5 Steel Serrated-Flange Hex Head Screw

$

$

Currently unavailable

13

Bad Boy 031-0077-00

Small Mower Square Drive Arm Lower RH Weldment

$

$

Currently unavailable

14

Bad Boy 031-9033-00

Small Mower Square Drive Arm RH Weldment

$

$

Currently unavailable

15

Bad Boy 031-9044-00

Grip for 031-9045-00 / 031-9046-00

$

$

Currently unavailable

16

Bad Boy 014-9006-00

9565K16_Polyethylene Square Plug

$

$

Currently unavailable

17

Bad Boy 018-0089-00

92323A554_Grade 5 Steel Serrated-Flange Hex Head Screw

$

$

Currently unavailable

18

Bad Boy 031-0076-00

Small Mower Square Drive Arm Lower LH Weldment

$

$

Currently unavailable

19

Bad Boy 031-9032-00

Small Mower Square Drive Arm LH Weldment

$

$

Currently unavailable

20

Bad Boy 031-9044-00

Grip for 031-9045-00 / 031-9046-00

$

$

Currently unavailable

21

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

22

Bad Boy 035-5450-01

Push Rod - Right (Rod Only)

$

$

Currently unavailable

23

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

24

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

0

25

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

26

Bad Boy 035-5451-01

Push Rod LH (Rod Only)

$

$

Currently unavailable

27

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

28

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

0
