ZT Elite - Bad Boy Zero-Turn Mower (2024) FUEL TANK & REAR COVER Parts Diagram

Zero-Turn Mower

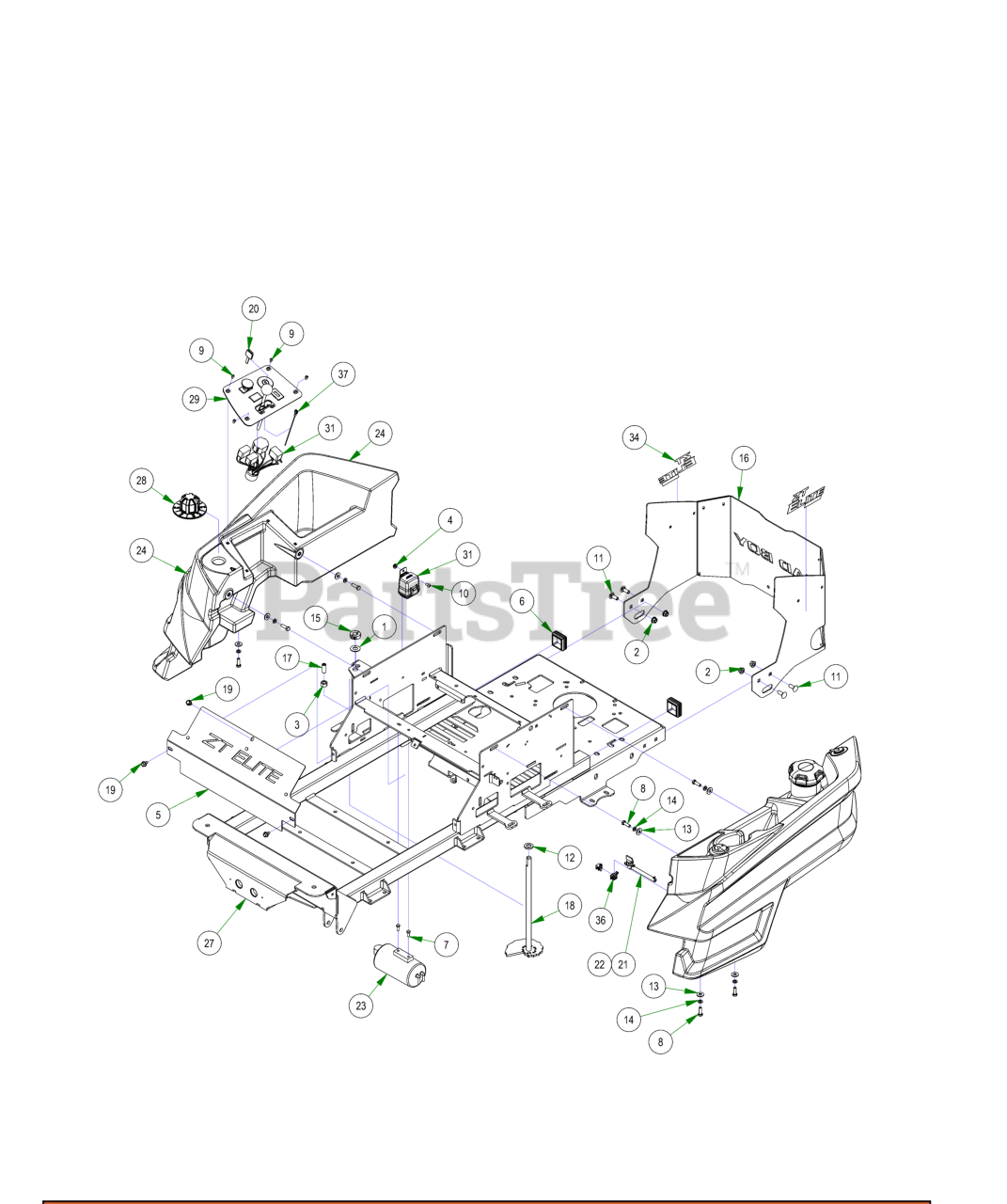

FUEL TANK & REAR COVER Parts Diagram

  • Title

1

Bad Boy 013-0080-00

.625 ID x 1.250 OD x .062 THK F/W Nylon

$1.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

4

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

5

Bad Boy 014-3320-23

2023 ZT Elite Cooler Cover Assembly

$79.99

$

Usually ships in 4-7 days

0

6

Bad Boy 014-9000-00

2X2 Frame Plug

$2.99

$

Usually ships in 4-7 days

0

7

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

8

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-2010-00

10-32 X 3/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

In Stock, Qty 9

0

10

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

In Stock, only 4 left!

0

11

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

12

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

13

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

14

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

15

Bad Boy 025-0002-00

5/8" Split Collar

$11.99

$

Usually ships in 4-7 days

0

16

Bad Boy 026-0225-00

2022 ZT Elite Rear Cover Assembly

$163.99

$

Usually ships in 4-7 days

0

17

Bad Boy 028-0008-00

Dial Rod Plunger

$33.99

$

Usually ships in 4-7 days

0

18

Bad Boy 028-0070-17

ZT Deck Height Bar Assembly

$31.99

$

Usually ships in 4-7 days

0

19

Bad Boy 030-7044-00

5/16-18 X 1/2 HWH unslot (F) tcs zinc

$1.49

$

Usually ships in 4-7 days

0

20

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

21

Bad Boy 051-0001-23

15" Fuel Line Assembly

$

$

Currently unavailable

22

Bad Boy 051-2014-23

37" Fuel Line Assembly

$

$

Currently unavailable

23

Bad Boy 067-0020-01

ZT/Mav EPA Cannister Assy

$91.99

$

Usually ships in 4-7 days

0

24

Bad Boy 067-2020-00

2021 Maverick Right Side Tank

$272.99

$

Usually ships in 4-7 days

0

25

Bad Boy 067-2021-00

2021 Maverick Left Side Tank

$387.99

$

Usually ships in 4-7 days

0

26

Bad Boy 067-9903-00

Fuel Pick-up for 067-2021-00

$

$

Currently unavailable

27

Bad Boy 070-2402-00

2024 ZT Elite Frame

$911.99

$

Usually ships in 0 days

0

28

Bad Boy 077-9000-00

MZ/ZT Deck Height Dial

$22.99

$

In Stock, only 2 left!

0

29

Bad Boy 079-3560-23

2023 Control Panel Assembly

$

$

Currently unavailable

30

Bad Boy 055-8020-00

Throttle Lever Assembly

$41.99

$

In Stock, Qty 20+

0

31

Bad Boy 086-3600-00

2024 Wiring Harness with Clips

$341.99

$

Usually ships in 4-7 days

0

32

Bad Boy 086-1202-01

Relay Block Cover Replacement Kit

$19.99

$

Usually ships in 4-7 days

0

33

Bad Boy 086-1202-19

Relay

$26.99

$

In Stock, Qty 9

0

34

Bad Boy 091-0511-00

ZT Elite Back Plate Decal

$1.49

$

Usually ships in 4-7 days

0

35

Bad Boy 214-1007-00

Edge Clip With Ziptie

$

$

Currently unavailable

36

Bad Boy 214-1008-00

Edge Clip With Ziptie

$

$

Currently unavailable

37

Bad Boy 216-1000-17

2017 MZ/ZT/MAV Tach Wire Assy

$7.99

$

Usually ships in 4-7 days

0
