ZT Elite - Bad Boy Zero-Turn Mower (2023) FRAME SUB ASSEMBLIES Parts Diagram

Zero-Turn Mower

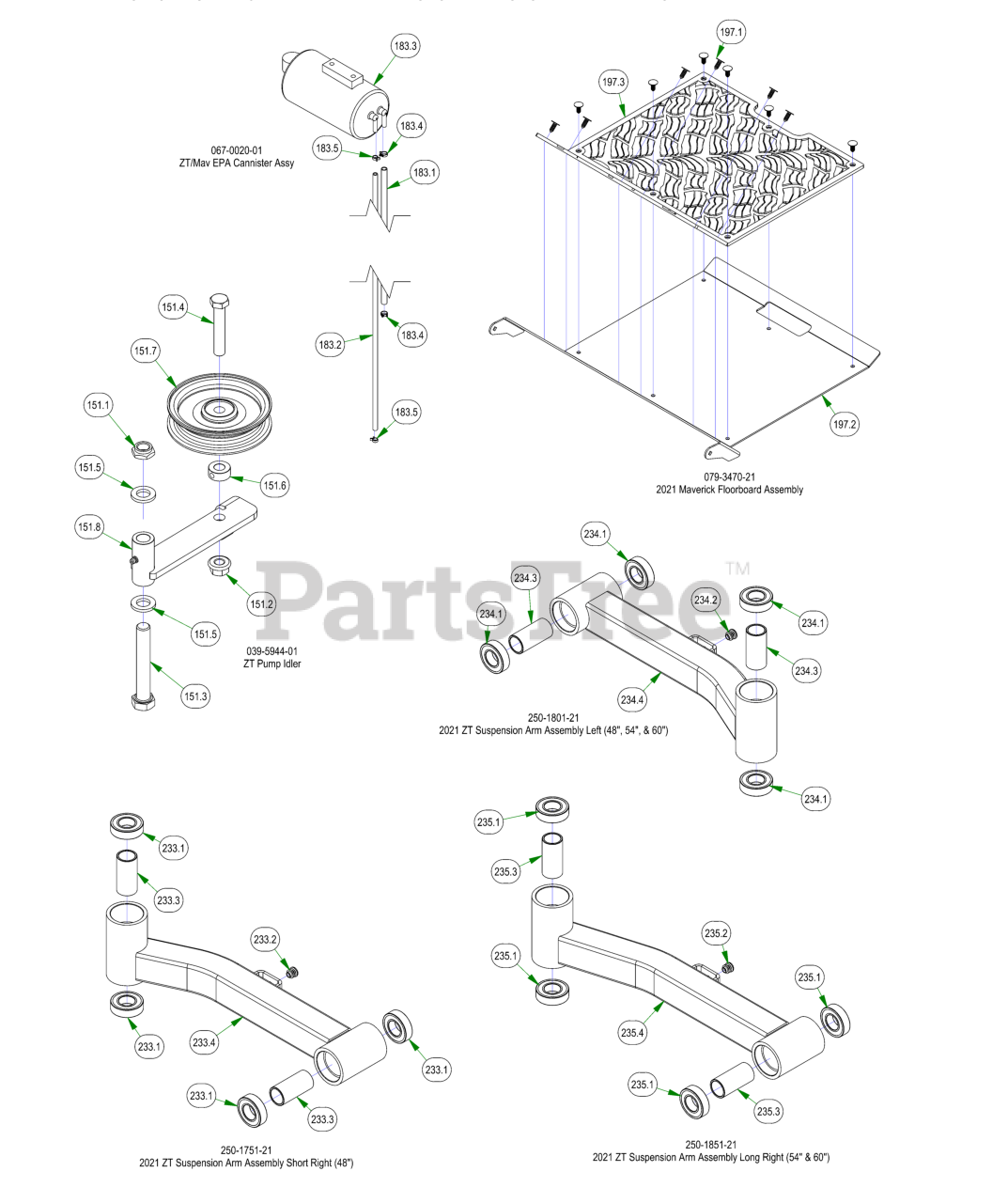

FRAME SUB ASSEMBLIES Parts Diagram

  • Title

151

Bad Boy 039-5944-01

ZT Pump Idler

$66.99

$

In Stock, only 2 left!

0

183

Bad Boy 067-0020-01

ZT/Mav EPA Cannister Assy

$91.99

$

Usually ships in 4-7 days

0

197

Bad Boy 079-3470-21

2021 Maverick Floorboard Assembly

$148.99

$

Usually ships in 4-7 days

0

233

Bad Boy 250-1751-21

2021 ZT Suspension Arm Assembly Short Right (48")

$113.99

$

Usually ships in 4-7 days

0

234

Bad Boy 250-1801-21

2021 ZT Suspension Arm Assembly Left (48", 54", & 60")

$113.99

$

Usually ships in 4-7 days

0

235

Bad Boy 250-1851-21

2021 ZT Suspension Arm Assembly Long Right (54" & 60")

$113.99

$

Usually ships in 4-7 days

0

151.1

Bad Boy 013-5301-00

5/8-11 NYLON INSERT JAM LOCKNUT ZINC

$0.99

$

In Stock, Qty 6

0

151.2

Bad Boy 013-8050-00

1/2-13 NYLON INSERT FLANGE LOCKNUT ZINC

$1.99

$

In Stock, Qty 20+

0

151.3

Bad Boy 018-5311-00

5/8-11 X 4 HEX CAP SCREW (GR.8) ZINC YELLOW

$4.49

$

In Stock, Qty 8

0

151.4

Bad Boy 018-6036-00

1/2-13 X 2-3/4 HEX CAP SCREW (GR.5) ZINC

$1.99

$

In Stock, only 4 left!

0

151.5

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

151.6

Bad Boy 025-7036-00

1/2 SOLID SHAFT COLLAR (W/1 SET SCREW) ZINC

$4.99

$

In Stock, only 2 left!

0

151.7

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

151.8

Bad Boy 039-5944-00

Pump Idler Bracket

$45.99

$

In Stock, only 2 left!

0

165.3

Bad Boy 051-2014-04

Fuel Line 4" Section with Clamps

$

$

Currently unavailable

166.3

Bad Boy 051-2014-04

Fuel Line 4" Section with Clamps

$

$

Currently unavailable

183.1

Bad Boy 051-2020-01

1/4" Vinyl Tubing, 46" Long

$13.99

$

Usually ships in 4-7 days

0

183.2

Bad Boy 051-2025-02

3/16" Vinyl Tubing, 55" Long

$13.99

$

Usually ships in 4-7 days

0

183.3

Bad Boy 067-0020-00

Carbon Canister

$66.99

$

In Stock, only 3 left!

0

183.4

Bad Boy 072-8070-00

3/16 Vinyl Clamp

$1.99

$

Usually ships in 4-7 days

0

183.5

Bad Boy 072-8073-00

3/16" Vinyl Hose Clamp

$3.49

$

Usually ships in 4-7 days

0

197.1

Bad Boy 040-6080-00

Ratchet Fastener

$3.49

$

In Stock, only 3 left!

0

197.2

Bad Boy 079-3470-18

2018 Maverick Floorboard

$113.99

$

Usually ships in 4-7 days

0

197.3

Bad Boy 081-4001-00

2021 Maverick Floor Mat W/ Reaper Tread

$56.99

$

Usually ships in 4-7 days

0

233.1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

233.2

Bad Boy 014-3010-00

5/8 Round Insert

$1.99

$

Usually ships in 4-7 days

0

233.3

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, only 4 left!

0

233.4

Bad Boy 250-1751-00

2021 ZT RH Front Arm - Short

$

$

Currently unavailable

234.1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

234.2

Bad Boy 014-3010-00

5/8 Round Insert

$1.99

$

Usually ships in 4-7 days

0

234.3

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, only 4 left!

0

234.4

Bad Boy 250-1801-00

2021 ZT LH Front Arm

$

$

Not available

235.1

Bad Boy 010-1050-00

1641 BEARING W/2 CONTACT RUBBER SEALS

$19.99

$

In Stock, Qty 20+

0

235.2

Bad Boy 014-3010-00

5/8 Round Insert

$1.99

$

Usually ships in 4-7 days

0

235.3

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, only 4 left!

0

235.4

Bad Boy 250-1851-00

2021 ZT RH Front Arm - Long

$

$

Currently unavailable

165.3.1

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

165.3.2

Bad Boy 051-8067-00

4" 1/4 Fuel Line

$6.99

$

In Stock, only 3 left!

0

166.3.1

Bad Boy 072-8069-00

1/4 Fuel Hose Clamp

$1.49

$

In Stock, only 2 left!

0

166.3.2

Bad Boy 051-8067-00

4" 1/4 Fuel Line

$6.99

$

In Stock, only 3 left!

0
