ZT Elite - Bad Boy Zero-Turn Mower (2023) DRIVE ARMS Parts Diagram

Zero-Turn Mower

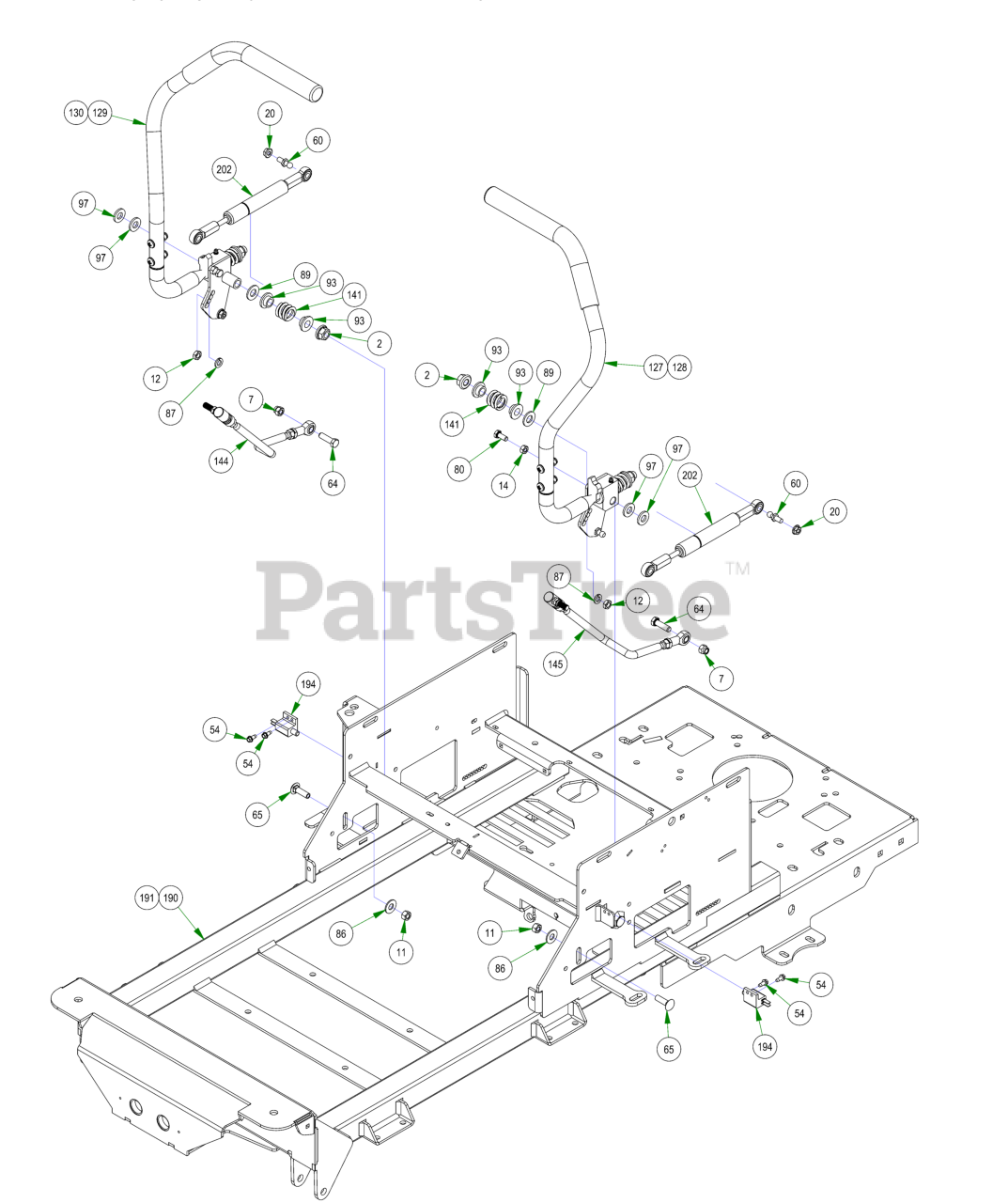

DRIVE ARMS Parts Diagram

  • Title

2

Bad Boy 013-0010-00

1/2-13 HEX FLANGE AUTO OVAL LOCKNUT (GR.F) ZINC/WAX

$1.49

$

In Stock, only 3 left!

0

7

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 013-6014-00

3/8-16 HEX NUT ZINC

$0.99

$

In Stock, only 4 left!

0

12

Bad Boy 013-6051-00

3/8-24 HEX NUT ZINC YELLOW

$0.99

$

In Stock, Qty 20+

0

14

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

20

Bad Boy 013-9002-00

5/16-18 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, Qty 10

0

54

Bad Boy 018-1080-00

12-24 X 1/2 HEX WASHER UNLSOT F TCS ZINC

$2.49

$

Usually ships in 4-7 days

0

60

Bad Boy 018-2055-00

10mm Damper Ball Stud-XP Linkage

$2.49

$

In Stock, only 4 left!

0

64

Bad Boy 018-5040-00

3/8-16 X 1-1/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, Qty 17

0

65

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

80

Bad Boy 018-8063-00

5/16-18 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

86

Bad Boy 019-5029-00

3/8 FLAT WASHER USS (1" OD) ZINC

$0.99

$

In Stock, Qty 5

0

87

Bad Boy 019-5037-00

3/8 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, Qty 11

0

89

Bad Boy 019-5702-00

1/2 SAE FLAT WASHER (1-1/16" OD) GR.8 ZINC YELLOW

$0.99

$

In Stock, only 1 left!

0

93

Bad Boy 019-8027-00

.525 ID SHOULDER WASHER NYLON

$0.99

$

Usually ships in 4-7 days

0

97

Bad Boy 019-8054-00

.505 ID X 1.000 OD X .125 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 10

0

127

Bad Boy 031-0017-01

ZT Steering Arm Assembly, Left Hand

$166.99

$

Usually ships in 4-7 days

0

128

Bad Boy 031-0017-23

ZT Steering Arm Assembly, Left Hand

$

$

Not available

129

Bad Boy 031-0018-01

ZT Steering Arm Assembly-Right Hand

$166.99

$

Usually ships in 4-7 days

0

130

Bad Boy 031-0018-23

ZT Steering Arm Assembly-Right Hand

$

$

Not available

141

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

144

Bad Boy 035-5450-00

Push Rod-Right

$36.99

$

Usually ships in 4-7 days

0

145

Bad Boy 035-5451-00

Push Rod-Left

$45.99

$

Usually ships in 4-7 days

0

190

Bad Boy 070-2302-00

2023 ZT Elite Frame- Painted

$

$

Currently unavailable

191

Bad Boy 070-2302-23

2023 ZT Elite Frame- Painted

$

$

Currently unavailable

194

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 20+

0

202

Bad Boy 087-0001-00

Steering Damper

$66.99

$

In Stock, only 4 left!

0
