ZT Elite - Bad Boy Zero-Turn Mower (2022) TRANSAXLE Parts Diagram

Zero-Turn Mower

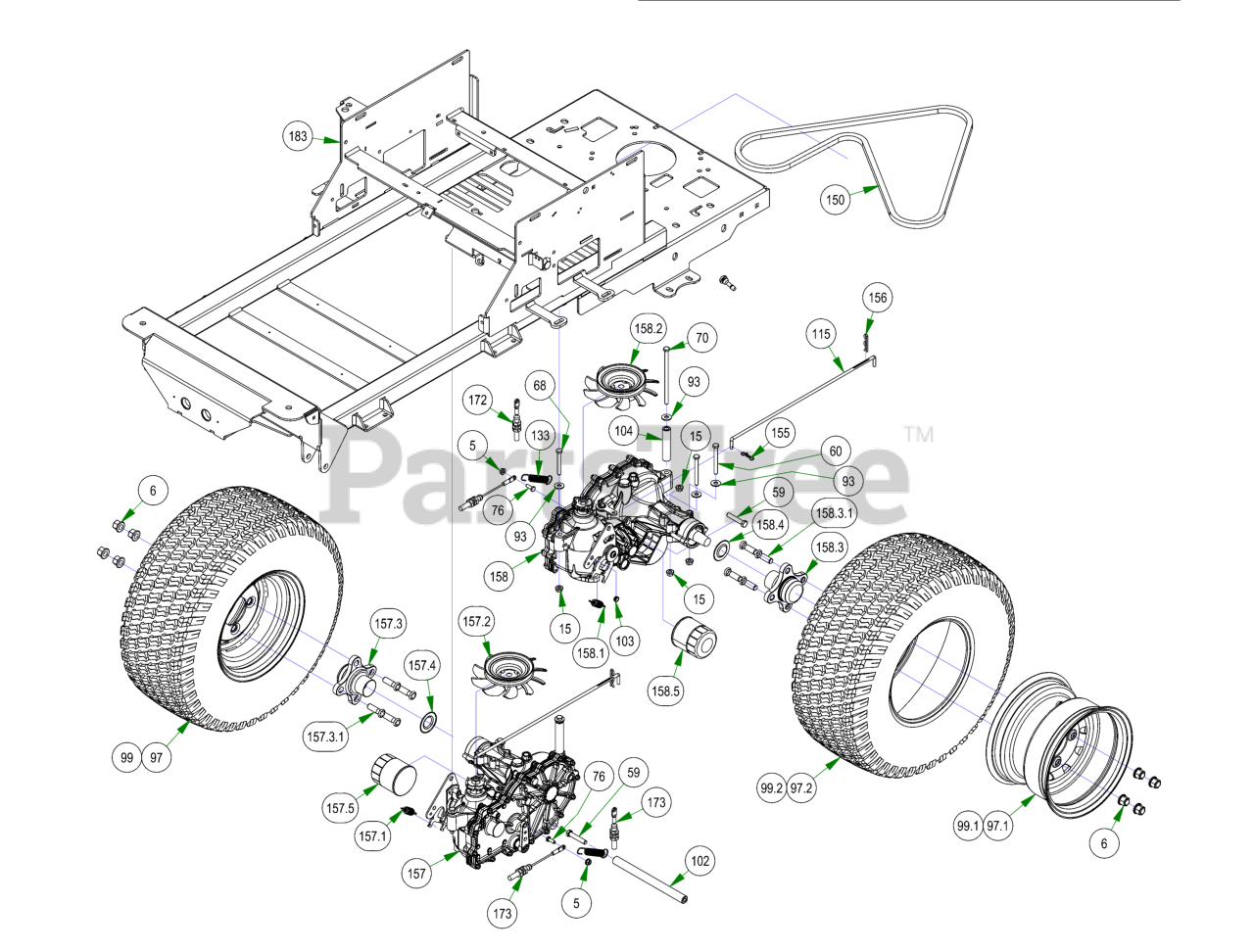

TRANSAXLE Parts Diagram

  • Title

5

Bad Boy 013-2050-00

1/4-20 NYL INSERT FLANGE LOCKNUT ZINC

$1.49

$

In Stock, only 2 left!

0

6

Bad Boy 013-3000-00

Acorn Lug Nut

$3.49

$

In Stock, Qty 20+

0

15

Bad Boy 013-8049-00

5/16-18 NYLON INSERT FLANGE LOCKNUT ZINC

$0.99

$

In Stock, Qty 17

0

59

Bad Boy 018-3000-00

3/8-16 X 2 HEX CAP SCREW (GR.5) ZINC

$1.49

$

In Stock, Qty 6

0

60

Bad Boy 018-4701-00

5/16-18 X 3 HEX CAP SCREW (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

68

Bad Boy 018-5344-00

5/16-18 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

70

Bad Boy 018-5355-00

5/16-18 X 6 HEX CAP SCREW (GR.5) ZINC

$2.99

$

In Stock, only 3 left!

0

76

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

93

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

97

Bad Boy 022-2015-00

ZT Tire and Rim Assembly 22 x 11 - 10

$331.99

$

Usually ships in 4-7 days

0

99

Bad Boy 022-2018-00

2017 ZT Black Assy 22x10-10 48" Deck

$331.99

$

Usually ships in 4-7 days

0

102

Bad Boy 025-0017-00

2017 Transaxle Spacer-ZT

$14.99

$

In Stock, Qty 5

0

103

Bad Boy 025-0036-00

Drive Arm Transaxle Spacer

$5.99

$

Usually ships in 4-7 days

0

104

Bad Boy 025-0070-00

2017 Transaxle Spacer

$6.99

$

In Stock, only 2 left!

0

115

Bad Boy 028-0070-00

Neutral Rod

$13.99

$

Usually ships in 4-7 days

0

133

Bad Boy 034-1026-00

Brake Return Spring

$15.99

$

In Stock, only 3 left!

0

150

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

155

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

156

Bad Boy 044-2008-00

Neutral Rod Clip

$1.49

$

In Stock, only 2 left!

0

157

Bad Boy 050-2095-02

2021 RH 3100 Transaxle

$832.99

$

Usually ships in 4-7 days

0

158

Bad Boy 050-2096-02

2021 LH 3100 Transaxle

$832.99

$

Usually ships in 4-7 days

0

172

Bad Boy 064-3050-21

2021 Load Balanced Brake Cable 1

$60.99

$

In Stock, only 4 left!

0

173

Bad Boy 064-3051-21

2021 Load Balanced Brake Cable 2

$60.99

$

In Stock, only 2 left!

0

183

Bad Boy 070-5423-00

2022 Suspension ZT Frame - Painted

$

$

Not available

97.1

Bad Boy 022-2015-50

ZT Wheel Only 22x11-10

$119.99

$

In Stock, only 2 left!

0

97.2

Bad Boy 022-2020-00

ZT Tire Only 22x11-10

$296.99

$

Usually ships in 4-7 days

0

99.1

Bad Boy 022-2019-17

WHEEL, 10", BLACK

$106.99

$

Usually ships in 4-7 days

0

99.2

Bad Boy 022-2024-17

TIRE, 22X10-10

$166.99

$

Usually ships in 4-7 days

0

157.1

Bad Boy 034-9080-00

Gold Transaxle Spring

$15.99

$

In Stock, Qty 7

0

157.2

Bad Boy 050-2070-00

2021 ZT/Maverick Transaxle Fan/Pulley Kit

$90.99

$

In Stock, only 4 left!

0

157.3

Bad Boy 050-2076-00

ZT Transaxle Wheel Hub

$96.99

$

Usually ships in 4-7 days

0

157.4

Bad Boy 050-8010-00

2021 ZT/Maverick Transaxle Seal Kit (ZT-2800)

$124.99

$

In Stock, only 2 left!

0

157.5

Bad Boy 063-1050-00

ZT Hydraulic Filter

$24.99

$

In Stock, Qty 20+

0

158.1

Bad Boy 034-9080-00

Gold Transaxle Spring

$15.99

$

In Stock, Qty 7

0

158.2

Bad Boy 050-2070-00

2021 ZT/Maverick Transaxle Fan/Pulley Kit

$90.99

$

In Stock, only 4 left!

0

158.3

Bad Boy 050-2076-00

ZT Transaxle Wheel Hub

$96.99

$

Usually ships in 4-7 days

0

158.4

Bad Boy 050-8010-00

2021 ZT/Maverick Transaxle Seal (ZT-2800)

$124.99

$

In Stock, only 2 left!

0

158.5

Bad Boy 063-1050-00

ZT Hydraulic Filter

$24.99

$

In Stock, Qty 20+

0

157.3.1

Bad Boy 050-2012-00

Transaxle Wheel Studs/ Drum Brake Studs

$5.99

$

In Stock, Qty 20+

0

158.3.1

Bad Boy 050-2012-00

Transaxle Wheel Studs/ Drum Brake Studs

$5.99

$

In Stock, Qty 20+

0
