ZT Elite - Bad Boy Zero-Turn Mower (2022) FUEL TANK & REAR COVER Parts Diagram

Zero-Turn Mower

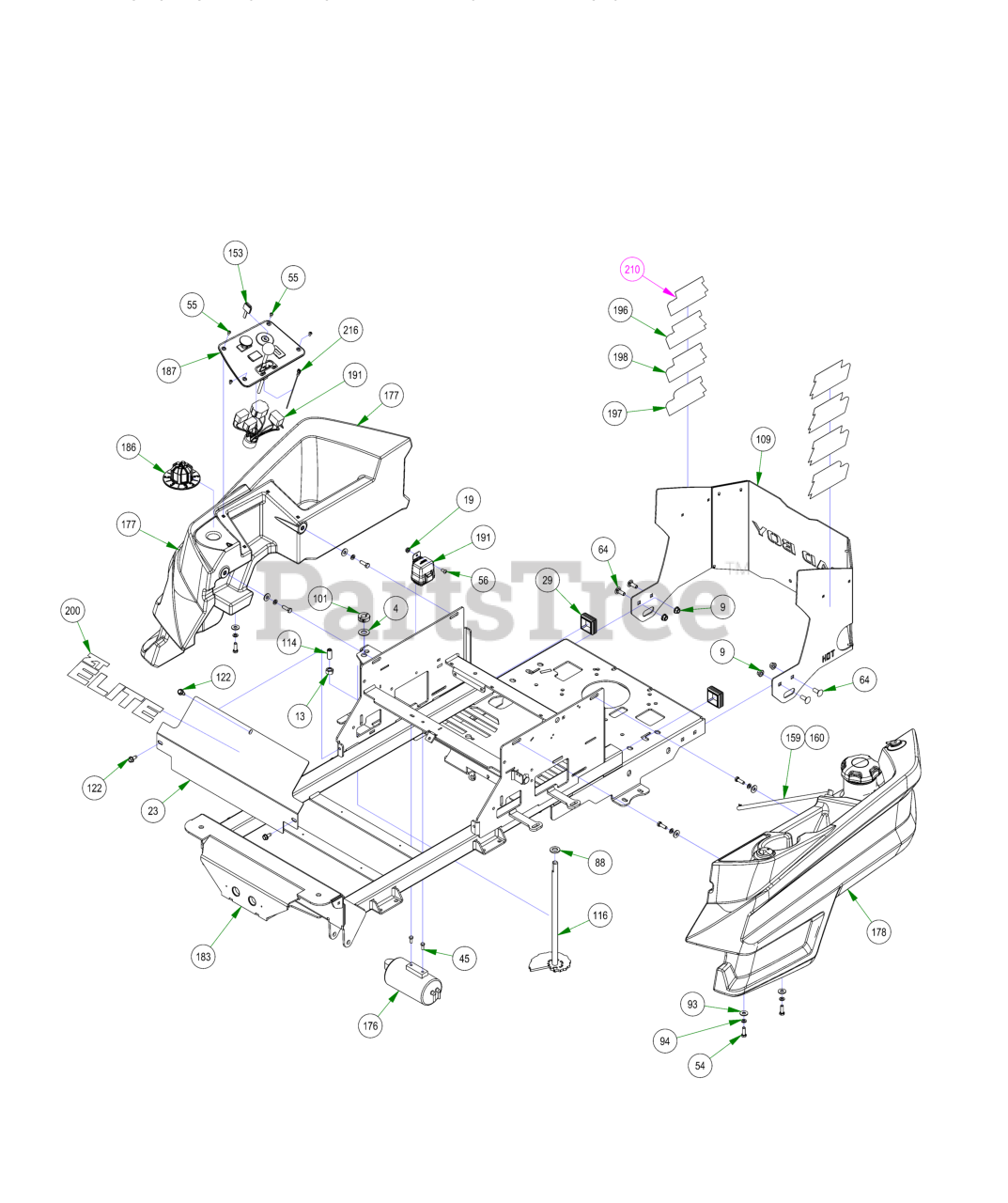

FUEL TANK & REAR COVER Parts Diagram

  • Title

4

Bad Boy 013-0080-00

.625 ID x 1.250 OD x .062 THK F/W Nylon

$1.99

$

Usually ships in 4-7 days

0

9

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

13

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

19

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

23

Bad Boy 014-3417-21

2021 ZT Cooler Cover Painted

$

$

Currently unavailable

29

Bad Boy 014-9000-00

2X2 Frame Plug

$2.99

$

Usually ships in 4-7 days

0

45

Bad Boy 018-0024-00

M6-1.0 X 16MM DIN 933 HEX TAP BOLT (CL 8.8) ZINC

$3.49

$

In Stock, Qty 8

0

54

Bad Boy 018-2007-00

5/16-18 X 1 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 2 left!

0

55

Bad Boy 018-2010-00

10-32 X 3/8 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

In Stock, Qty 9

0

56

Bad Boy 018-2012-00

1/4-20 X 1/2 BUTTON SOCKET CAP SCREW 18-8 STAINLESS

$0.99

$

In Stock, only 4 left!

0

64

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

88

Bad Boy 019-6017-00

.635 ID X 1.120 OD X .140 THICK FLAT WASHER NYLON

$0.99

$

In Stock, Qty 20+

0

93

Bad Boy 019-8044-00

5/16 USS FLAT WASHER (7/8 OD) ZINC

$0.99

$

In Stock, Qty 20+

0

94

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

101

Bad Boy 025-0002-00

5/8" Split Collar

$11.99

$

Usually ships in 4-7 days

0

109

Bad Boy 026-0225-00

2022 ZT Elite Rear Cover Assembly

$163.99

$

Usually ships in 4-7 days

0

114

Bad Boy 028-0008-00

Dial Rod Plunger

$33.99

$

Usually ships in 4-7 days

0

116

Bad Boy 028-0070-17

ZT Deck Height Bar Assembly

$31.99

$

Usually ships in 4-7 days

0

122

Bad Boy 030-7042-00

5/16-18 X 3/4HEX WASHER SLOT (F) TCS ZINC

$1.49

$

Usually ships in 4-7 days

0

153

Bad Boy 042-9000-00

Ignition Key

$4.49

$

In Stock, Qty 20+

0

159

Bad Boy 051-0001-00

15" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

160

Bad Boy 051-2014-00

37" Fuel Line Assembly

$43.99

$

Usually ships in 4-7 days

0

176

Bad Boy 067-0020-01

ZT/Mav EPA Cannister Assy

$91.99

$

Usually ships in 4-7 days

0

177

Bad Boy 067-2020-00

2021 Maverick Right Side Tank

$272.99

$

Usually ships in 4-7 days

0

178

Bad Boy 067-2021-00

2021 Maverick Left Side Tank

$387.99

$

Usually ships in 4-7 days

0

183

Bad Boy 070-5423-00

2022 Suspension ZT Frame - Painted

$

$

Not available

186

Bad Boy 077-9000-00

MZ/ZT Deck Height Dial

$22.99

$

In Stock, only 2 left!

0

187

Bad Boy 079-3460-19

2019 ZT/Maverick Control Panel Assembly

$164.99

$

Usually ships in 4-7 days

0

191

Bad Boy 086-3050-19

Wiring Harness

$341.99

$

Usually ships in 4-7 days

0

196

Bad Boy 091-0315-21

2021 ZT Elite 747cc Back Plate Cluster

$14.99

$

Usually ships in 4-7 days

0

197

Bad Boy 091-0316-21

2021 ZT Elite 726cc Back Plate Cluster

$15.99

$

Usually ships in 4-7 days

0

198

Bad Boy 091-0317-21

2021 ZT Elite 725cc Back Plate Cluster

$12.99

$

Usually ships in 4-7 days

0

200

Bad Boy 091-0389-00

2017 ZT Elite Cooler Cover Decal

$15.99

$

Usually ships in 4-7 days

0

216

Bad Boy 216-1000-17

2017 MZ/ZT/MAV Tach Wire Assy

$7.99

$

Usually ships in 4-7 days

0
