ZT Elite - Bad Boy Zero-Turn Mower (2022) ENGINE - KOHLER Parts Diagram

Zero-Turn Mower

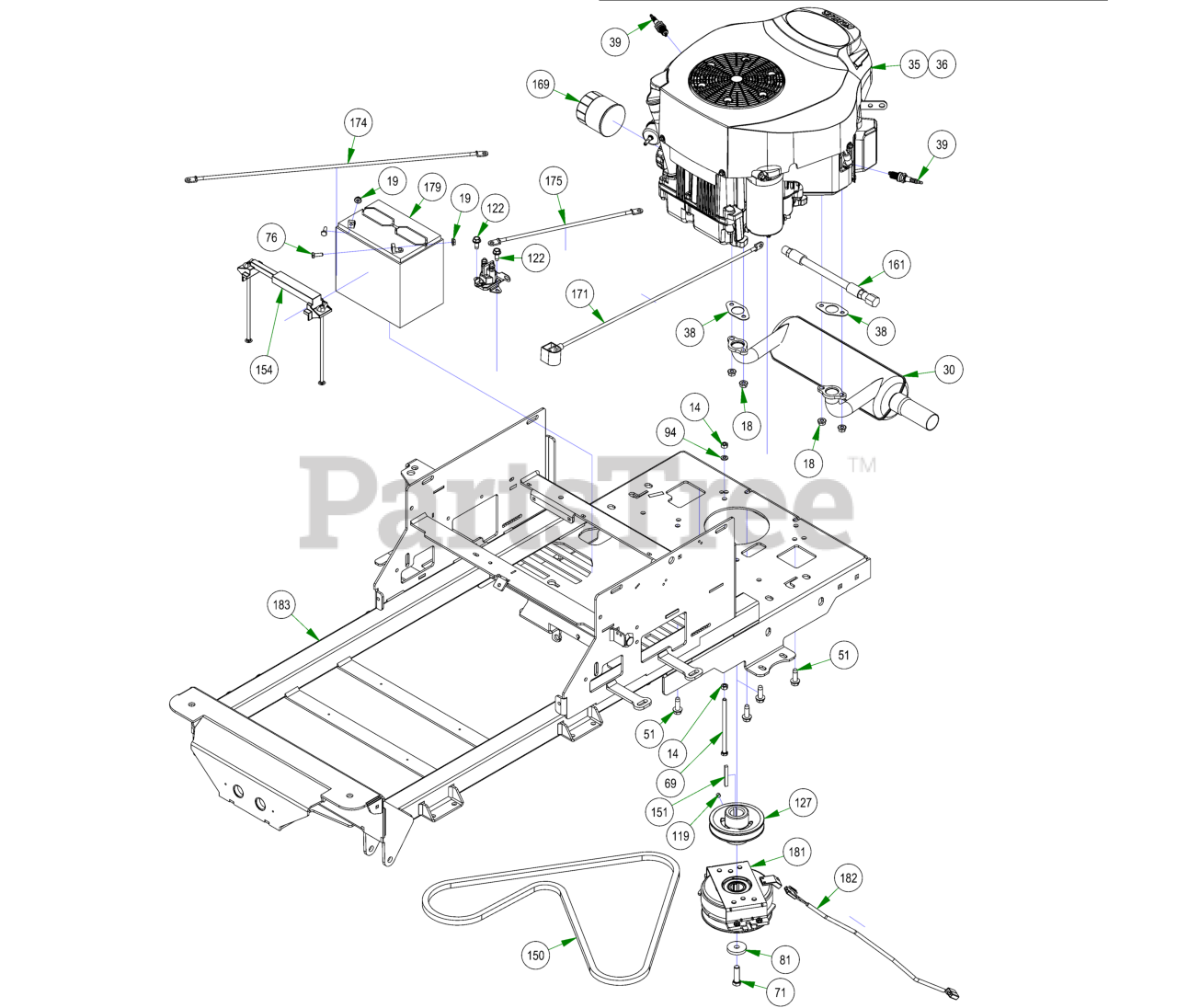

ENGINE - KOHLER Parts Diagram

  • Title

14

Bad Boy 013-8043-00

5/16-18 HEX NUT ZINC

$0.99

$

In Stock, Qty 5

0

18

Bad Boy 013-8240-00

M8 Nut Connects the 015-1012-00 and the 015-8240-00

$7.99

$

Usually ships in 4-7 days

0

19

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

30

Bad Boy 015-0051-00

Kohler Muffler

$247.99

$

In Stock, only 1 left!

0

35

Bad Boy 015-2020-00

Kohler-2014 ZT 725cc

$2278.99

$

Usually ships in 4-7 days

0

36

Bad Boy 015-2026-00

26hp Kohler-2018 ZT-KT745-3088

$2734.99

$

Usually ships in 4-7 days

0

38

Bad Boy 015-2751-00

Exhaust Gasket

$6.99

$

In Stock, Qty 5

0

39

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

51

Bad Boy 018-1075-00

3/8-16 X 1-1/8HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS

$1.99

$

In Stock, Qty 11

0

69

Bad Boy 018-5350-00

5/16-18 X 5-1/2 HEX CAP SCREW (GR.5) ZINC

$2.49

$

In Stock, only 2 left!

0

71

Bad Boy 018-5450-21

7/16-20 X 1-1/2 HEX CAP SCREW (GR.8) w/ Patch

$0.99

$

In Stock, only 2 left!

0

76

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

81

Bad Boy 019-0010-00

CLUTCH WASHER

$6.49

$

In Stock, only 4 left!

0

94

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

0

119

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

122

Bad Boy 030-7042-00

5/16-18 X 3/4HEX WASHER SLOT (F) TCS ZINC

$1.49

$

Usually ships in 4-7 days

0

127

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

150

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

151

Bad Boy 042-5020-00

1/4 X 2 SQ MACHINERY KEY 1018 STL PLAIN

$3.49

$

In Stock, only 2 left!

0

154

Bad Boy 043-8929-00

Hold Down Assembly

$18.99

$

In Stock, Qty 11

0

161

Bad Boy 051-5401-00

Oil drain Hose

$33.99

$

In Stock, Qty 5

0

169

Bad Boy 063-5004-00

25 HP Kohler Oil Filter ZT?MZ

$31.99

$

In Stock, Qty 20+

0

170

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 20+

0

171

Bad Boy 064-0030-00

24 inch Black Cable – MZ/ZT

$19.99

$

Usually ships in 4-7 days

0

174

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

175

Bad Boy 064-5301-00

12 in red battery cable

$18.99

$

In Stock, only 2 left!

0

179

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

181

Bad Boy 070-0056-00

Clutch

$415.99

$

Usually ships in 4-7 days

0

182

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

183

Bad Boy 070-5423-00

2022 Suspension ZT Frame - Painted

$

$

Not available

212

Bad Boy 108-0001-00

Solenoid

$31.99

$

In Stock, Qty 12

0
