ZT Elite - Bad Boy Zero-Turn Mower (2022) DRIVE ARM SUBASSEMBLIES Parts Diagram

Zero-Turn Mower

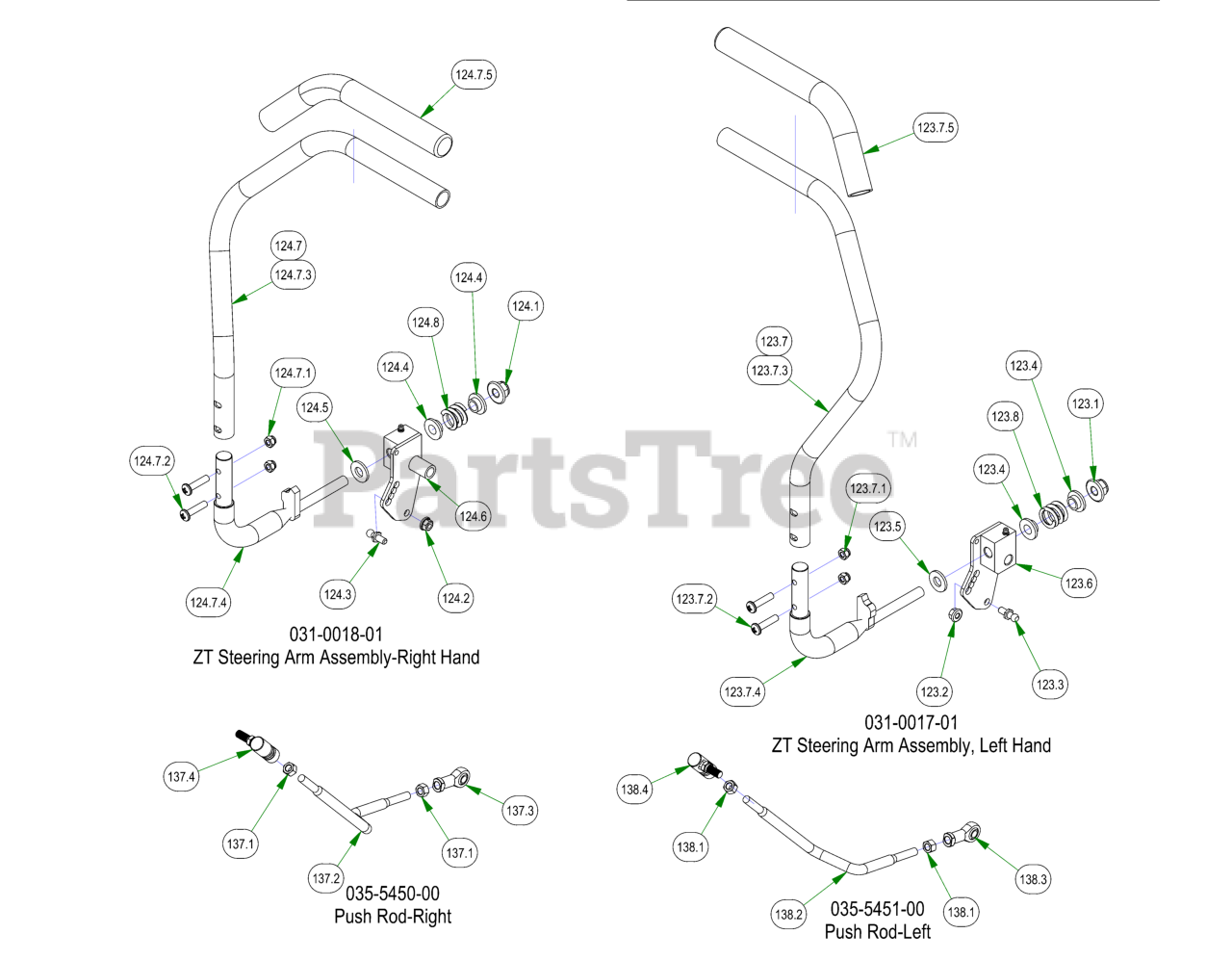

DRIVE ARM SUBASSEMBLIES Parts Diagram

  • Title

123

Bad Boy 031-0017-01

ZT Steering Arm Assembly, Left Hand

$166.99

$

Usually ships in 4-7 days

0

124

Bad Boy 031-0018-01

ZT Steering Arm Assembly-Right Hand

$166.99

$

Usually ships in 4-7 days

0

137

Bad Boy 035-5450-00

Push Rod-Right

$36.99

$

Usually ships in 4-7 days

0

138

Bad Boy 035-5451-00

Push Rod-Left

$45.99

$

Usually ships in 4-7 days

0

123.1

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

123.2

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

123.3

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 4 left!

0

123.4

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

Usually ships in 4-7 days

0

123.5

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

123.6

Bad Boy 031-0017-98

2017 Drive Lever Housing - Left

$33.99

$

Usually ships in 4-7 days

0

123.7

Bad Boy 031-8850-70

ZT Steering Arm-Left

$99.99

$

Usually ships in 4-7 days

0

123.8

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

124.1

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

124.2

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

0

124.3

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 4 left!

0

124.4

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

Usually ships in 4-7 days

0

124.5

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

0

124.6

Bad Boy 031-0018-98

2017 Drive Lever Housing - Right

$24.99

$

Usually ships in 4-7 days

0

124.7

Bad Boy 031-8851-70

ZT Steering Arm-Right

$99.99

$

Usually ships in 4-7 days

0

124.8

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

0

137.1

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

137.2

Bad Boy 035-5450-01

Push Rod RH (Rod Only)

$

$

Currently unavailable

137.3

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

137.4

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

0

138.1

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

0

138.2

Bad Boy 035-5451-01

Push Rod LH (Rod Only)

$

$

Currently unavailable

138.3

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

0

138.4

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

0

123.7.1

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

123.7.2

Bad Boy 018-2020-18

5/16-18 x 1 3/8" Futton Head Torx Drive Bolt

$1.99

$

In Stock, Qty 5

0

123.7.3

Bad Boy 031-8850-02

ZT Direction Steering Arm (Left)

$90.99

$

Usually ships in 4-7 days

0

123.7.4

Bad Boy 031-9020-70

Steering Arm Elbow (Left)

$90.99

$

In Stock, only 2 left!

0

123.7.5

Bad Boy 069-4010-00

Rubber Grip

$8.49

$

In Stock, Qty 17

0

124.7.1

Bad Boy 013-8047-00

5/16-18 NYL INS L/N ZC

$0.99

$

In Stock, only 4 left!

0

124.7.2

Bad Boy 018-2020-18

5/16-18 x 1 3/8" Futton Head Torx Drive Bolt

$1.99

$

In Stock, Qty 5

0

124.7.3

Bad Boy 031-8851-02

ZT Direction Steering Arm (Right)

$90.99

$

Usually ships in 4-7 days

0

124.7.4

Bad Boy 031-9025-70

Steering Arm Elbow (Right)

$90.99

$

Usually ships in 4-7 days

0

124.7.5

Bad Boy 069-4010-00

Rubber Grip

$8.49

$

In Stock, Qty 17

0
