Bad Boy ZT Elite - Bad Boy Zero-Turn Mower (2021) DRIVE ARM SUBASSEMBLIES Parts Lookup with Diagrams

120

Bad Boy 031-0017-01

ZT Steering Arm Assembly, Left Hand

$166.99

$

Usually ships in 4-7 days

121

Bad Boy 031-0018-01

ZT Steering Arm Assembly-Right Hand

$166.99

$

Usually ships in 4-7 days

134

Bad Boy 035-5450-00

Push Rod-Right

$36.99

$

Usually ships in 4-7 days

135

Bad Boy 035-5451-00

Push Rod-Left

$45.99

$

Usually ships in 4-7 days

120.1

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

120.2

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

120.3

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 4 left!

120.4

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

Usually ships in 4-7 days

120.5

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

120.6

Bad Boy 031-0017-98

2017 Drive Lever Housing - Left

$33.99

$

Usually ships in 4-7 days

120.7

Bad Boy 031-8850-70

ZT Steering Arm-Left

$99.99

$

Usually ships in 4-7 days

120.8

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

121.1

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

121.2

Bad Boy 013-9002-00

5/16" Flange Nut

$0.99

$

In Stock, Qty 10

121.3

Bad Boy 018-2050-00

10mm Damper Ball Stud-Steering

$2.49

$

In Stock, only 4 left!

121.4

Bad Boy 019-8027-00

.515 ID Nylon Shoulder Washer

$0.99

$

Usually ships in 4-7 days

121.5

Bad Boy 019-8054-00

.505 Nylon Spacer

$0.99

$

In Stock, Qty 10

121.6

Bad Boy 031-0018-98

2017 Drive Lever Housing - Right

$24.99

$

Usually ships in 4-7 days

121.7

Bad Boy 031-8851-70

ZT Steering Arm-Right

$99.99

$

Usually ships in 4-7 days

121.8

Bad Boy 034-8025-00

Drive Lever Spring

$4.49

$

In Stock, only 2 left!

134.1

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

134.2

Bad Boy 035-5450-00

Push Rod - Right

$36.99

$

Usually ships in 4-7 days

134.3

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

134.4

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

135.1

Bad Boy 013-6051-00

3/8" Fine Threaded Jam Nut

$0.99

$

In Stock, Qty 20+

135.2

Bad Boy 035-5451-00

Push Rod - Left

$45.99

$

Usually ships in 4-7 days

135.3

Bad Boy 048-3000-00

Spherical Rod End - Outlaw

$15.99

$

Usually ships in 4-7 days

135.4

Bad Boy 099-2009-00

Quick Release Ball Joint

$10.99

$

In Stock, only 3 left!

120.7.1

Bad Boy 018-2020-00

5/16-18 X 1/2 HEX WASHER UNSLOT MACHINE SCREW ZINC

$1.99

$

In Stock, Qty 6

120.7.2

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

120.7.3

Bad Boy 031-8850-02

ZT Direction Steering Arm (Left)

$90.99

$

Usually ships in 4-7 days

120.7.4

Bad Boy 031-9020-70

Stering Arm Elbow (Left)

$90.99

$

In Stock, only 2 left!

120.7.5

Bad Boy 069-4007-00

Rubber Grip

$

Currently unavailable 

121.7.1

Bad Boy 018-2020-00

5/16-18 X 1/2 HEX WASHER UNSLOT MACHINE SCREW ZINC

$1.99

$

In Stock, Qty 6

121.7.2

Bad Boy 019-8051-00

5/16 SPLIT LOCKWASHER ZINC

$0.99

$

In Stock, only 4 left!

121.7.3

Bad Boy 031-8851-02

ZT Direction Steering Arm (Right)

$90.99

$

Usually ships in 4-7 days

121.7.4

Bad Boy 031-9025-70

Stering Arm Elbow (Right)

$90.99

$

Usually ships in 4-7 days

121.7.5

Bad Boy 069-4007-00

Rubber Grip

$

Currently unavailable 

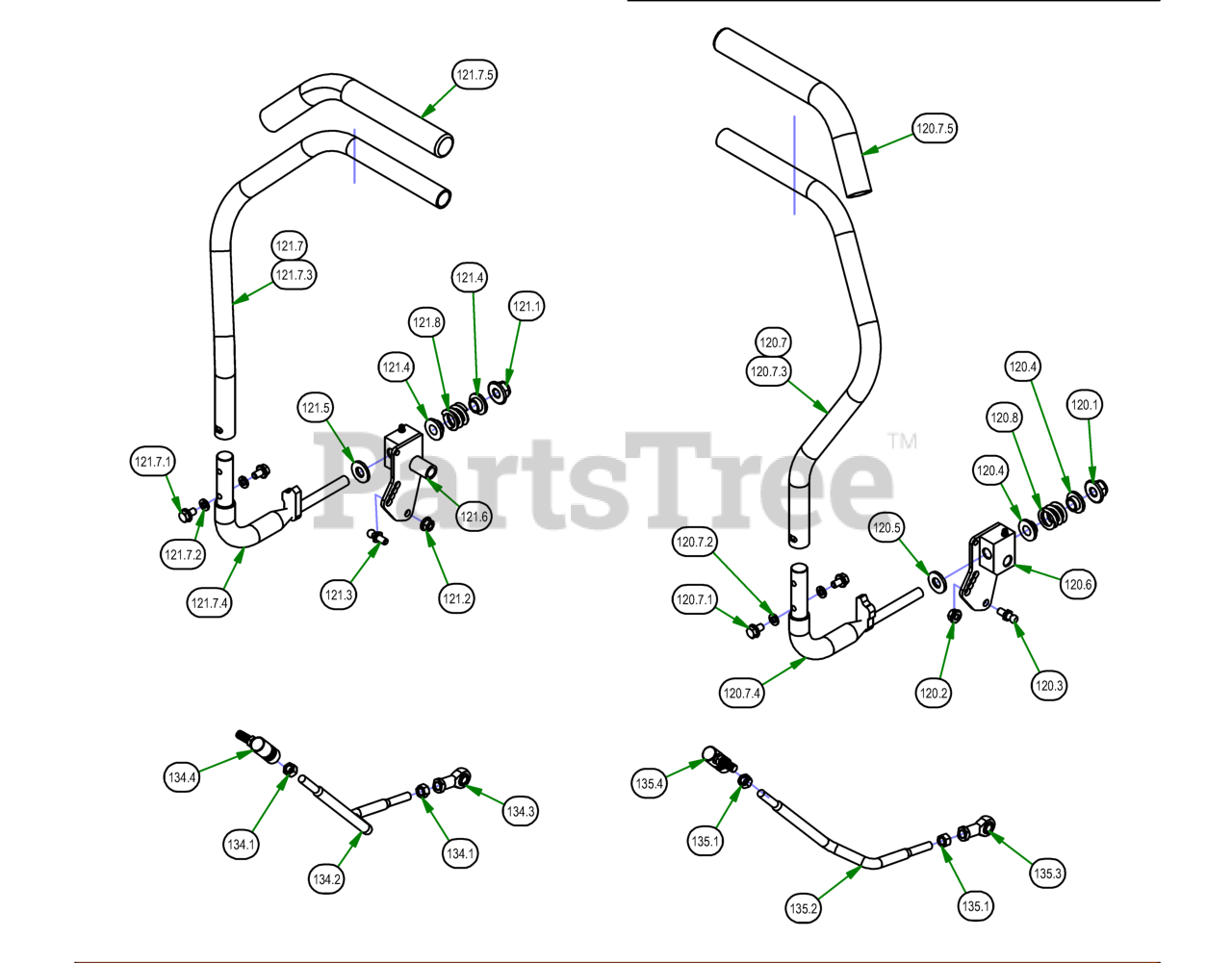

ZT Elite - Bad Boy Zero-Turn Mower (2021) DRIVE ARM SUBASSEMBLIES Parts Diagram

DRIVE ARM SUBASSEMBLIES Parts Diagram
