ZT Elite - Bad Boy Zero-Turn Mower (2020) ENGINE - KOHLER KT740 & KT745 Parts Diagram

Zero-Turn Mower

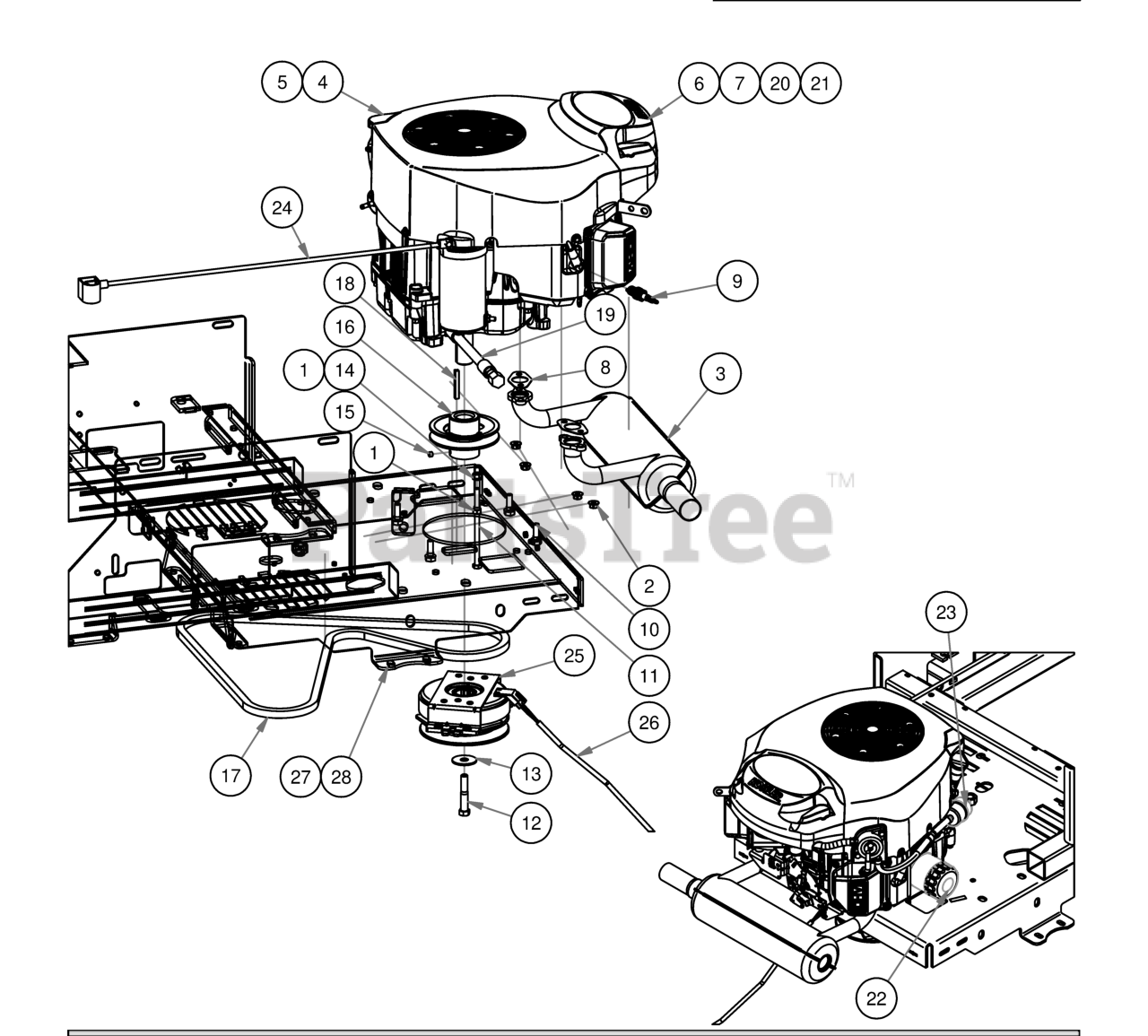

ENGINE - KOHLER KT740 & KT745 Parts Diagram

  • Title

1

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, Qty 5

0

2

Bad Boy 013-8240-00

M8 Flange Nut for Kohler Exhaust

$7.99

$

Usually ships in 4-7 days

0

3

Bad Boy 015-0051-00

Kohler Muffler

$247.99

$

In Stock, only 1 left!

0

4

Bad Boy 015-2020-00

Kohler KT740 Engine

$2278.99

$

Usually ships in 4-7 days

0

5

Bad Boy 015-2026-00

Kohler KT745 Engine

$2734.99

$

Usually ships in 4-7 days

0

6

Bad Boy 015-2026-02

Kohler KT745 Air Pre-Cleaner

$11.99

$

In Stock, Qty 6

0

7

Bad Boy 015-2026-03

Kohler KT745 Air Filter Element

$39.99

$

In Stock, Qty 7

0

8

Bad Boy 015-2751-00

Exhaust Gasket

$6.99

$

In Stock, Qty 5

0

9

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

10

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, Qty 11

0

11

Bad Boy 018-5350-00

5/16-18 x 5-1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 2 left!

0

12

Bad Boy 018-5450-00

7/16"-20 x 2.5" Hex Bolt Gr. 8

$2.49

$

In Stock, only 3 left!

0

13

Bad Boy 019-6020-00

1/2" Belleville Washer

$5.49

$

In Stock, Qty 20+

0

14

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

15

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

16

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

17

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

18

Bad Boy 042-5020-00

1/4 x 2 Square key Stock

$3.49

$

In Stock, only 2 left!

0

19

Bad Boy 051-5401-00

Oil drain Hose

$33.99

$

In Stock, Qty 5

0

20

Bad Boy 063-5002-00

Kohler KT740 Precleaner

$10.99

$

In Stock, Qty 12

0

21

Bad Boy 063-5003-00

Kohler KT740 Air Element

$36.99

$

In Stock, Qty 14

0

22

Bad Boy 063-5004-00

725 & 747 Kohler Oil Filter

$31.99

$

In Stock, Qty 20+

0

23

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 20+

0

24

Bad Boy 064-0030-00

24" Black Ground Cable

$19.99

$

Usually ships in 4-7 days

0

25

Bad Boy 070-0056-00

Clutch

$415.99

$

Usually ships in 4-7 days

0

26

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

27

Bad Boy 070-5420-00

2017 MZ/ZT 54"-60" Frame

$

$

Not available

28

Bad Boy 070-5810-00

2017 MZ/ZT 42"-48" Frame

$

$

Not available
