ZT Elite - Bad Boy Zero-Turn Mower (2018) KAWASAKI FR-730V Parts Diagram

Zero-Turn Mower

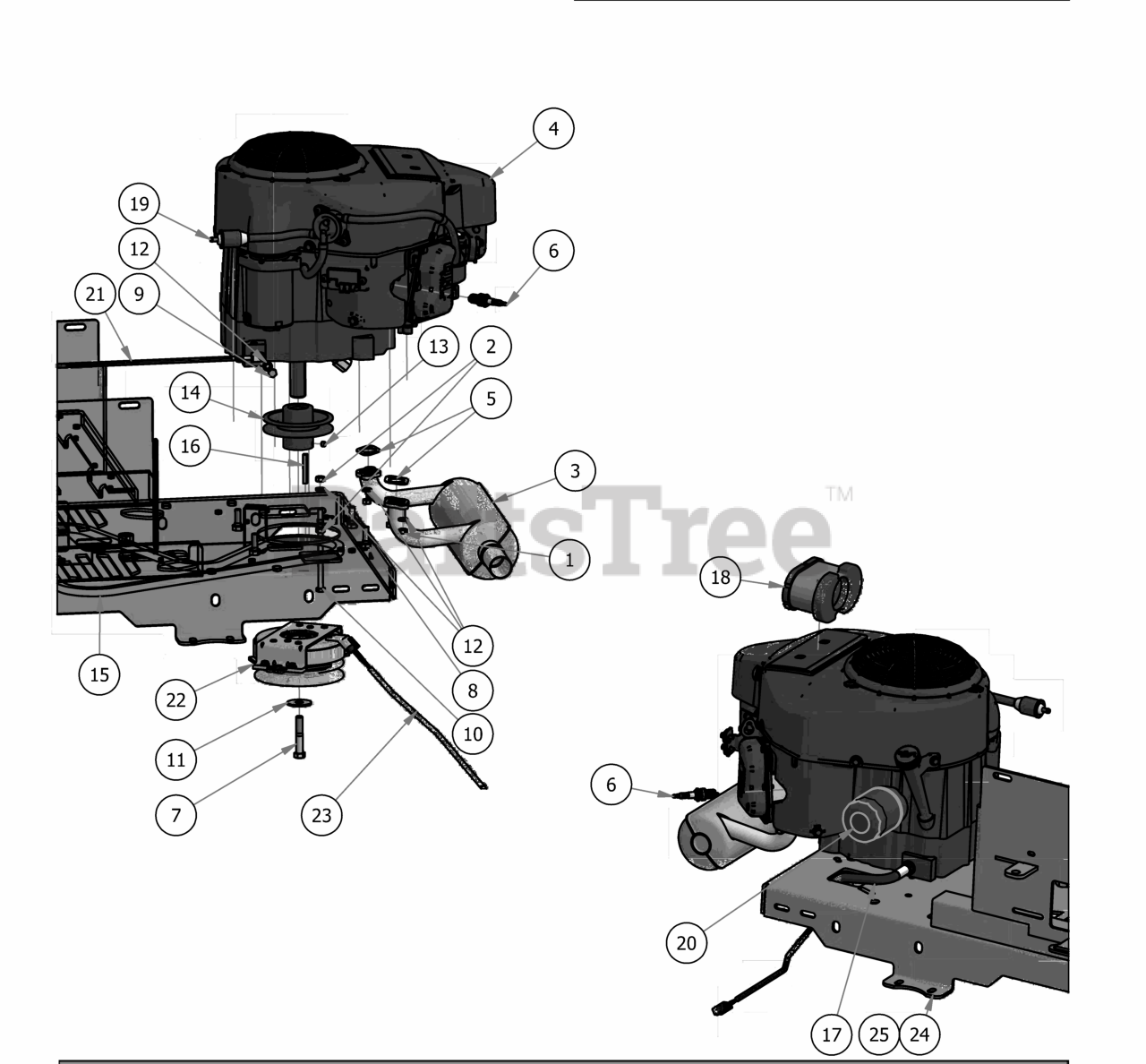

KAWASAKI FR-730V Parts Diagram

  • Title

1

Bad Boy 013-0075-00

M8-1.25 Zinc Nut

$3.49

$

In Stock, only 2 left!

0

2

Bad Boy 013-8043-00

5/16" Nut

$0.99

$

In Stock, Qty 5

0

3

Bad Boy 015-0052-00

Kawasaki Muffler 1251

$247.99

$

Usually ships in 4-7 days

0

4

Bad Boy 015-0090-00

Kawasaki Engine-FR730V

$2621.99

$

Usually ships in 4-7 days

0

5

Bad Boy 015-2709-00

Exhaust Gasket

$8.49

$

In Stock, Qty 5

0

6

Bad Boy 015-8001-00

Spark Plug - Kawasaki

$9.49

$

In Stock, Qty 9

0

7

Bad Boy 018-5450-00

7/16"-20 x 2.5" Hex Bolt Gr. 8

$2.49

$

In Stock, only 3 left!

0

8

Bad Boy 018-1075-00

3/8 x 1 1/8 bolt

$1.99

$

In Stock, Qty 11

0

9

Bad Boy 018-5321-00

M8x1.20x20MM Hex head bolt

$1.99

$

Usually ships in 4-7 days

0

10

Bad Boy 018-5350-00

5/16-18 x 5-1/2 GR 5 Hex Bolt

$2.49

$

In Stock, only 2 left!

0

11

Bad Boy 019-6020-00

1/2" Belleville Washer

$5.49

$

In Stock, Qty 20+

0

12

Bad Boy 019-8051-00

5/16" Lock Washer

$0.99

$

In Stock, only 4 left!

0

13

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 033-5035-00

4 3/4 Motor Pulley

$45.99

$

In Stock, only 3 left!

0

15

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

16

Bad Boy 042-5020-00

1/4 x 2 Square key Stock

$3.49

$

In Stock, only 2 left!

0

17

Bad Boy 051-5404-00

Oil drain Hose

$45.99

$

In Stock, only 3 left!

0

18

Bad Boy 063-2097-00

Kawasaki Air Filter

$27.99

$

In Stock, Qty 11

0

19

Bad Boy 063-6000-00

Universal Inline Fuel Filter

$15.99

$

In Stock, Qty 20+

0

20

Bad Boy 063-8017-00

Kawasaki Oil Filter

$30.99

$

In Stock, Qty 20+

0

21

Bad Boy 064-0030-00

24" Black Ground Cable

$19.99

$

Usually ships in 4-7 days

0

22

Bad Boy 070-0056-00

Clutch

$415.99

$

Usually ships in 4-7 days

0

23

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

24

Bad Boy 070-5420-00

2017 MZ/ZT 54"-60" Frame

$

$

Not available

25

Bad Boy 070-5810-00

2017 MZ/ZT 42"-48" Frame

$

$

Not available
