ZT Elite - Bad Boy Zero-Turn Mower (2018) BATTERY, SEAT, & COVER ASSEMBLY Parts Diagram

Zero-Turn Mower

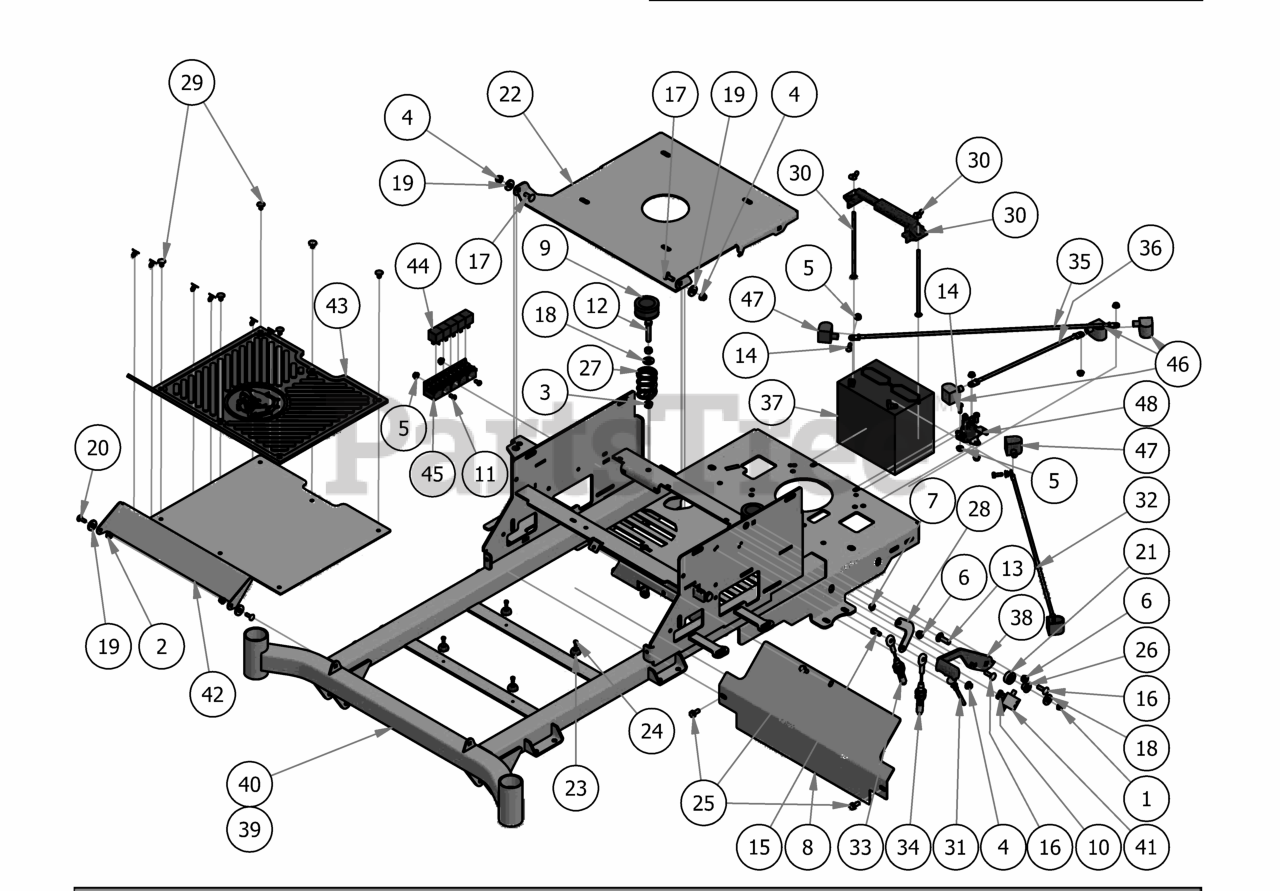

BATTERY, SEAT, & COVER ASSEMBLY Parts Diagram

  • Title

1

Bad Boy 013-0012-00

3/8-16 Centerlock Half Nut

$3.49

$

In Stock, Qty 5

0

2

Bad Boy 013-2050-00

1/4-20 Nylon Insert flange Nut

$1.49

$

In Stock, only 2 left!

0

3

Bad Boy 013-5201-00

3/8" Flange Nut

$1.99

$

In Stock, Qty 20+

0

4

Bad Boy 013-8049-00

5/16-18 Nylong Flange Nut

$0.99

$

In Stock, Qty 17

0

5

Bad Boy 013-9001-00

1/4-20 Hex Flange Nuts Zinc w/Serrations

$0.99

$

In Stock, only 4 left!

0

6

Bad Boy 013-9002-00

5/16-18 Hex Flange Nut

$0.99

$

In Stock, Qty 10

0

7

Bad Boy 013-9005-00

5/16-18 Nylock Jam Nut 1/2 Nut

$3.49

$

Usually ships in 4-7 days

0

8

Bad Boy 014-3417-00

2017 ZT Cooler Cover

$

$

Currently unavailable

9

Bad Boy 014-8047-00

Seat Spring Cap Cover

$2.49

$

In Stock, Qty 6

0

10

Bad Boy 018-1080-00

12-24x 1/2 HWH Bolt

$2.49

$

Usually ships in 4-7 days

0

11

Bad Boy 018-2012-00

1/4" x 1/2" BS C/S 18-8 SS

$0.99

$

In Stock, only 4 left!

0

12

Bad Boy 018-3000-00

3/8'' x2'' Hex Bolt

$1.49

$

In Stock, Qty 8

0

13

Bad Boy 018-5043-00

3/8" x 1 1/4" Carriage Bolt

$1.49

$

In Stock, Qty 10

0

14

Bad Boy 018-8052-00

1/4" x 3/4" Hex Bolt

$0.99

$

In Stock, only 3 left!

0

15

Bad Boy 018-8063-00

5/16" x 3/4" Hex Bolt

$0.99

$

In Stock, only 2 left!

0

16

Bad Boy 018-8065-00

5/16" x 1" Carriage Bolt

$0.99

$

In Stock, Qty 7

0

17

Bad Boy 018-8066-00

5/16" x 7/8" Carriage Bolt

$1.99

$

In Stock, Qty 6

0

18

Bad Boy 019-5029-00

3/8" Flat Washer

$0.99

$

In Stock, Qty 5

0

19

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

In Stock, Qty 11

0

20

Bad Boy 019-8040-00

1/4" x 3/4" Carriage Bolt

$1.99

$

In Stock, only 3 left!

0

21

Bad Boy 025-0001-00

2015 Brake Lever Spacer

$8.49

$

In Stock, Qty 5

0

22

Bad Boy 026-1016-00

Seat Plate 2016

$116.99

$

In Stock, only 2 left!

0

23

Bad Boy 029-4010-00

Button Bumper

$1.49

$

Usually ships in 4-7 days

0

24

Bad Boy 030-3050-00

#10 x 1/2" Self Tapping Screw

$0.99

$

In Stock, Qty 9

0

25

Bad Boy 030-7042-00

5/16 x 3/4 washer head type F screw

$1.49

$

Usually ships in 4-7 days

0

26

Bad Boy 032-5053-00

Bronze Bushing SF-1220-8

$3.49

$

In Stock, only 2 left!

0

27

Bad Boy 034-8045-00

Seat Spring

$21.99

$

In Stock, only 2 left!

0

28

Bad Boy 039-0150-00

Brake Cable Adapter Bracket

$19.99

$

Usually ships in 4-7 days

0

29

Bad Boy 040-6090-00

5/8" Christmas Tree Fastener

$

$

Not available

30

Bad Boy 043-8929-00

Hold Down Assembly

$18.99

$

In Stock, Qty 11

0

31

Bad Boy 054-8017-00

Choke

$27.99

$

In Stock, Qty 20+

0

32

Bad Boy 064-0030-00

24" Black Ground Cable

$19.99

$

Usually ships in 4-7 days

0

33

Bad Boy 064-3050-00

Brake Cable

$54.99

$

In Stock, only 4 left!

0

34

Bad Boy 064-3051-00

Brake Cable

$61.99

$

In Stock, only 4 left!

0

35

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

36

Bad Boy 064-5301-00

12 in red battery cable

$18.99

$

In Stock, only 2 left!

0

37

Bad Boy 068-8049-00

Battery

$

$

Not available

38

Bad Boy 069-1050-00

Brake Handle

$19.99

$

Usually ships in 4-7 days

0

39

Bad Boy 070-5420-00

ZT 54" and 60" Frame

$

$

Not available

40

Bad Boy 070-5810-00

ZT 48" Frame

$

$

Not available

41

Bad Boy 077-8073-00

Safety Switch

$11.99

$

In Stock, Qty 20+

0

42

Bad Boy 079-3417-00

MZ/ZT 2017 Floorboard

$166.99

$

Usually ships in 4-7 days

0

43

Bad Boy 081-4000-00

2017 MZ/ZT Floor Mat

$66.99

$

Usually ships in 4-7 days

0

44

Bad Boy 086-1201-00

Relay

$26.99

$

In Stock, Qty 12

0

45

Bad Boy 086-3050-17

Wire Harness

$341.99

$

Usually ships in 4-7 days

0

46

Bad Boy 103-5300-00

Red Boot

$6.49

$

Usually ships in 4-7 days

0

47

Bad Boy 103-5400-00

Black Boot For Ground Cable

$4.99

$

Usually ships in 4-7 days

0

48

Bad Boy 108-0001-00

Solenoid

$31.99

$

In Stock, Qty 12

0
