ZT Avenger - Bad Boy Zero-Turn Mower (2025) LOWER FRAME Parts Diagram

Zero-Turn Mower

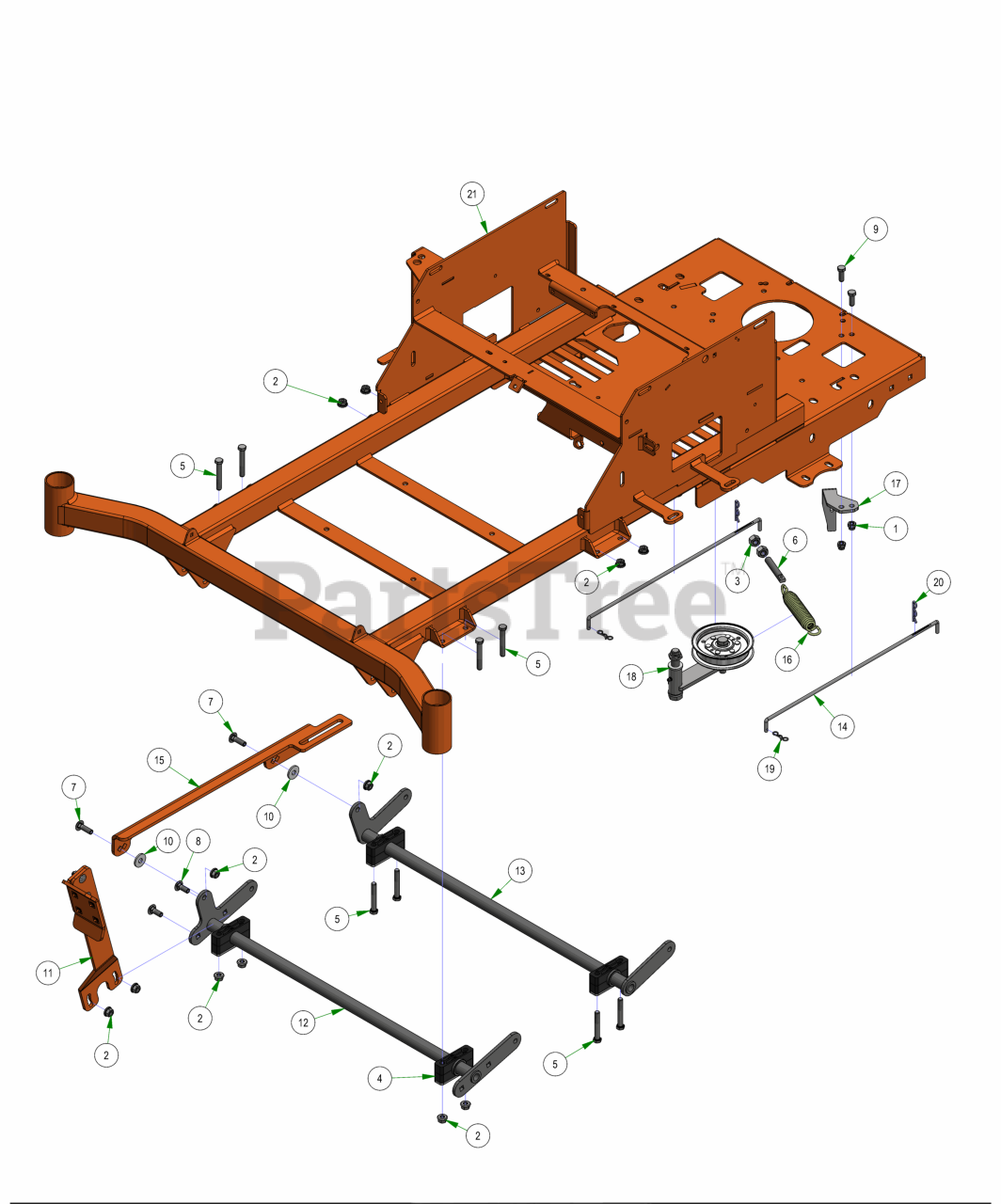

LOWER FRAME Parts Diagram

  • Title

1

Bad Boy 013-5041-00

3/8-16 NYLON INSERT LOCKNUT ZINC

$0.99

$

In Stock, only 2 left!

0

2

Bad Boy 013-5202-00

3/8-16 NYLON INSERT FLANGE LOCKNUT (GR.F) ZINC

$1.99

$

In Stock, Qty 20+

0

3

Bad Boy 013-7018-00

1/2-13 HEX NUT ZINC

$0.99

$

In Stock, Qty 6

0

4

Bad Boy 017-9076-00

Pillow Block Kit

$24.99

$

Usually ships in 4-7 days

0

5

Bad Boy 018-0028-00

3/8-16 X 2-1/2 HEX CAP SCREW (GR.5) ZINC

$4.99

$

Usually ships in 4-7 days

0

6

Bad Boy 018-2004-50

All Thread

$13.99

$

In Stock, Qty 5

0

7

Bad Boy 018-5043-00

3/8-16 X 1-1/4 CARRIAGE BOLT ZINC

$1.49

$

In Stock, Qty 10

0

8

Bad Boy 018-5044-00

3/8-16 X 1 CARRIAGE BOLT (GR.5) ZINC

$0.99

$

Usually ships in 4-7 days

0

9

Bad Boy 018-6049-00

3/8-16 X 1 GR 5 Hex Bolts Zinc

$0.99

$

In Stock, Qty 13

0

10

Bad Boy 019-2073-00

.390 ID X 1.12 OD X .125 THK FLAT WASHER NYLON

$1.99

$

In Stock, only 3 left!

0

11

Bad Boy 026-0019-01

Foot Pedal Assembly

$99.99

$

Usually ships in 4-7 days

0

12

Bad Boy 028-0002-00

Actuator Bar Front- 2017 MZ/ZT

$83.99

$

Usually ships in 4-7 days

0

13

Bad Boy 028-0003-00

Actuator Bar Rear- 2017 MZ/ZT

$83.99

$

Usually ships in 4-7 days

0

14

Bad Boy 028-0070-00

Neutral Rod

$13.99

$

Usually ships in 4-7 days

0

15

Bad Boy 031-0510-00

2017 MZ/ZT Actuator Linkage

$49.99

$

Usually ships in 4-7 days

0

16

Bad Boy 034-2020-00

Deck Idler Spring

$18.99

$

In Stock, Qty 20+

0

17

Bad Boy 039-0267-00

2025 ZT Clutch Bracket

$22.99

$

Usually ships in 0 days

0

18

Bad Boy 039-5944-01

ZT Pump Idler

$66.99

$

In Stock, only 2 left!

0

19

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

20

Bad Boy 044-2008-00

Neutral Rod Clip

$1.49

$

In Stock, only 2 left!

0

21

Bad Boy 070-2501-00

2025 MZ-Avenger 54-60 Frame

$1025.99

$

Usually ships in 0 days

0
