ZT Avenger - Bad Boy Zero-Turn Mower (2024) ENGINE - KOHLER Parts Diagram

Zero-Turn Mower

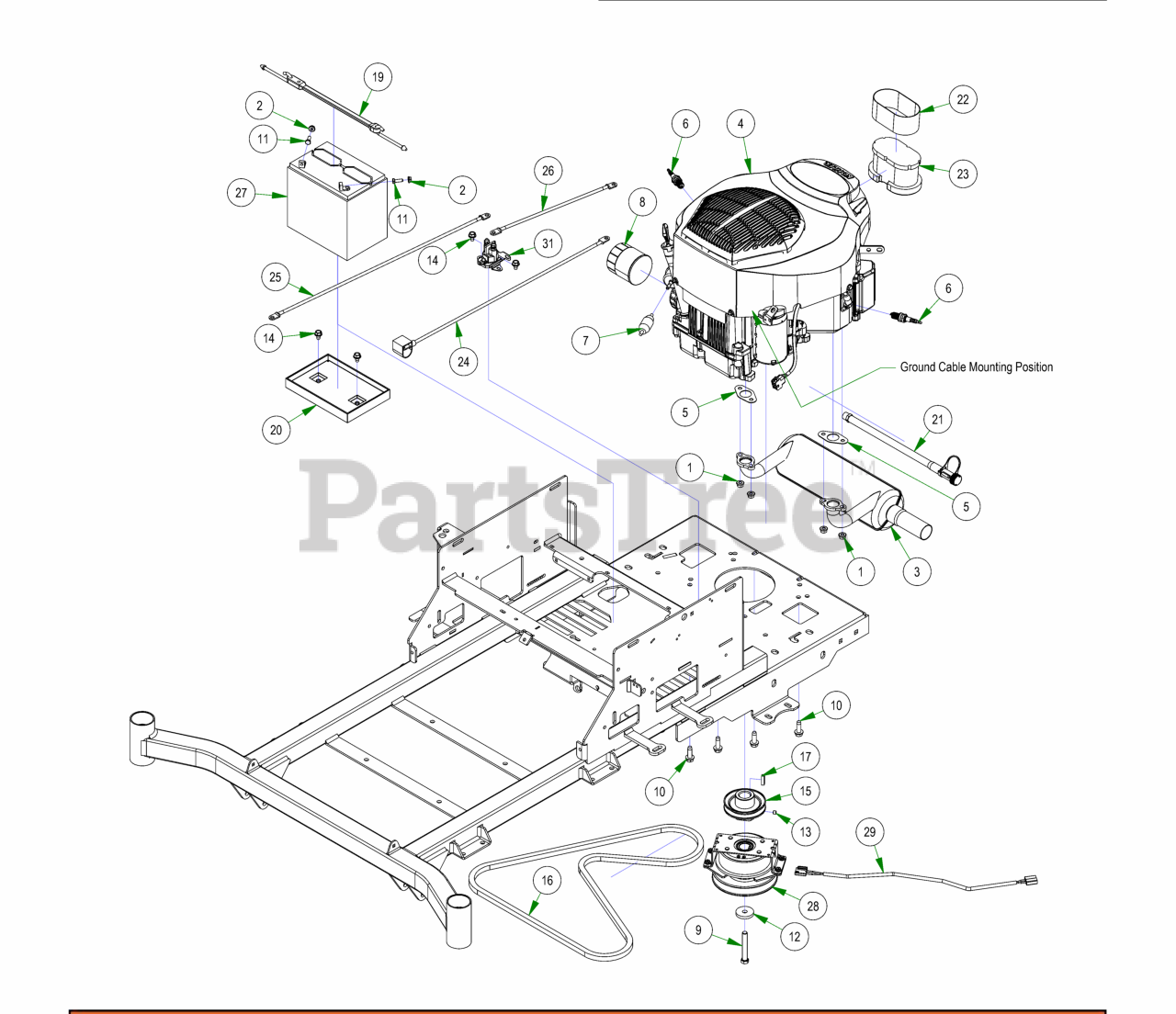

ENGINE - KOHLER Parts Diagram

  • Title

1

Bad Boy 013-8240-00

M8 Nut Connects the 015-1012-00 and the 015-8240-00

$7.99

$

Usually ships in 4-7 days

0

2

Bad Boy 013-9001-00

1/4-20 HEX SERRATED FLANGE NUT HARD/ZINC

$0.99

$

In Stock, only 4 left!

0

3

Bad Boy 015-0051-00

Kohler Muffler

$247.99

$

In Stock, only 2 left!

0

4

Bad Boy 015-2017-00

KT745 Kohler Engine

$2735.99

$

Usually ships in 4-7 days

0

5

Bad Boy 015-2751-00

Exhaust Gasket

$6.99

$

In Stock, only 3 left!

0

6

Bad Boy 015-8000-00

Spark Plug

$14.99

$

In Stock, Qty 17

0

7

Bad Boy 063-5001-00

25/26 HP Kohler Fuel Filter

$20.99

$

In Stock, Qty 8

0

8

Bad Boy 063-5004-00

25 HP Kohler Oil Filter ZT?MZ

$31.99

$

In Stock, Qty 20+

0

9

Bad Boy 018-0007-21

7/16-20x3” Hex Bolt GR 8 W/ Patch

$3.49

$

Usually ships in 4-7 days

0

10

Bad Boy 018-1075-00

3/8-16 X 1-1/8 HEX WASHER UNSLOT SERRATED (TRI-LOB) TRS ZINC YELLOW

$1.99

$

In Stock, Qty 11

0

11

Bad Boy 018-8052-00

1/4-20 X 3/4 HEX CAP SCREW (GR.5) ZINC

$0.99

$

In Stock, only 3 left!

0

12

Bad Boy 019-0010-00

CLUTCH WASHER

$6.49

$

In Stock, only 4 left!

0

13

Bad Boy 030-0050-00

5/16-24 X 1/4 SOCKET SET SCREW (CUP PT) PLAIN

$1.99

$

In Stock, Qty 20+

0

14

Bad Boy 030-7044-00

5/16-18 X 1/2 HWH unslot (F) tcs zinc

$1.49

$

Usually ships in 4-7 days

0

15

Bad Boy 033-2010-00

3-3/4" Motor Pulley

$33.99

$

In Stock, only 4 left!

0

16

Bad Boy 041-6400-00

Pump Belt

$62.99

$

In Stock, Qty 20+

0

17

Bad Boy 042-6030-00

1/4 X 1 SQ MACHINERY KEY 1018 STL PLN

$4.99

$

In Stock, Qty 20+

0

18

Bad Boy 043-8930-98

2023 Battery Hold Down Assembly

$28.99

$

In Stock, only 2 left!

0

19

Bad Boy 043-8930-00

2023 Rubber Battery Hold Down Strap

$22.99

$

In Stock, only 4 left!

0

20

Bad Boy 043-8931-00

Battery Tray

$21.99

$

Usually ships in 4-7 days

0

21

Bad Boy 051-5401-00

Kohler Oil Drain

$33.99

$

In Stock, only 4 left!

0

22

Bad Boy 063-5002-00

25/26 HP Koh Precleaner ZT/MZ

$10.99

$

In Stock, Qty 12

0

23

Bad Boy 063-5003-00

25/26 HP Koh Air Filter ZT/MZ

$36.99

$

In Stock, Qty 14

0

24

Bad Boy 064-0030-00

24 inch Black Cable – MZ/ZT

$19.99

$

Usually ships in 4-7 days

0

25

Bad Boy 064-5300-00

24" Red Battery Cable

$23.99

$

In Stock, Qty 5

0

26

Bad Boy 064-5301-00

12 in red battery cable

$18.99

$

In Stock, only 2 left!

0

27

Bad Boy 068-8049-00

SP-35 Battery

$

$

Not available

28

Bad Boy 070-0055-00

Clutch

$319.99

$

Usually ships in 4-7 days

0

29

Bad Boy 070-2000-00

Clutch Pigtail

$22.99

$

In Stock, Qty 20+

0

30

Bad Boy 070-2401-00

2024 MZ-Avenger 54-60 Frame

$

$

Currently unavailable

31

Bad Boy 108-0001-00

Solenoid

$31.99

$

In Stock, Qty 10

0
